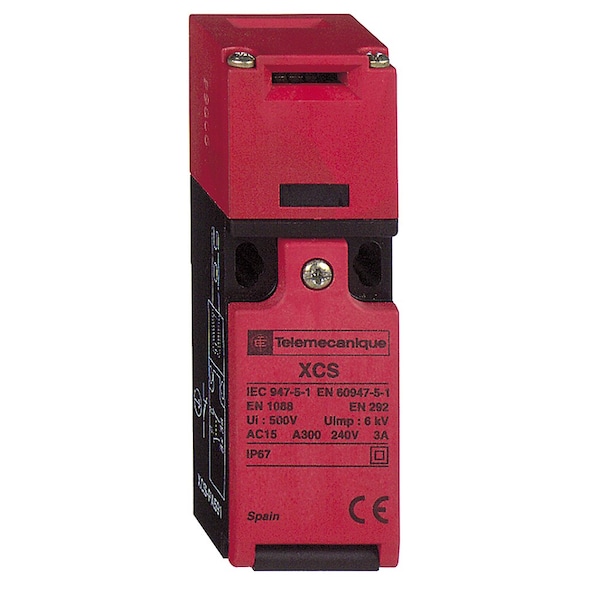

Interruptor de seguridad de plástico con fusible XCSPA - 2 NC + 1 N, 2NC/1NO.
| Item | Plastic safety switch XCSPA - 2 NC + 1 N |
|---|---|
| Protection Method | Fusible |
| IP Rating | IP67 |
| Contact Form | 2NC/1NO |
| Amps AC | 1.5 A @ 240V AC, 0.55 A @ 125V DC, 0.1 A @ 250V DC |
| Material of Construction | Polyamide |
| Height | 94 mm |
| Depth | 30 mm |
| Series | XCSPA |
| Operating Temp. Range | -25 to 70°C |
| Standards | CSA C22.2 No 14, EN/IEC 60947-5-1, UL 508, EN 1088/ISO 14119, EN/ISO 12100, EN/IEC 60204-1 |
| Width | 30 mm |
| Weight | 0.11 kg |
| Features | Compact, Mercury Free |
| Electrical Connection | Terminal |
| Number Of Poles | 3 |
| Package Quantity | 1 |
