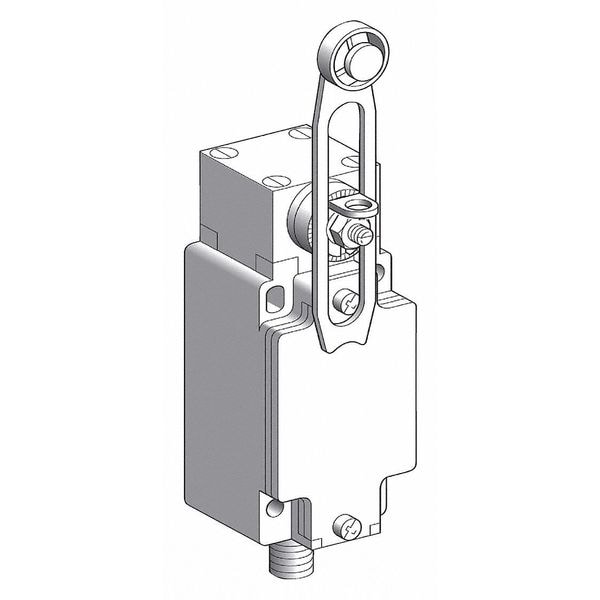

Interruptor de límite de servicio pesado, palanca de rodillo ajustable, rotativo, 1 contacto normalmente cerrado/1 contacto normalmente abierto, 4 amperios a 240 voltios de corriente alterna.
| Item | Heavy Duty Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Rotary |
| Actuator Style - Limit Switch | Adjustable Roller Lever, Rotary |
| Contact Form- Switches | 1NC/1NO |
| Actuator Location - Limit Switch | Side |
| AC Contact Rating - Limit Switch | 4 A @ 240 V |
| DC Contact Rating - Limit Switch | 4 A @ 240 V |
| Body Style - Limit Switch | Standard |
| Mounting - Limit Switch | Surface |
| Basic Actuator Style (Limit Switch) | Rotary |
| Standards | CE, CSA, UL |
| Operating Temp. Range | -13 to 158 deg F |
| AC Contact Rating | 4 A @ 240 V |
| Body Width - Limit Switch | 1.57 in |
| NEMA Rating | 1, 12, 13, 2, 4 |
| Electrical Connection | M12 5-Pin Connector |
| Actuator Location | Side |
| Actuator Length | 1.57" to 3.35" |
| Height | 4.41 in |
| Mounting Hole Pattern - Limit Switch | 4 Hole (Rectangular) |
| DC Contact Rating | 4 A @ 240 V |
| Actuator Length - Limit Switch | 1.57 in to 3.35 in |
| Arm Material | Zinc |
| Movement | CCW, CW |
| Limit Switch Style | Heavy Duty Limit Switch |
| IP Rating | 66 |
| Wiring Entry | Connector |
| Stem Thread - Limit Switch | No Stem |
| Series | XCKJ |
| Actuator Style (Limit Switch) | Rotary, Adjustable Roller Lever |
| Mounting Hole Spacing - Limit Switch | 2.36 in x 1.18 in |
| Roller Dia. | 3/4 in |
| Body Material | Zinc |
| Width | 1.57 in |
| Mounting Hole - Limit Switch | (4) 0.21 in dia |
| Actuator Style | Adjustable Roller Lever |
| Contact Form | 1NC, 1NO |
| Boot Sealed Actuator - Limit Switch | No |
| Voltage Rating | 240VAC/DC |
| Amps | 4 |
| Actuator Location (Limit Switch) | Side |
| Operating Force | 2.21 in-lb |
| Roller Width | 0.22 in |
| Boot Sealed Actuator (Limit Switch) | No |
| Body Height - Limit Switch | 4.01 in |
| Contact Form - Limit Switch | 1NO, 1NC |
| Travel | Total Travel 90 Degrees |
| Roller Material | Thermoplastic |
| Body Style (Limit Switch) | Standard |
| Body Depth - Limit Switch | 2.36 in |
| Depth | 1.73 in |
| Certification | CCC || CSA || UL |
| Special Features | lateral approach, 1 or 2 programmable direction |
| Head Material | zamak |
| Short Circuit Protection | 4 A cartridge fuse gG |
| Head Type | rotary head |
| Contact Action | snap action |
| Min. Actuation Velocity Horizontal | 1.5 m/s |
| Shock Resistance | 50 gn 11 ms IEC 60068-2-27 |
| Vibration Resistance | 25 gn 10-500 Hz)IEC 60068-2-6 |
| Weight | 0.485 kg |
| Electrical Durability | 5000000 cycles, DC-13, inductive, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C |
| Mechanical Durability | 30,000,000 cycle |
| Actuation Type | by 30° cam |
| Body Height | 4.01 in |
| Directional Movement | CW, CCW |
| Mounting Hole Horizontal Center to Center Distance | 30 mm |
| Wireless Network Interface | Not Applicable |
| Resistance Properties | Shock Resistant, Vibration Resistant |
| Boot Sealed Actuator | No Boot Included |
| Overall Height | 3-1/2 in |
| Body Width | 1.57 in |
| NEMA Enclosure Rating | 4, 13, 1, 12, 2 |
| Body Depth | 1.73 in |
| Mounting Hole Diameter | 0.21 in |
| Operating Torque - Maximum | 2.21 in-lb |
| Operating Temperature - Maximum | 158 deg F |
| Operating Temperature - Minimum | -13 deg F |
| Total Travel | 90 Degrees |
| Roller Diameter | 3/4 in |
| Mounting Style | Surface |
| Number of Mounting Holes | 4 |
| Manufacturer Warranty Length | 18 mo |
| Mounting Hole Vertical Center to Center Distance | 60 mm |
| Overall Depth | 1.73 in |
| Overall Width | 1.57 in |
| Number Of Poles | 2 |
| Type Of Operator | spring return roller lever thermoplastic variable length |
| Package Quantity | 1 |
