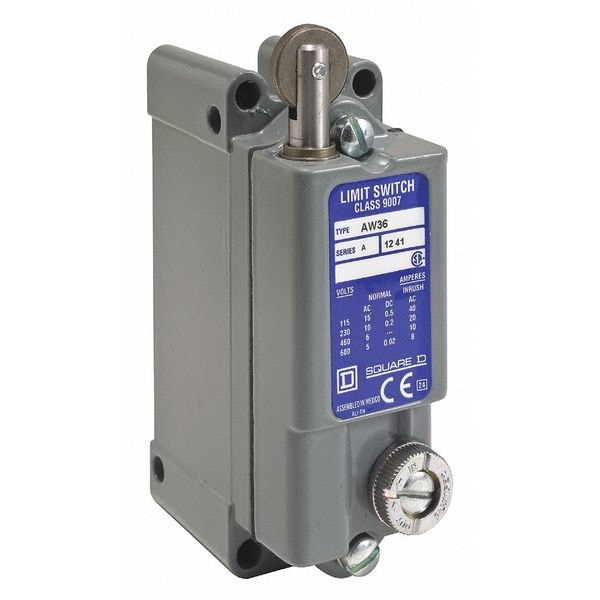

Interruptor de límite de servicio pesado, émbolo, rodillo, 1NC/1NO, 15A @ 600V AC, Ubicación del actuador: Superior.
| Item | Heavy Duty Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Plunger |
| Actuator Style - Limit Switch | Plunger, Roller |
| Contact Form- Switches | 1NC/1NO |
| Actuator Location - Limit Switch | Top |
| AC Contact Rating - Limit Switch | 15 A @ 600 V |
| DC Contact Rating - Limit Switch | 15 A @ 600 V |
| Body Style - Limit Switch | Standard |
| Mounting - Limit Switch | Surface |
| Contact Form | 1NC, 1NO |
| Stem Thread - Limit Switch | No Stem |
| Body Width - Limit Switch | 2.53 in |
| Boot Sealed Actuator - Limit Switch | No |
| Operating Temp. Range | 0 to 185 deg F |
| Travel | 0.25 in |
| IP Rating | 65 |
| Actuator Style | Plunger |
| Body Style (Limit Switch) | Standard |
| Body Height - Limit Switch | 3.68 in |
| Movement | Horizontal |
| Actuator Location | Top |
| Actuator Location (Limit Switch) | Top |
| Operating Force | 3.0 lb |
| Series | 9007AW |
| Electrical Connection | Screw Terminals |
| Mounting Hole Pattern - Limit Switch | 4 Hole (Rectangular) |
| AC Contact Rating | 15 A @ 600 V |
| Boot Sealed Actuator (Limit Switch) | No |
| Body Depth - Limit Switch | 1.44 in |
| Basic Actuator Style (Limit Switch) | Plunger |
| Height | 3.91 in |
| Roller Width | 0.13 in |
| Roller Dia. | 0.63 in |
| Actuator Length - Limit Switch | 1/2 in |
| Depth | 1.4 in |
| Standards | CE, CSA, UL |
| Actuator Length | 1/2 in |
| Contact Form - Limit Switch | 1NO, 1NC |
| Amps | 15 |
| Voltage Rating | 600VAC/DC |
| Actuator Style (Limit Switch) | Plunger, Roller |
| Roller Material | Steel |
| DC Contact Rating | 15 A @ 600 V |
| Width | 3 in |
| NEMA Rating | 1, 12, 13, 2, 4 |
| Body Material | Zinc |
| Limit Switch Style | Heavy Duty Limit Switch |
| Wiring Entry | 1/2 in NPT |
| Contact Material | silver contacts |
| Differential Travel | 1.3 in |
| Special Features | traverse approach, 2 directions |
| Head Type | plunger head |
| Contact Action | snap action |
| Weight | 1.25 lb |
| Actuation Type | by 30° cam |
| Roller Diameter | 0.63 in |
| Pretravel | 0.09 in |
| Operating Force - Maximum | 3 lbf |
| Overall Height | 3.68 in |
| Body Height | 3.68 in |
| Boot Sealed Actuator | No Boot Included |
| Plunger Adjustability | Adjustable |
| Body Depth | 1.44 in |
| Mounting Hole Diameter | 0.2 in |
| Mounting Hole Horizontal Center to Center Distance | 27 mm |
| Operating Temperature - Minimum | 0 deg F |
| Manufacturer Warranty Length | 18 mo |
| NEMA Enclosure Rating | 4, 13, 1, 12, 2 |
| Overall Width | 2.53 in |
| Number of Mounting Holes | 6 |
| Mounting Style | Surface |
| Body Width | 2.53 in |
| Overall Depth | 1.44 in |
| Mounting Hole Vertical Center to Center Distance | 89 mm |
| Body Configuration | Plug-In |
| Operating Torque - Maximum | Not Applicable |
| Wireless Network Interface | Not Applicable |
| Directional Movement | Linear |
| Total Travel | 0.25 in |
| Operating Temperature - Maximum | 185 deg F |
| Number Of Poles | 1 |
| Type Of Operator | spring steel |
| Package Quantity | 1 |
