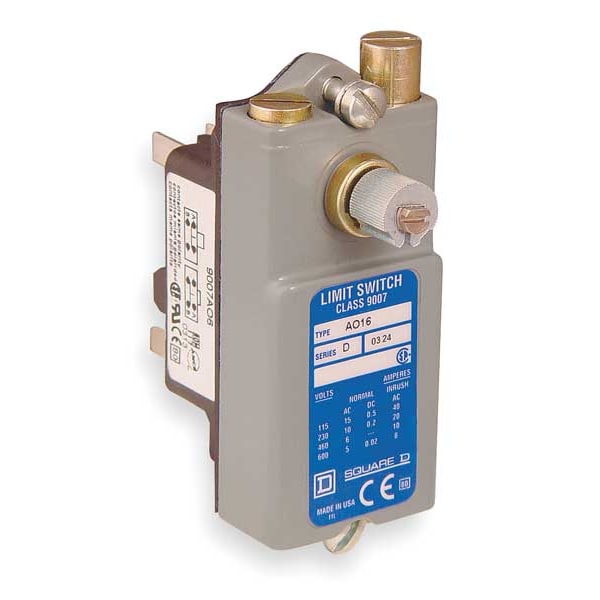

Interruptor de límite, sin palanca, rotativo, 1NC/1NO, 15A @ 600V CA.
| Item | Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Rotary |
| Actuator Style - Limit Switch | No Lever, Rotary |
| Contact Form- Switches | 1NC/1NO |
| AC Contact Rating - Limit Switch | 15 A @ 600 V |
| Mounting - Limit Switch | open type |
| Series | 9007AW |
| Operating Temp. | -20 Degrees to 185 Degrees F |
| Actuator Style | Rotary Head, No Lever |
| AC Contact Rating | 15 A @ 600 V |
| Movement | CW, CCW |
| Contact Form | 1NC, 1NO |
| Travel | Total Travel 90 Degrees |
| NEMA Rating | 1, 2, 4, 12, 13 |
| Actuator Location | Side |
| For Use With | Type 9007 C Compact Limit Switches |
| Standards | CE, CSA, UL |
| DC Contact Rating | 15 A @ 600 V |
| Height | 3.91 in |
| Amps | 15 |
| Width | 2.4 in |
| Operating Force | 2.75 in.-lb. |
| Electrical Connection | Screw Terminals |
| Voltage Rating | 600VAC/DC |
| Wiring Entry | Open Style |
| Depth | 1.4 in |
| IP Rating | 65 |
| Operating Temp. Range | -65 to 185 deg F |
| Special Features | lateral approach, 1 direction programmable |
| Body Material | Zinc |
| Body Depth - Limit Switch | 1.38 in |
| Body Height - Limit Switch | 3.47 in |
| Body Style (Limit Switch) | plug-in body |
| Contact Material | silver contacts |
| Weight | 0.1 lb |
| Head Type | rotary head |
| Actuation Type | from left convertible to right || CCW convertible to CW |
| Min. Actuation Velocity Horizontal | 130 ft/min with 30° cam angle, levers only || 90 ft/min with 45° cam angle, levers only |
| Contact Action | snap action |
| Manufacturer Warranty Length | 18 mo |
| Overall Depth | 1.38 in |
| Mounting Hole Horizontal Center to Center Distance | 27 mm |
| Body Configuration | Plug-In |
| Operating Temperature - Minimum | 0 deg F |
| Number of Mounting Holes | 2 |
| NEMA Enclosure Rating | 1 |
| Lamp Type | No Lamp Module Included |
| Mounting Hole Diameter | 0.2 in |
| Overall Width | 2.38 in |
| Overall Height | 3.47 in |
| Mounting Hole Vertical Center to Center Distance | 89 mm |
| Operating Temperature - Maximum | 185 deg F |
| Number Of Poles | 1 |
| Type Of Operator | spring return without operating lever cast zinc |
| Package Quantity | 1 |
