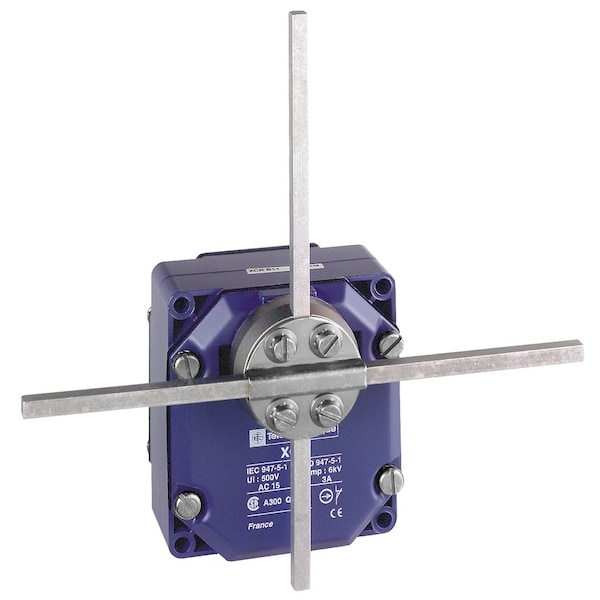

Interruptor de límite, palanca de varilla, rotativo, 2x(1NC+NO), ubicación del actuador: lado
| Item | Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Rotary |
| Actuator Style - Limit Switch | Rod Lever, Rotary |
| Contact Form- Switches | 2x(1NC+NO) |
| Actuator Location - Limit Switch | Side |
| Standards | IEC 60204-1 || IEC 60947-5-1 || CSA C22.2 No 14 || EN 60204-1 || EN 60947-5-1 || NF C 79-130 |
| Series | special format; XCR |
| Width | 85 mm |
| Certification | CCC || CSA |
| Body Style (Limit Switch) | fixed |
| Body Depth - Limit Switch | 75 mm |
| Electrical Connection | screw-clamp terminals 1 x 0.5...2 x 2.5 mm² |
| IP Rating | IP54 conforming to IEC 60529 |
| Special Features | lateral approach, 2 directions |
| Body Height - Limit Switch | 95 mm |
| Body Material | zinc alloy; metal |
| Movement | rotary |
| Operating Temp. Range | -25-70 °C |
| Weight | 1.135 kg |
| Vibration Resistance | 9 gn 10-500 Hz)IEC 60068-2-6 |
| Mechanical Durability | 10,000,000 cycle |
| Contact Action | slow-break, break before make |
| Electrical Durability | 5000000 cycles, DC-13, inductive, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 24 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 48 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C |
| Shock Resistance | 68 gn IEC 60068-2-27 |
| Head Type | rotary head |
| Short Circuit Protection | 10 A cartridge fuse gG |
| Min. Actuation Velocity Horizontal | 1.5 m/s |
| Actuation Type | by any moving part |
| Number Of Poles | 4 |
| Type Of Operator | stay put crossed rods lever metal square rod 6 mm |
| Package Quantity | 1 |
