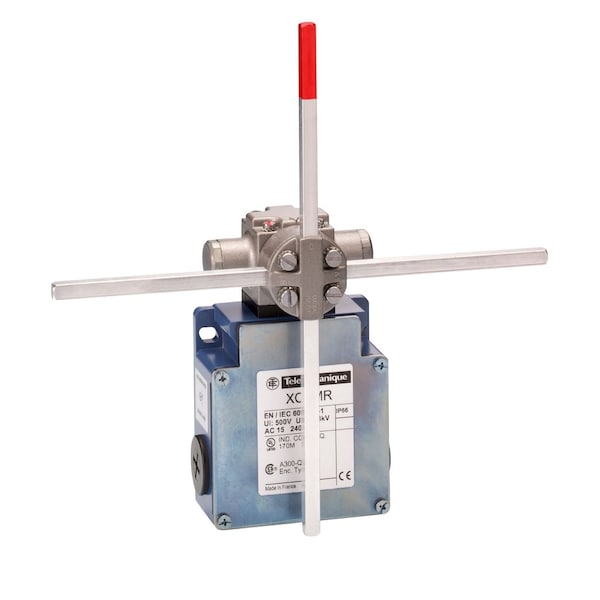

Interruptor de límite, palanca de varilla, rotativo, 2x(2NC), 10A @ 240V CA, Ubicación del actuador: Lateral
| Item | Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Rotary |
| Actuator Style - Limit Switch | Rod Lever, Rotary |
| Contact Form- Switches | 2x(2NC) |
| Actuator Location - Limit Switch | Side |
| AC Contact Rating - Limit Switch | 10 A @ 240 V |
| Amps | 10 |
| Movement | rotary |
| Operating Temp. Range | -40-70 °C |
| Standards | EN/IEC 60947-5-1 || UL 508 || CSA C22.2 No 14 |
| Certification | UL || CCC || CSA || CE |
| Actuator Style | Rod |
| Width | 200 mm |
| Body Style (Limit Switch) | fixed |
| Body Depth - Limit Switch | 59 mm |
| Electrical Connection | screw-clamp terminals 1 x 0.5...2 x 2.5 mm² |
| Body Material | zamak |
| Head Material | zamak |
| Body Height - Limit Switch | 118 mm |
| Series | XCKMR |
| IP Rating | IP66 conforming to EN/IEC 60529 |
| Special Features | lateral approach, 2 directions |
| Weight | 0.55 kg |
| Shock Resistance | 50 gn EN/IEC 60068-2-27 |
| Min. Actuation Velocity Horizontal | 1.5 m/s actuation point on the rod between 65 and 95 mm |
| Contact Action | slow-break, staggered |
| Mechanical Durability | 2,000,000 cycle |
| Actuation Type | by any moving part |
| Short Circuit Protection | 10 A cartridge fuse gG |
| Vibration Resistance | 25 gn 10-500 Hz)EN/IEC 60068-2-6 |
| Head Type | rotary head |
| Type Of Operator | stay put crossed rods lever metal square rod 6 mm, L = 200 mm |
| Number Of Poles | 4 |
| Total Travel | 180 Degrees |
| Operating Torque - Maximum | 4.43 in-lb |
| Package Quantity | 1 |
