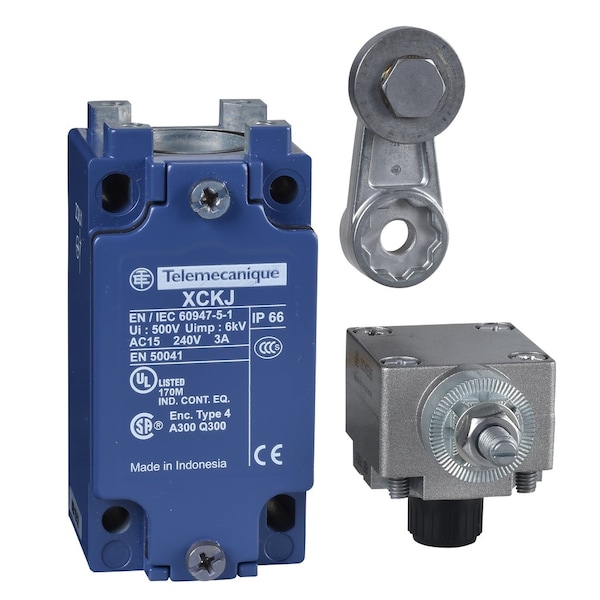

Interruptor de límite, palanca de rodillo, rotativo, 1NC/1NO, 10A @ 240V CA, Ubicación del actuador: Lado
| Item | Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Rotary |
| Actuator Style - Limit Switch | Roller Lever, Rotary |
| Contact Form- Switches | 1NC/1NO |
| Actuator Location - Limit Switch | Side |
| AC Contact Rating - Limit Switch | 10 A @ 240 V |
| Body Depth - Limit Switch | 44 mm |
| Series | XCKJ |
| Special Features | lateral approach, 1 or 2 programmable direction |
| Body Material | zamak |
| Body Style (Limit Switch) | fixed |
| IP Rating | IP66 conforming to IEC 60529 |
| Operating Temp. Range | -25-70 °C |
| Standards | EN 60947-5-1 || IEC 60204-1 || CENELEC EN 50041 || CSA C22.2 No 14 || UL 508 |
| Movement | rotary |
| Electrical Connection | screw-clamp terminals 1 x 0.5...2 x 2.5 mm² |
| Certification | CCC || CSA || UL |
| Width | 40 mm |
| Head Material | zamak |
| Body Height - Limit Switch | 77 mm |
| Actuation Type | by 30° cam |
| Shock Resistance | 50 gn 11 ms IEC 60068-2-27 |
| Weight | 0.48 kg |
| Vibration Resistance | 25 gn 10-500 Hz)IEC 60068-2-6 |
| Min. Actuation Velocity Horizontal | 1.5 m/s |
| Electrical Durability | 5000000 cycles, DC-13, inductive, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C |
| Mechanical Durability | 30,000,000 cycle |
| Head Type | rotary head |
| Short Circuit Protection | 10 A cartridge fuse gG |
| Contact Action | slow-break, break before make |
| Type Of Operator | spring return roller lever thermoplastic |
| Number Of Poles | 2 |
| Package Quantity | 1 |
