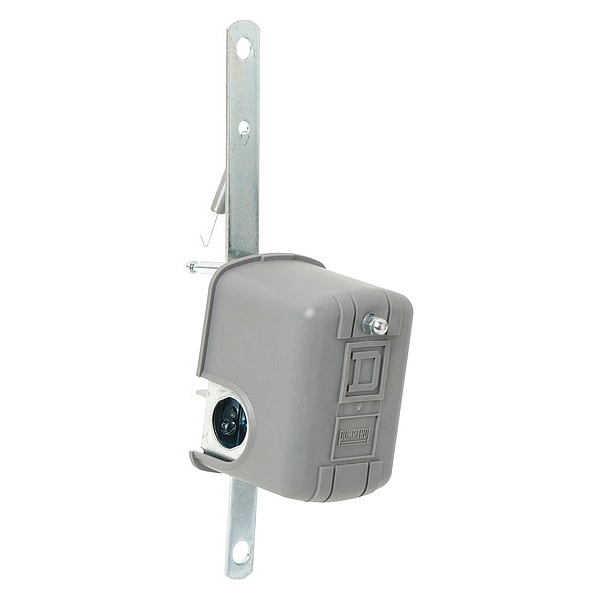

Nivel líquido, tanque abierto vertical, cerrar al subir.
| Item | Open Liquid Level Switch |
|---|---|
| Switch Function | Close On Rise |
| Mounting | Open Tank |
| Float Travel | 1-1/4 in |
| NEMA Rating | 1 |
| VA Rating | 460 V AC |
| Operating Temp. Range | -22 Degrees to 220 Degrees F |
| Overall Length | 4.38 in |
| Float Length | 7 in |
| HP @ 1 Phase - 240V | 3 HP |
| Conduit Size | 1/2 in |
| Height | 4-1/2 in |
| Max. Current | 600 A |
| Float Material | Stainless Steel |
| Max. Voltage | 600 |
| Electrical Connections | Screw Clamp |
| Float Dia. | 7 in |
| HP @ 3 Phase - 240V | 5 HP |
| Width | 2.55 in |
| Float Position | Below |
| Amps | 10 A |
| Contact Form | DPST |
| Standards | CSA, UL Listed |
| HP @ 1 Phase - 120V | 2 HP |
| Body Material | Steel |
| Includes | 1/2 in Conduit Bushing, Special Lockout Lever |
| Product Type | Open Liquid Level Switch |
| Horsepower @ Single Phase - 240V AC | 3 HP |
| Overall Width | 2.55 in |
| Float Diameter | 7 in |
| Electrical Connection | Screw Clamp |
| Current Rating | 10 A |
| Overall Height | 4-1/2 in |
| NEMA Enclosure Rating | 1 |
| Horsepower @ Single Phase - 120V AC | 2 HP |
| Horsepower @ Three Phase - 240V AC | 5 HP |
| Voltage Rating - Maximum | 600 V |
| Package Quantity | 1 |
