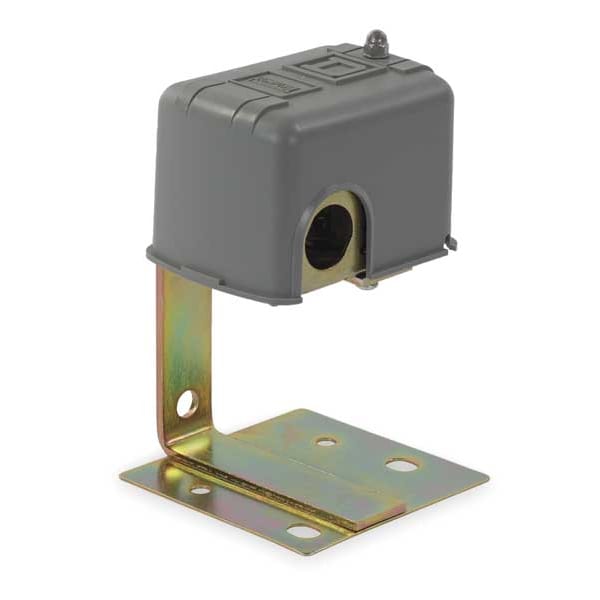

Nivel de líquido, tanque abierto verticalmente, cierra al aumentar.
| Item | Open Liquid Level Switch |
|---|---|
| Switch Function | Close On Rise |
| Mounting | Open Tank |
| Float Travel | 1-1/4 in |
| NEMA Rating | 1 |
| VA Rating | 460VCA |
| Operating Temp. Range | -22 Degrees to 220 Degrees F |
| Overall Length | 4.38 in |
| HP @ 3 Phase - 240V | 5 HP |
| Float Dia. | 7 in |
| Body Material | Polypropylene |
| Electrical Connections | Screw Clamp |
| HP @ 1 Phase - 240V | 3 HP |
| Max. Current | 600 A |
| Features | (2) 0.88 in Cable Entries with 0.84 in Across Flats |
| Height | 4-1/2 in |
| Contact Form | DPST-2NC |
| Standards | CSA File No.LR25490, UL 508, UL E12158 |
| Conduit Size | 2 7/8 in |
| Float Length | 7 in |
| Float Position | Below |
| Float Material | Stainless Steel |
| Max. Voltage | 600 |
| Width | 2.55 in |
| Amps | 10 A |
| HP @ 1 Phase - 120V | 2 HP |
| Enclosure Material | polypropylene or equivalent |
| Float Rod Angle | Vertical |
| Product Type | Open Liquid Level Switch |
| Overall Width | 2.55 in |
| Series | 9036FG |
| Horsepower @ Single Phase - 240V AC | 3 HP |
| Electrical Connection | Screw Clamp |
| Minimum Media Specific Gravity | 0.85 |
| Voltage Rating - Maximum | 575 V |
| Manufacturer Warranty Length | 18 mo |
| Mounting Style | Open Tank Vertical |
| Overall Height | 4-1/2 in |
| Horsepower @ Single Phase - 120V AC | 2 HP |
| NEMA Enclosure Rating | 1 |
| Operating Temperature - Maximum | 220 Degrees F |
| Horsepower @ Three Phase - 240V AC | 5 HP |
| Current Rating | 600 A |
| Operating Temperature - Minimum | -22 Degrees F |
| Float Diameter | 7 in |
| Terminals Description Iso N°1 | line-load-load-line |
| Local Signalling | without |
| Maximum Operating Rate | 60 cyc/mn |
| Electrical Circuit Type | power circuit |
| Materials In Contact With Fluid | aluminium || polystyrene || zinc plated steel or equivalent || nylon |
| Device Short Name | 9036FG |
| Electrical Durability | 100 cycles 60 cyc/mn |
| Terminal Block Type | 4 terminals |
| Product Destination | for open tank |
| Mechanical Durability | 300 cycles |
| Controlled Fluid | fresh water specific gravity of 0.85 in or higher || sea water specific gravity of 0.85 in or higher || hydraulic oil specific gravity of 0.85 in or higher || corrosive fluid specific gravity of 0.85 in or higher |
| Kit Composition | rod and float are to be choosen in accessories || float switch |
| Nema Degree Of Protection | NEMA 1 UL 50 |
| Ambient Air Temperature For Operation | -22-220°F |
| Ambient Air Temperature For Storage | -22-220°F |
| Contact Operation | contacts close on liquid rise |
| Motor Power Kw | 1.5 kW 2 hp)115 V AC, 1 phase || 2.2 kW 3 hp)115 V AC, 3 phase || 2.2 kW 3 hp)230 V AC, 1 phase || 3.7 kW 5 hp)230 V AC, 3 phase || 0.75 kW 1 hp)460 V AC, 3 phase || 0.75 kW 1 hp)475 V AC, 3 phase || 0.18 kW 0.25 hp)32 V DC || 0.37 kW 0.5 hp)115 V DC || 0.37 kW 0.5 hp)230 V DC |
| Force Up To Trip | 16 ozf |
| Product Or Component Type | float switch |
| Device Application | open tank pedestal style |
| Device Mounting | pedestal |
| Contacts Type And Composition | Form YY, 2 NC snap action, DPST-DB |
| Product Certifications | CSA file LR25490 || UL listed file E12158 |
| Short-Circuit Protection | 20 A cartridge fuse gG |
| Operating Position | vertical position only |
| [Ui] Rated Insulation Voltage | 575 V UL 508 |
| Cable Entry Number | 2 0.88 in cable entries with 0.84 in across flats UL 508 |
| Product Specific Application | liquid level control |
| Force Down To Trip | 16 ozf |
| Factory Modification | without |
| Float Movement | 4...31 in adjustable |
| Package Quantity | 1 |
