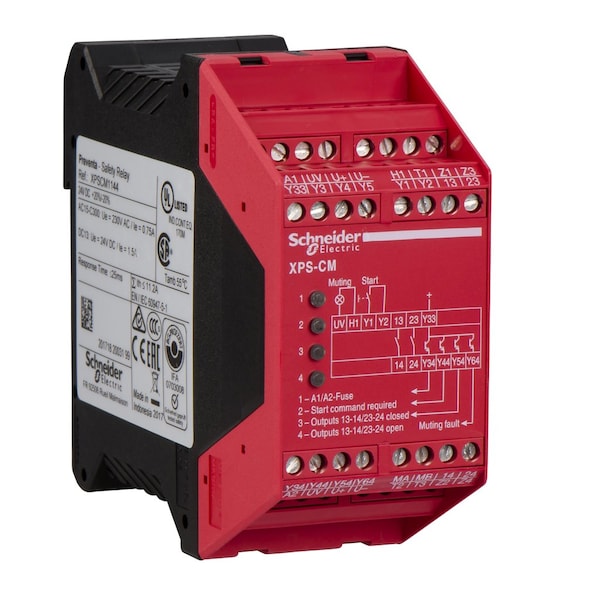

Módulo XPS-CM - sensores fotoeléctricos de haz único - 24 V CC
| Item | Module XPS-CM - single-beam photo-electr |
|---|---|
| Ip Degree of Protection | IP20 IEC 60529 terminals) || IP40 IEC 60529 enclosure) |
| Number of Inputs | 2 MA, MB)muting function || 4 Z1, Z2, Z3, Z4)sensor |
| Ambient Air Temperature For Operation | -10-55°C |
| [Ui] Rated Insulation Voltage | 300 V 2)DIN VDE 0110 parts 1 and 2, 300 V 2)EN/IEC 60947-5-1 |
| Minimum Output Voltage | 17 V relay output |
| Maximum Supply Current For Sensors | 200 mA |
| Maximum Response Time On Input Open | 25 ms |
| Local Signalling | 1 LED electronic internal fuse status, 1 LED restarting, 1 LED safety outputs closed, 1 LED safety outputs open, 1 incandescent lamp muting 4-6.5 W |
| Protection Type | electronic internal fuse |
| Associated Fuse Rating | 4 A gG relay output DIN VDE 0660 part 200, 4 A gG relay output EN/IEC 60947-5-1, 6 A fast blow relay output DIN VDE 0660 part 200, 6 A fast blow relay output EN/IEC 60947-5-1 |
| Output Thermal Current | 5.6 A per relay, 11 A maximum |
| Safety Module Application | for monitoring of single beam photo-electric sensor |
| Safety Module Name | XPSCM |
| Power Consumption In W | 15 W |
| Ambient Air Temperature For Storage | -25-85°C |
| Safety Level | can reach category 2 with the appropriate control system and correctly wired EN/ISO 13849-1, can reach SILCL 1 with the appropriate control system and correctly wired EN/IEC 62061, can reach PL = c with the appropriate control system and correctly wired EN/ISO 13849-1 |
| Sensor Power Supply | U+, U- 24-24 V DC |
| Synchronisation Time Between Inputs | 3 s +/- 20 %) for the activation of the MA/MB muting signal |
| Input Current | 200 mA muting function |
| Function of Module | built-in muting |
| Breaking Capacity | 20 mA 24 V solid state output, 1.5 A 24 V DC-13)50 ms relay output |
| Number of Additional Circuits | 0 |
| Pvc Free | Yes |
| [Us] Rated Supply Voltage | 24 V DC - 20...20 % |
| Input Compatibility | XC limit switch muting function, XU2M18PP340... muting function, XU2S18PP340... (infrared) sensor, XU9M18PP340... muting function |
| Minimum Output Current | 10 mA relay output |
| Input Voltage | 24 V DCsensor || 24 V DC U+, U-)muting function |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV III DIN VDE 0110 parts 1 and 2, 4 kV III EN/IEC 60947-5-1 |
| Muting Maximum Duration | 60 s - 10...30 %) |
| Range of Product | Telemecanique Safety light curtains XUSL |
| Maximum Line Resistance | 10 Ohm sensor power supply |
| Product or Component Type | safety module |
| Output Type | relay 2 NO 13-14, 23-24, volt-free |
| Connections - Terminals | captive screw clamp terminals, 1 x 0.14...1 x 2.5 mm² solid or flexible without cable end, captive screw clamp terminals, 1 x 0.25...1 x 1.5 mm² flexible with cable end, with bezel, captive screw clamp terminals, 1 x 0.25...1 x 2.5 mm² flexible with cable end, without bezel, captive screw clamp terminals, 2 x 0.14...2 x 0.75 mm² solid or flexible without cable end, captive screw clamp terminals, 2 x 0.25...2 x 1 mm² flexible with cable end, without bezel, captive screw clamp terminals, 2 x 0.5...2 x 1.5 mm² flexible with cable end, with double bezel |
| Package Quantity | 1 |
