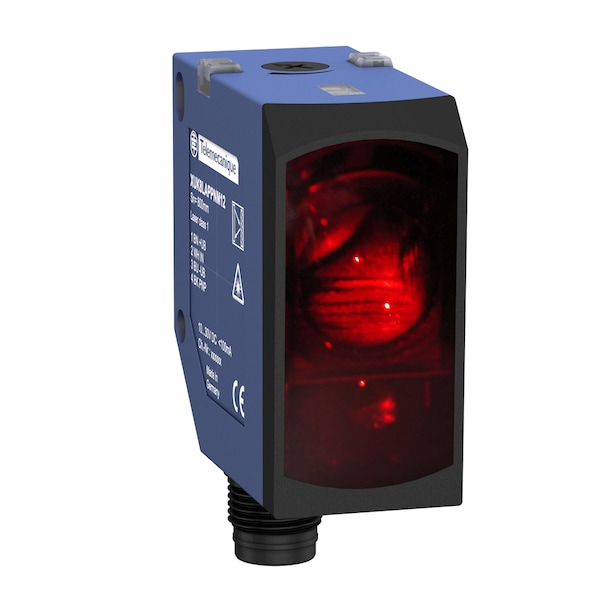

Sensor láser fotoeléctrico -XUK -fondo
| Item | Photo-electric laser sensor -XUK -backgr |
|---|---|
| Height | 50 mm |
| Width | 23 mm |
| Material | Plastic |
| Depth | 50 mm |
| Electrical Connection | 1 male connector M12, 4 pins |
| Current Consumption | <= 30 mA no-load |
| Ambient Air Temperature For Storage | -20-80°C |
| Add On Input | external teach |
| Vibration Resistance | 7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6 |
| Shock Resistance | 30 gn 11 ms) IEC 60068-2-27 |
| Maximum Sensing Distance | 0.8 m diffuse with background suppression |
| Switching Frequency | <= 250 Hz |
| Maximum Delay Recovery | 0.5 msec |
| Type Of Output Signal | discrete |
| Switching Capacity In Ma | <= 100 mA overload and short-circuit protection) |
| Discrete Output Function | 1 NO or 1 NC programmable |
| Ip Degree Of Protection | IP67 IEC 60529 || IP69K DIN 40050 |
| Wiring Technique | 4-wire |
| Detection System | diffuse |
| Series Name | Application assembly |
| Status Led | 1 LED yellow)output state || 1 LED green/yellow)supply on/output state |
| [Sn] Nominal Sensing Distance | 0.8-0.8 m diffuse with background suppression |
| Lens Material | PMMA |
| Output Type | solid state |
| Sensor Design | compact 50 x 50 |
| Emission | red laser diffuse with background suppression class 1 |
| Supply Circuit Type | DC |
| Electronic Sensor Type | photo-electric sensor |
| Discrete Output Type | PNP |
| Setting-Up | using teach button or remote teaching |
| Maximum Delay Response | 0.5 msec |
| Maximum Delay First Up | 300 msec |
| Maximum Voltage Drop | <2 V |
| Product Certifications | CE, cULus || Ecolab |
| Enclosure Material | PC, ABS |
| [Us] Rated Supply Voltage | 24 V DC reverse polarity protection |
| Sensor Name | XUK |
| Ambient Air Temperature For Operation | -20-50 C discrete output, UL || -20-60°C |
| Supply Voltage Limits | 10-30 V DC |
| Package Quantity | 1 |
