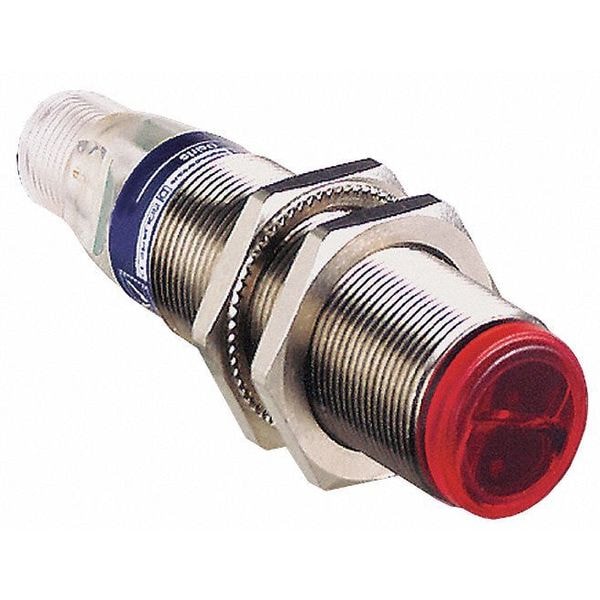

Fotocelda Cilíndrica de Plástico Transmisor de Material PNP 2M M12
| Item | Photocell Cyl Plast Trans Mat Pnp 2M M12 |
|---|---|
| Material | Plastic |
| Electrical Connection | 1 male connector M12, 4 pins |
| Current Consumption | 30 mA no-load |
| Discrete Output Function | 1 NO or 1 NC programmable |
| Beam Angle | 1.5° |
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
| Status Led | supply on 1 LED green) || output state 1 LED yellow) || alignment 1 LED red) |
| Product Specific Application | detection of transparent object |
| Switching Frequency | 250 Hz |
| Discrete Output Type | PNP |
| Maximum Voltage Drop | <1.5 V closed state |
| Shock Resistance | 30 gn 11 ms) IEC 60068-2-27 |
| Maximum Delay Recovery | 2,000 msec |
| Detection System | reflex |
| Ip Degree Of Protection | IP65 IEC 60529 double insulation) || IP67 IEC 60529 double insulation) |
| Product Certifications | CE, CSA || UL |
| Maximum Delay Response | 2,000 msec |
| Supply Circuit Type | DC |
| Sensor Design | cylindrical M18 |
| Vibration Resistance | 7 gn +/- 1 mm 10-55 Hz) IEC 60068-2-6 |
| Electronic Sensor Type | photo-electric sensor |
| Ambient Air Temperature For Storage | -40-70°C |
| Sensor Name | XUBT1 |
| Lens Material | PMMA |
| Output Type | solid state |
| Supply Voltage Limits | 10-32 V DC |
| Ambient Air Temperature For Operation | 0-55°C |
| Blind Zone | 100 mm |
| Series Name | Application packaging |
| Emission | dual lens red reflex |
| Wiring Technique | 3-wire |
| Line Of Sight Type | axial |
| Enclosure Material | PBT |
| Switching Capacity In Ma | 100 mA overload and short-circuit protection) |
| [Sn] Nominal Sensing Distance | 0-0.8 m need reflector XUZC50 |
| Maximum Delay First Up | 2,000 msec |
| Spot Diameter | 1.46 in |
| Type Of Output Signal | discrete |
| Kit Composition | reflector XUZC50 || sensor |
| Package Quantity | 1 |
