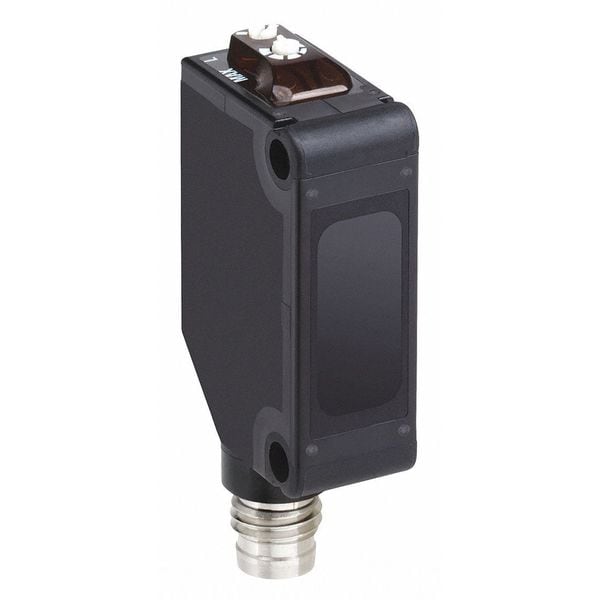

Sensor de fotocelda transp, PNP, NC con conector M8.
| Item | Photocell Sensor Transp Pnp Nonc M8 Conn |
|---|---|
| Height | 92 mm |
| Width | 31 mm |
| Depth | 77 mm |
| Material | Plastic |
| Electrical Connection | 1 male connector M8, 4 pins |
| Current Consumption | <= 35 mA no-load |
| Length | 11 mm |
| Sensor Name | XUM |
| Vibration Resistance | 7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6 |
| Switching Capacity In Ma | <= 100 mA overload and short-circuit protection) |
| Shock Resistance | 30 gn 11 ms) IEC 60068-2-27 |
| Cable Entry | 1 entry for M16 x 1.5 cable gland 7-10 mm |
| Product Certifications | CE, CSA || UL |
| Ip Degree Of Protection | IP67 double insulation IEC 60529 || IP65 double insulation IEC 60529 |
| [Sn] Nominal Sensing Distance | 2-2 m reflex need reflector XUZC50 || 1-1 m reflex need reflector XUZC50CR |
| Ambient Air Temperature For Storage | -40-70°C |
| Maximum Voltage Drop | <1.5 V closed state |
| Lens Material | PC |
| Supply Voltage Limits | 10-30 V DC |
| Type Of Output Signal | discrete |
| Maximum Delay Response | 2 msec |
| Enclosure Material | PBT |
| [Us] Rated Supply Voltage | 12...24 V DC |
| Emission | infrared reflex |
| Setting-Up | sensitivity adjustment |
| Series Name | Application packaging |
| Discrete Output Type | PNP |
| Electronic Sensor Type | photo-electric sensor |
| Immunity To Ambient Light | 3000 lux natural light || 3000 lux incandescent light |
| Maximum Delay Recovery | 2 msec |
| Switching Frequency | <= 250 Hz |
| Output Type | solid state |
| Wiring Technique | 3-wire |
| Maximum Delay First Up | 15 msec |
| Status Led | 1 LED yellow)output state || 1 LED green)supply |
| Discrete Output Function | 1 NO or 1 NC programmable |
| Sensor Design | miniature |
| Supply Circuit Type | DC |
| Ambient Air Temperature For Operation | -25-55°C |
| Detection System | reflex |
| Product Specific Application | detection of transparent object |
| Package Quantity | 1 |
