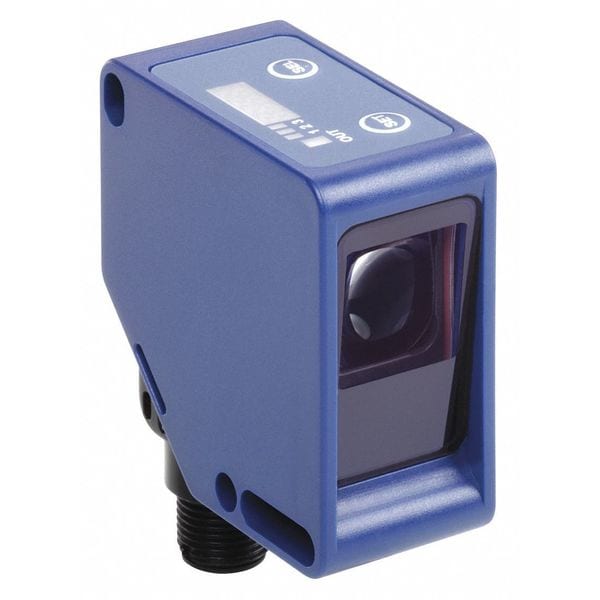

Fotocélula Xuk 50x50 para detección de color PNP
| Item | Photocell Xuk 50X50 Color Detect Pnp |
|---|---|
| Height | 50 mm |
| Width | 25 mm |
| Depth | 50 mm |
| Material | Plastic |
| Electrical Connection | 1 male connector M12 adjustable through 90°, 8 pins |
| Current Consumption | <= 60 mA no-load |
| Maximum Delay Response | 0.335 msec |
| Wiring Technique | 3-wire |
| Sensor Name | XUK |
| Setting-Up | tolerance level || operating mode || sensitivity adjustment with teach mode |
| Signalling Function | 4-digit display |
| Detection System | diffuse |
| Discrete Output Function | 1 NO |
| Switching Frequency | <= 1500 Hz |
| Electronic Sensor Type | photo-electric sensor |
| Ip Degree Of Protection | IP65 IEC 60529 |
| Shock Resistance | 30 gn 11 ms) 6 shocks on each axis IEC 60068-2-27 |
| Ambient Air Temperature For Operation | -10-55°C |
| Type Of Colour Processing | RGB |
| Status Led | output state OUT 1 LED yellow) || output active 3 LEDs green) |
| Supply Voltage Limits | 10-30 V DC |
| Maximum Delay Recovery | 0.335 msec |
| Add On Input | synchro + locking |
| Type Of Output Signal | discrete |
| Switching Capacity In Ma | <= 100 mA reverse polarity, overload and short-circuit protection) |
| Sensor Design | compact 50 x 50 |
| Series Name | Application packaging |
| Enclosure Material | ABS |
| [Sn] Nominal Sensing Distance | 20-20 mm Ø 4 mm |
| Maximum Voltage Drop | < closed state |
| Ambient Air Temperature For Storage | -20-70°C |
| Time Delay Range | 10 ms || 20 ms || 30 ms || 40 ms || 5 ms |
| Output Type | solid state |
| Supply Circuit Type | DC |
| Product Certifications | CE || cULus |
| Lens Material | Glass |
| Vibration Resistance | 7 gn +/- 0.5 mm 10-55 Hz)on the 3 axes IEC 60068-2-6 |
| Discrete Output Type | PNP |
| Product Specific Application | colour |
| Emission | white LED |
| Output Function Governance | light on |
| [Us] Rated Supply Voltage | 12...24 V DC |
| Package Quantity | 1 |
