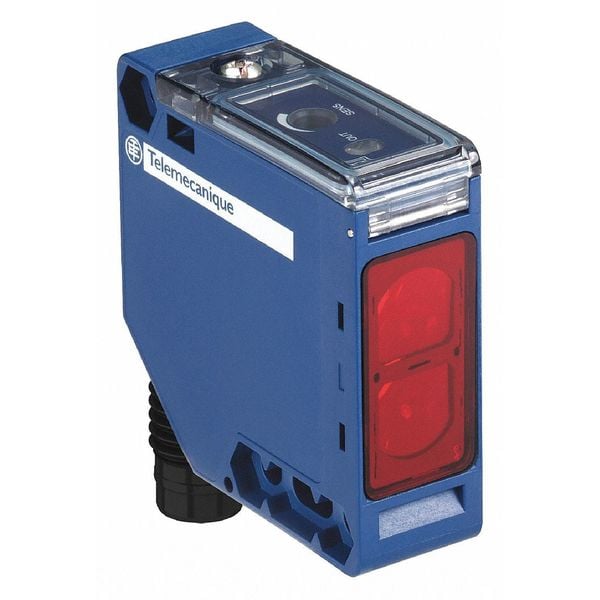

Sensor fotoeléctrico 50X50 NPN XUK
| Item | Photoelectric Sensor 50X50 Npn Xuk |
|---|---|
| Height | 50 mm |
| Width | 18 mm |
| Depth | 50 mm |
| Material | Plastic |
| Electrical Connection | 1 male connector M12, 4 pins |
| Current Consumption | <= 35 mA no-load |
| Sensor Name | XUK |
| Switching Frequency | <= 250 Hz |
| Maximum Delay Recovery | 2 msec |
| Enclosure Material | PBT |
| Sensor Design | compact 50 x 50 |
| Switching Capacity In Ma | <= 100 mA overload and short-circuit protection) |
| Supply Voltage Limits | 10-36 V |
| Maximum Sensing Distance | 8 m (polarised reflex) |
| Shock Resistance | 30 gn 11 ms) IEC 60068-2-27 |
| Supply Circuit Type | DC |
| Ip Degree Of Protection | IP65 double insulation IEC 60529 |
| Ambient Air Temperature For Operation | -25-55°C |
| Emission | red polarised reflex |
| Wiring Technique | 3-wire |
| [Sn] Nominal Sensing Distance | 6-6 m polarised reflex need reflector XUZC50 |
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
| Discrete Output Function | 1 NC |
| Lens Material | PMMA |
| Electronic Sensor Type | photo-electric sensor |
| Vibration Resistance | 7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6 |
| Wire Insulation Material | PVC |
| Setting-Up | without sensitivity adjustment |
| Output Type | solid state |
| Maximum Delay First Up | 15 msec |
| Type Of Output Signal | discrete |
| Product Certifications | CE || UL || CSA |
| Discrete Output Type | NPN |
| Maximum Delay Response | 2 msec |
| Detection System | reflex |
| Ambient Air Temperature For Storage | -40-70°C |
| Series Name | general purpose single mode |
| Maximum Voltage Drop | <1.5 V closed state |
| Status Led | 1 LED yellow)output state |
| Package Quantity | 1 |
