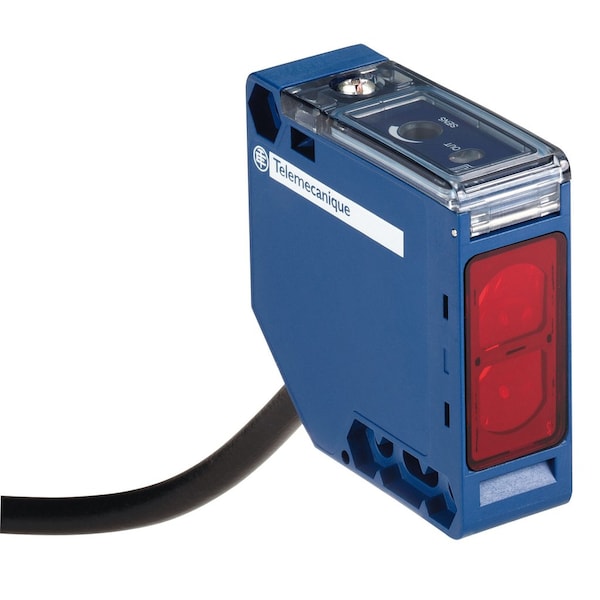

Sensor fotoeléctrico 50X50 Pnp Xuk
| Item | Photoelectric Sensor 50X50 Pnp Xuk |
|---|---|
| Height | 50 mm |
| Width | 18 mm |
| Material | Plastic |
| Depth | 50 mm |
| Electrical Connection | cable |
| Cable Length | 2 m |
| Current Consumption | <= 35 mA no-load |
| Sensor Name | XUK |
| Detection System | reflex |
| Supply Circuit Type | DC |
| [Us] Rated Supply Voltage | 12...24 V DC |
| Switching Frequency | <= 250 Hz |
| Ip Degree Of Protection | IP65 double insulation IEC 60529 |
| Lens Material | PMMA |
| Shock Resistance | 30 gn 11 ms) IEC 60068-2-27 |
| Electronic Sensor Type | photo-electric sensor |
| Maximum Voltage Drop | <1.5 V closed state |
| Enclosure Material | PBT |
| Series Name | general purpose single mode |
| Vibration Resistance | 7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6 |
| [Sn] Nominal Sensing Distance | 7-7 m reflex need reflector XUZC50 |
| Wiring Technique | 3-wire |
| Maximum Delay First Up | 15 msec |
| Ambient Air Temperature For Storage | -40-70°C |
| Output Type | solid state |
| Type Of Output Signal | discrete |
| Maximum Delay Response | 2 msec |
| Emission | infrared reflex |
| Product Certifications | CE || UL || CSA |
| Ambient Air Temperature For Operation | -25-55°C |
| Sensor Design | compact 50 x 50 |
| Status Led | 1 LED yellow)output state |
| Wire Insulation Material | PVC |
| Setting-Up | without sensitivity adjustment |
| Discrete Output Function | 1 NO |
| Switching Capacity In Ma | <= 100 mA overload and short-circuit protection) |
| Maximum Delay Recovery | 2 msec |
| Maximum Sensing Distance | 10 m reflex |
| Discrete Output Type | PNP |
| Package Quantity | 1 |
