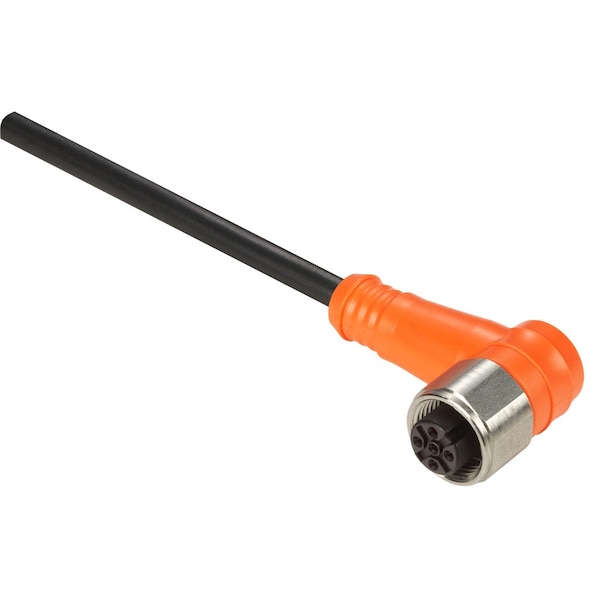

Conector pre cableado M12 hembra codo 4
| Item | Pre Wired Connector M12 Female Elbowed 4 |
|---|---|
| Cable Length | 2 m |
| Contact Resistance | 5000µOhm |
| [Ue] Rated Operational Voltage | 250 V AC || 300 V DC |
| Status Led | without |
| Cable Outer Diameter | 5.3 mm |
| Accessory / Separate Part Category | cabling accessory |
| Cable Connector Fixing | screw-on |
| Cable Composition | 4 x 0.34 mm² |
| Accessory / Separate Part Type | pre-wired connectors |
| Ambient Air Temperature For Operation | -25-85°C static |
| Ip Degree Of Protection | IP69K |
| Collar Material | stainless steel 316L |
| Series Name | Application |
| Ambient Air Temperature For Storage | -35-100°C |
| Minimum Insulating Resistance | 1 GΩ |
| Electrical Connection | elbowed female connector M12, 4 pins |
| Line Rated Current | 4 A |
| Wire Insulation Material | PVC |
| Package Quantity | 1 |
