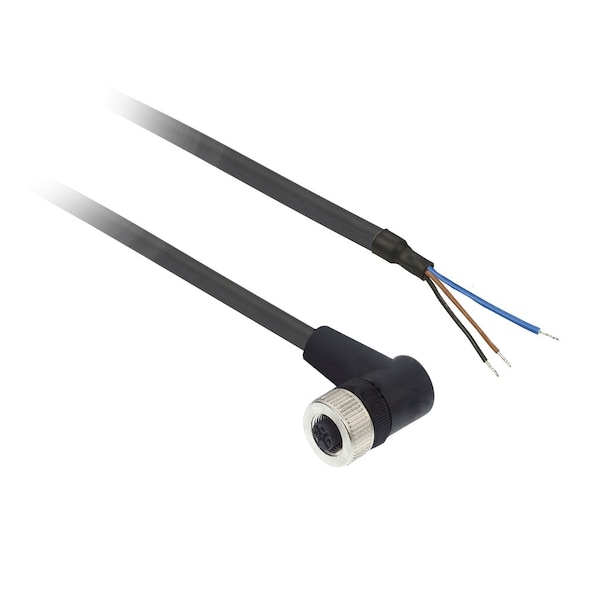

Conectores pre-cableados hembra XZ en ángulo.
| Item | Pre-wired connectors XZ - elbowed female |
|---|---|
| Wire Insulation Material | PUR |
| Cable Outer Diameter | 5.2 mm |
| Series Name | general purpose |
| Status Led | 2 PNP LEDs |
| Cable Composition | 3 x 0.34 mm² |
| Collar Material | metal |
| [Ue] Rated Operational Voltage | 10...30 V DC |
| Ip Degree Of Protection | IP69K || IP67 || IP65 |
| Accessory / Separate Part Type | pre-wired connectors |
| Accessory / Separate Part Category | cabling accessory |
| Cable Connector Fixing | screw-on |
| Product Certifications | cULus |
| Ambient Air Temperature For Operation | -40-80°C static || -5-80°C flexing |
| Contact Resistance | 5000µOhm |
| Electrical Connection | elbowed female connector M12, 3 pins |
| Cable Length | 10 m |
| Minimum Insulating Resistance | 1 GΩ |
| Ambient Air Temperature For Storage | -40-80°C |
| Line Rated Current | 4 A |
| Package Quantity | 1 |
