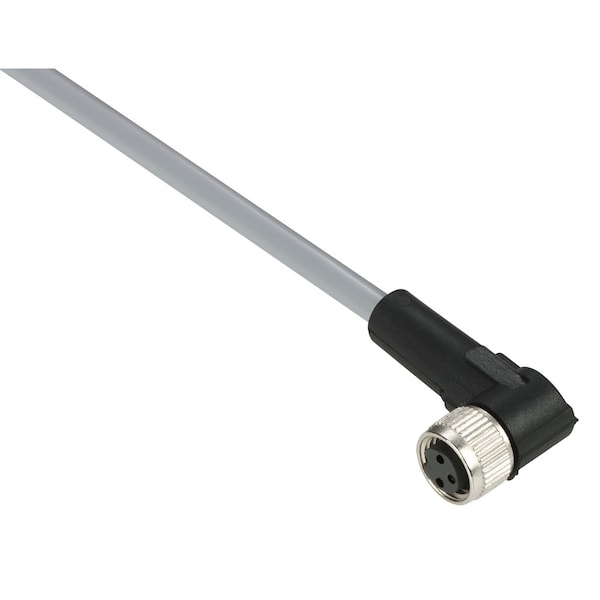

Conectores pre-cableados XZ-hembra con codo.
| Item | Pre-wired connectors XZ - elbowed female |
|---|---|
| Line Rated Current | 3 A |
| Collar Material | metal |
| [Ue] Rated Operational Voltage | 60 V AC || 75 V DC |
| Accessory / Separate Part Type | pre-wired connectors |
| Ambient Air Temperature For Storage | -25-80°C |
| Cable Length | 10 m |
| Electrical Connection | elbowed female connector M8, 3 pins |
| Cable Outer Diameter | 4.6 mm |
| Accessory / Separate Part Category | cabling accessory |
| Cable Composition | 3 x 0.25 mm² |
| Status Led | without |
| Contact Resistance | 5000µOhm |
| Minimum Insulating Resistance | 1 GΩ |
| Cable Connector Fixing | screw-on |
| Ambient Air Temperature For Operation | -25-80°C static |
| Wire Insulation Material | PVC |
| Ip Degree Of Protection | IP67 || IP65 |
| Series Name | general purpose |
| Product Certifications | cULus |
| Package Quantity | 1 |
