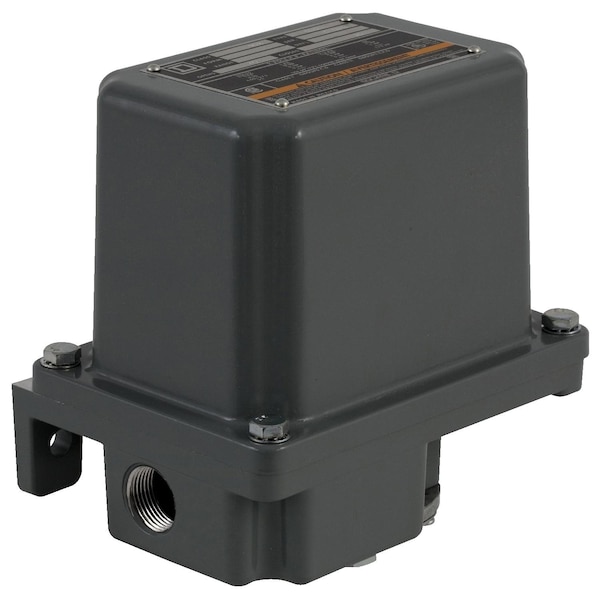

Interruptor de presión, 2 NC (normalmente cerrados), DPST-DB (doble polo, doble tiro), Forma YY, de 5 a 80 psi, regulación entre 2 umbrales de acción.
| Item | Pressure Switch |
|---|---|
| Pressure Switch Application | Water Pumps; Air Compressors |
| Pressure Switch Factory On/Off Setting | 30/50 psi |
| Pressure Switch Differential | 20 to 40 psi |
| Pressure Switch Range | 5 to 80 psi |
| Pressure Switch Electrical Contact Form | 2 NC, DPST-DB, Form YY |
| Pressure Switch Action | Regulation between 2 thresholds |
| Special Features | Mercury Free; Green Premium product |
| Temp. Range | -22 to 257°F |
| IP Rating | IP20 |
| Standards | UL 508; CE; NSF ANSI 372; UL listed file E12443; CSA file LR26817 |
| NEMA Rating | NEMA 7; NEMA 9 |
| Burst Pressure | 100 psi |
| Differential | Adjustable Differential Scale |
| HP @ 1 Phase - 230V | 3 |
| Electrical Connection | Screw-Clamp Terminals |
| Actuation Type | Diaphragm |
| Circuit Type | Power Circuit |
| Type | Electromechanical Pressure Switch |
| Material | Cast Aluminium Enclosure |
| Package Quantity | 1 |
