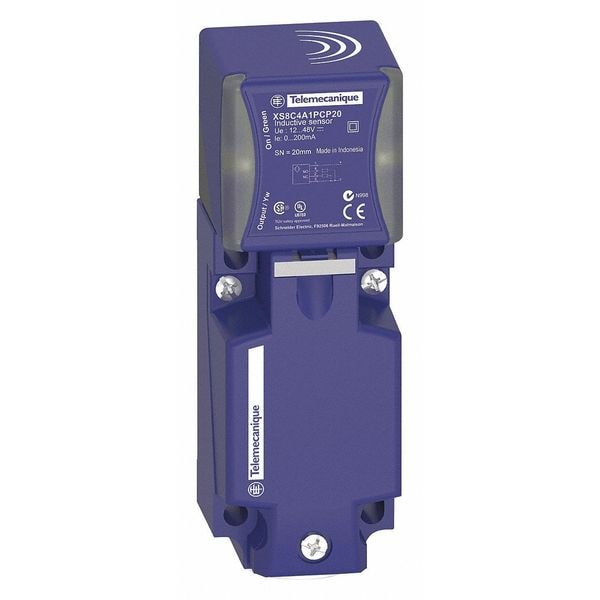

Sensor de proximidad rectangular, de 4 cables PNP, blindado.
| Item | Rectangular Proximity Sensor |
|---|---|
| Proximity Sensor Style | Rectangular Proximity Sensor |
| Proximity Sensing Method | Inductive |
| Measurement Range | 0 to 16 mm |
| Proximity Sensor Power Requirement | 12 to 48 V DC |
| Proximity Sensor Output Circuit Type | 4 Wire PNP |
| Output Mode | NO/NC |
| Length | 40 mm |
| Max. Detecting Distance | 20 mm |
| Width | 40 mm |
| Depth | 117 mm |
| Proximity Sensor Electrical Connection | Screw Clamp Terminal |
| Shielded / Unshielded | Shielded |
| Basic Proximity Sensor Case Material | Plastic |
| Case Material | Plastic |
| Proximity Sensor Operating Frequency | 300 Hz |
| Description/Special Features | 1 Green LED for Supply On, Overload and Short-Circuit Protection, Reverse Polarity Protection |
| Standards | CCC, CE Compliance, CSA Certified, REACh, RoHS, UL Listed |
| Max. Current Load | 200 mA |
| IP Rating | 69K, 65, 67 |
| Operating Temp. Range | -13 to 158 deg F |
| Length (Straight Wireway) | 40 mm |
| Differential Travel | Sr, 3...15% |
| Vibration Resistance | 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6 |
| Storage Temp. Range | -40-85 °C |
| Body Type | fixed |
| Supply Voltage Limits | 10-58 V DC |
| Switching Capacity | <= 200 mA overload and short-circuit protection |
| Series | XS8 |
| Maximum Delay Response | 1.2 msec |
| Application | mobile equipment; general purpose |
| Maximum Voltage Drop | <2 V closed) |
| Maximum Delay First Up | 7.5 msec |
| Shock Resistance | 50 gn 11 msEN 60068-2-27 |
| Maximum Delay Recovery | 1.8 msec |
| Package Quantity | 1 |
