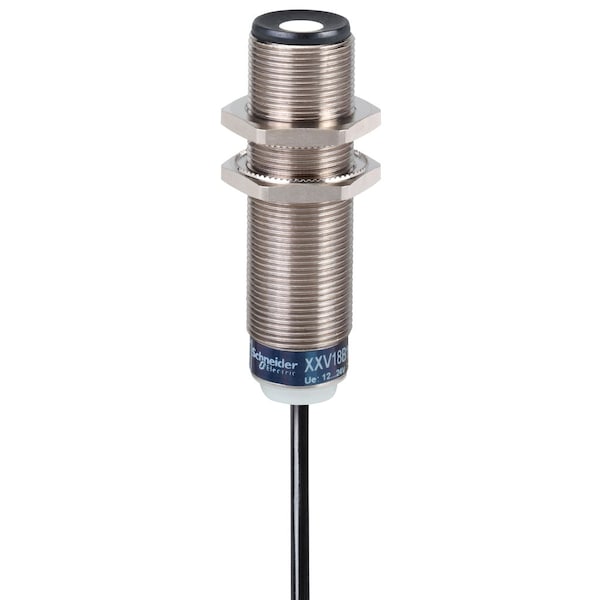

Sensor de proximidad ultrasónico PNP No 2M con cable
| Item | Xxv18 Ultrasonic Proximity Pnp No 2M Cab |
|---|---|
| Proximity Sensor Style | Cylindrical Proximity Sensor, Cylindrical M18 |
| Proximity Sensing Method | Diffuse |
| Measurement Range | 0.003 to 0.05 m |
| Proximity Sensor Power Requirement | 12 to 24 V DC |
| Proximity Sensor Output Circuit Type | 3-Wire DC PNP |
| Output Mode | 1 NO |
| Length | 18 mm |
| Width | 18 mm |
| Max. Detecting Distance | 0.05 m |
| Depth | 65 mm |
| Proximity Sensor Electrical Connection | 2m Cable |
| Basic Proximity Sensor Case Material | Brass, Epoxy |
| Proximity Sensor Operating Frequency | Less than Or Equal to 80 Hz; Transmission: 360 kHz |
| IP Rating | IP67 |
| Description/Special Features | Output State 1 LED Yellow |
| Max. Current Load | 15 mA, 200 mA |
| Standards | IEC 60947-5-2; cULus; CE Marked |
| Operating Temp. Range | 0 to 60 deg C |
| Application | General Purpose |
| Supply Voltage Limits | 10-36 V DC |
| Maximum Delay First Up | 5 msec |
| Storage Temp. Range | -40-80 °C |
| Vibration Resistance | +/- 2 mm 10-55 Hz)IEC 60068-2-6 |
| Maximum Delay Recovery | 4 msec |
| Differential Travel | 3 mm |
| Maximum Delay Response | 4 msec |
| Series | XXV |
| Maximum Voltage Drop | 2 V |
| Shock Resistance | 50 gn in all 3 axes 11 ms IEC 60068-2-27 |
| Package Quantity | 1 |
