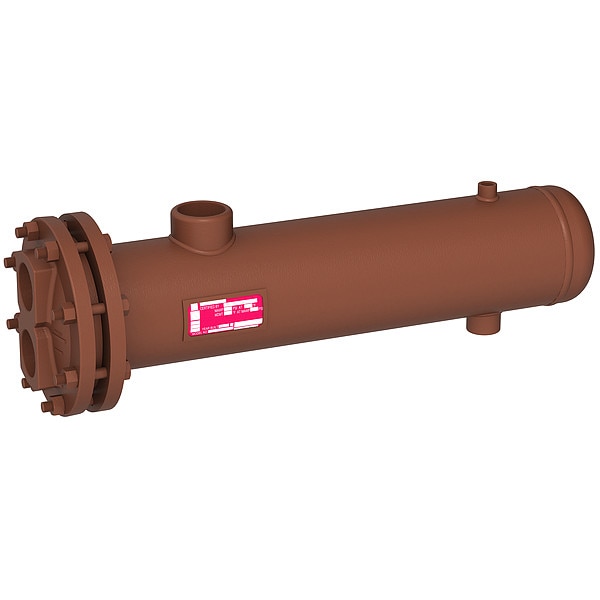

Steam-Water Heat Exchanger, 478,000 BtuH
| Item | Heat Exchanger |
|---|---|
| Type | Shell and Tube |
| Max. BtuH (Water to Water Application) | 478,000 BtuH |
| Pressure | Shell 150 PSI, Tube 150 PSI |
| Temp. (F) | Max 375 Degrees F |
| Construction Material | ¾ in 20ga Copper Tubes, Carbon Steel Shell, Carbon Steel Tubesheet, Cast Iron Head |
| Connection | Condensate 1.5 in NPT, Steam 3 in NPT, Tube 3 in NPT, Vent 3/4 in NPT |
| Capacity (GPM) | 211 gpm |
| Agency Compliance | ASME Section VIII div. 1, National Board Registered |
| Depth (In.) | 13-1/2 |
| Width (In.) | 13-1/2 |
| Length (In.) | 42.8 |
| Height (In.) | 13-1/2 |
| Weight (Lbs.) | 220 |
| Number of Passes | 2 |
| Shell Material | Carbon Steel |
| Heat Dissipation Capacity for Oil | Not Applicable |
| Shell Outside Diameter | 8 in |
| Shell Maximum Operating Temperature | 375 deg F |
| Overall Width | 13-1/2 in |
| Heat Exchanger Type | U-Tube |
| Shell Pipe Connection Size | 3 in |
| Tube Flow Capacity | 49 gpm |
| Shell Maximum Pressure Rating | 150 psig |
| Overall Height | 13-1/2 in |
| Tube Maximum Operating Temperature | 400 deg F |
| Tube Material | Copper |
| Standards | ASME Section VIII Div. 1 |
| Tube Maximum Pressure Rating | 150 psig |
| Tube Length | 42-3/4 in |
| Tube Pipe Connection Size | 3 in |
| Total Surface Area | 23.5 sq ft |
| Shell Flow Capacity | 211 gpm |
| Shell Pipe Connection Type | NPT |
| Application | Air Conditioning, Heat Recovery, Liquid Heating and Cooling, Heating Systems |
| Heat Dissipation Capacity for Water | 478,000 BtuH |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
