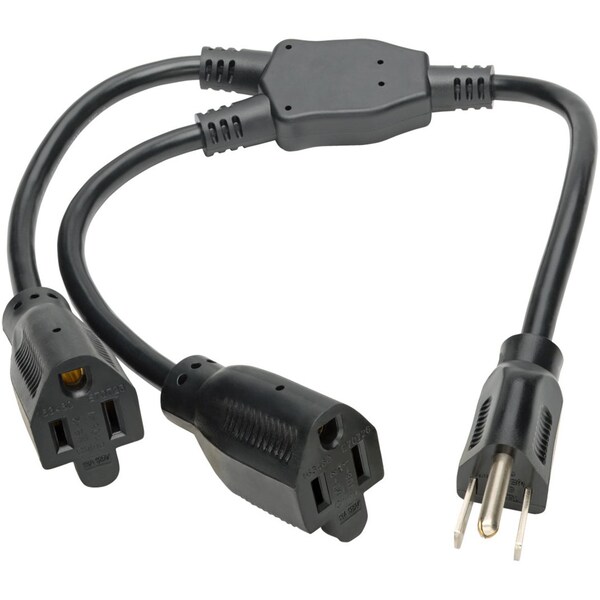

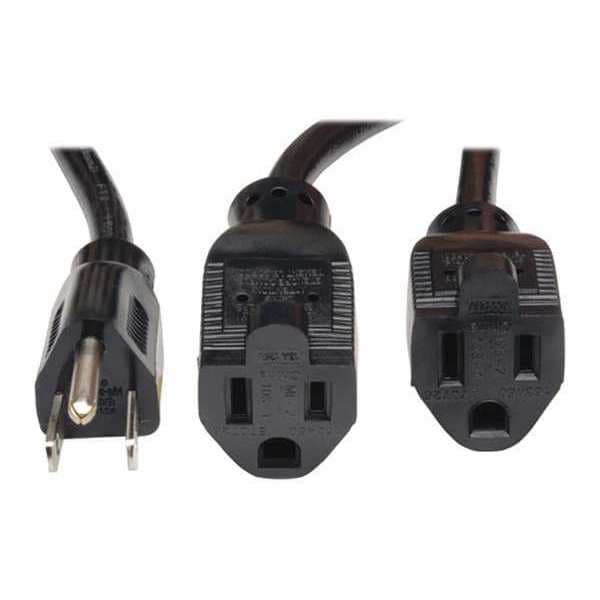

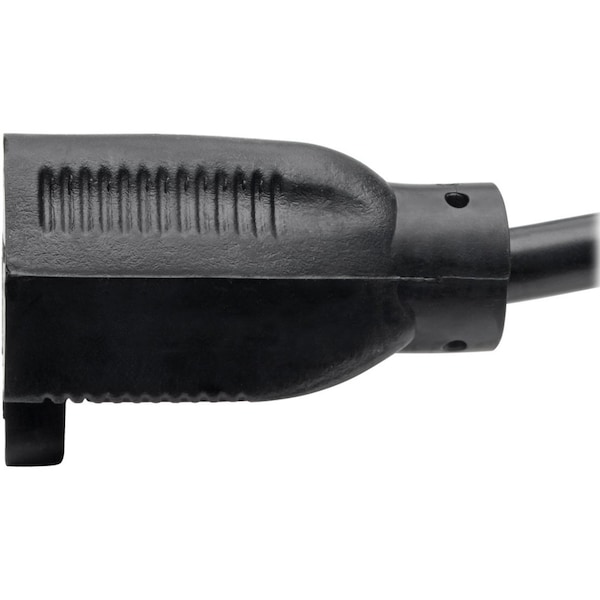

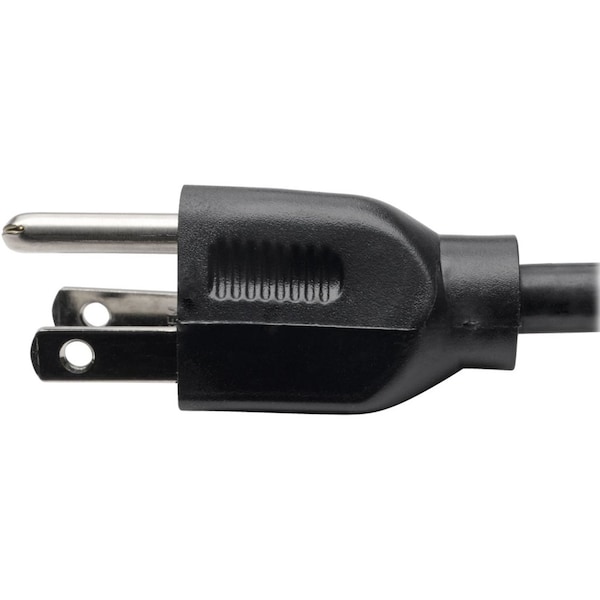

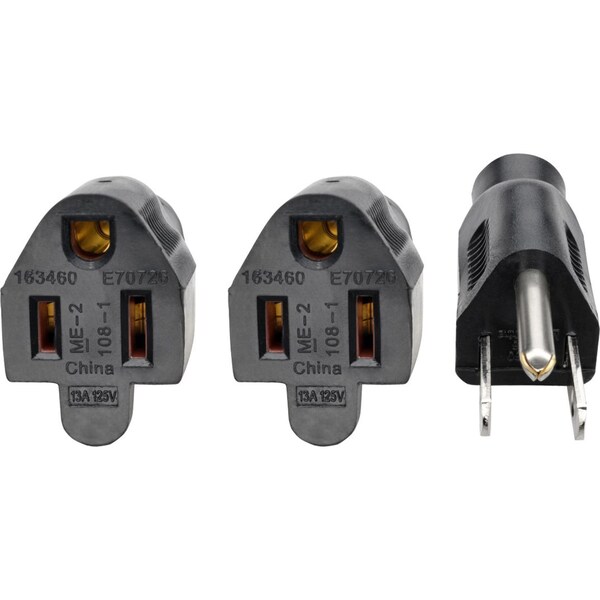

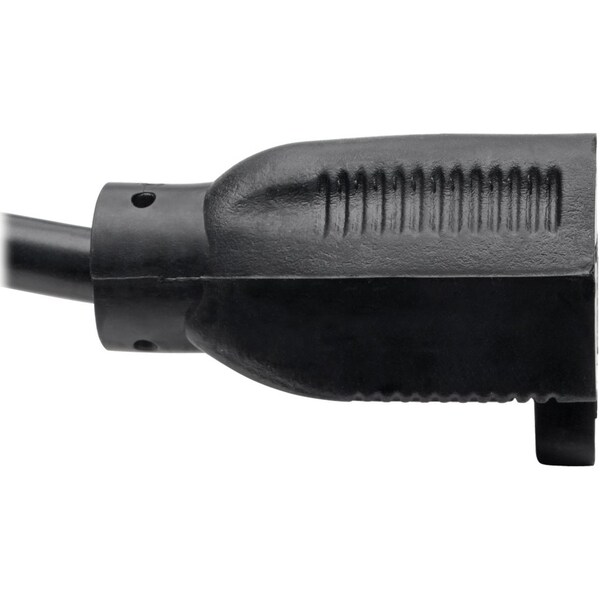

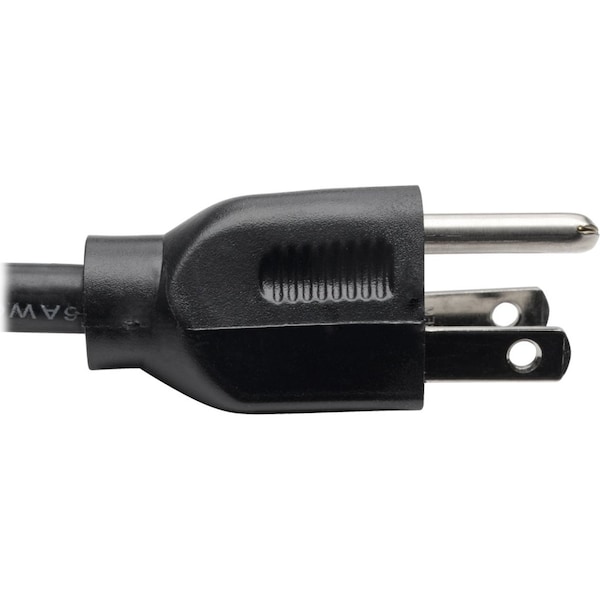

Power Cord, 5-15P-2x 5-15R, 13A, 16AWG, 18"
| Item | Power Cord,5-15P-2x 5-15R,13A,16AWG,18" |
|---|---|
| Max. Amps | 13 |
| Number of Conductors | 3 |
| Cord Length | 18 in |
| Wire Size | 16 AWG |
| Voltage | 120V AC |
| NEC Cord Designation | SJT |
| Color | Black |
| End 1 Connection Type | NEMA 5-15P |
| End 2 Connection Type | NEMA 5-15R |
| Voltage Rating | 120 V AC |
| Gauge | 16 |
| Frequency | 60 Hz |
| Product Name | 18-in. 16AWG, 13A Power Splitter Cord (NEMA 5-15P to 2 x NEMA 5-15R) |
| Product Color | Black |
| Certifications & Standards | UL |
| Current Rating | 13 A |
| First End Connector Type | NEMA 5-15P |
| Second End Connector Detail | 2 x NEMA 5-15R |
| Device Supported | Power Adapter |
| Operating Humidity Range | 10% to 65% RH |
| Side A - Connector 1 | NEMA 5-15P |
| Maximum Input Amps | 13 |
| Package Includes | P024-18N-13A-2R Extension Cord Y Splitter, 5-15P to 2x 5-15R, 1.5 ft., Black |
| Device Compatibility | PDU, UPS, Server, Computer, HDTV, Monitor, Printer |
| Plug Color | Black |
| Side B - Connector 1 | NEMA 5-15R |
| Product Certifications | UL Listed, cUL Listed |
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Wire Gauge (AWG) | 16 |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | VW-1 |
| Cable Length (ft.) | 1.5 |
| Power Cord Jacket Type | SJT |
| Storage Humidity Range | 10% to 65% RH |
| Operating Temperature Range | -4° to 140°F (-20° to 60°C) |
| Cable Outer Diameter (OD) | 8.3 mm |
| Cable Jacket Color | Black |
| Voltage Compatibility (VAC) | 125 |
| Package Quantity | 1 |
