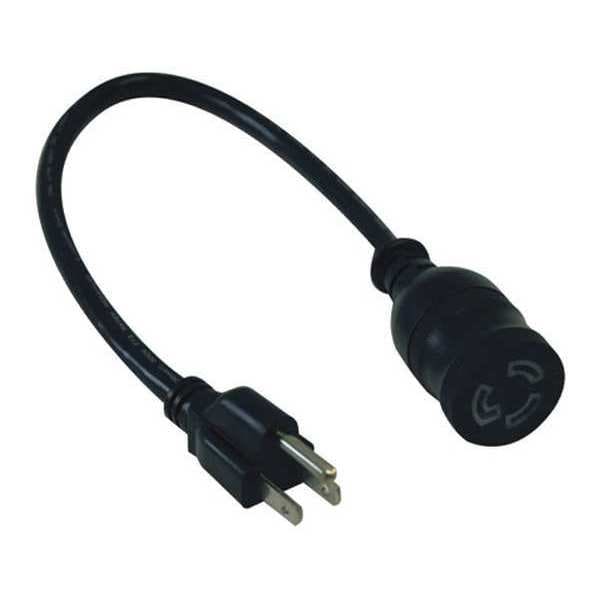

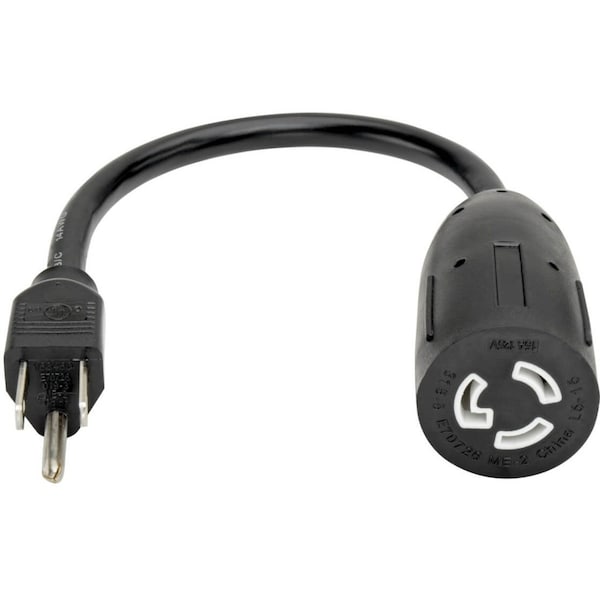

Power Cord, HD, 5-15P-L5-15R, 15A, 14AWG, 1ft
| Item | Power Supply Cord |
|---|---|
| Max. Amps | 15 |
| Number of Conductors | 3 |
| Cord Length | 1 ft |
| Wire Size | 14 AWG |
| Voltage | 120V AC |
| NEC Cord Designation | SJT |
| Color | Black |
| End 1 Connection Type | NEMA 5-15P |
| Voltage Rating | 120 V AC |
| End 2 Connection Type | NEMA L5-15R |
| Package Contents | P023-001 Power Adapter Cable, 1ft, IEC320 NEMA 5-15P to L5-15R Power Adapter Cable |
| Product Name | P023-001 Power Adapter Cable |

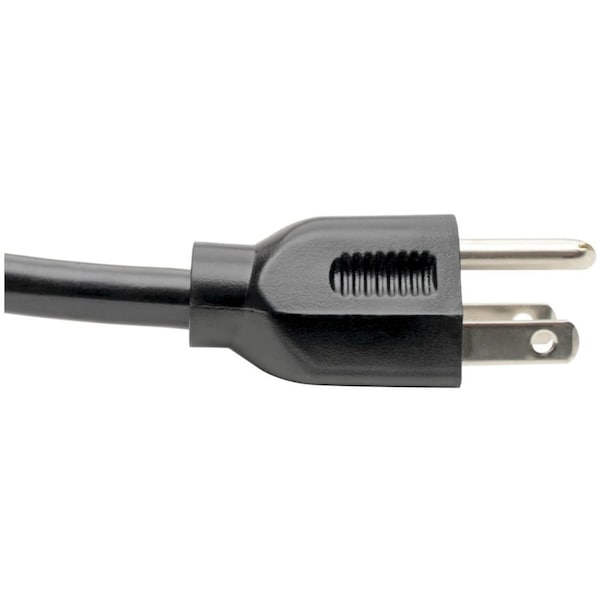

| First End Connector Detail | 1 x NEMA 5-15P Male |
| Frequency | 60 Hz |
| Product Color | Black |
| Additional Information | 14 AWG |

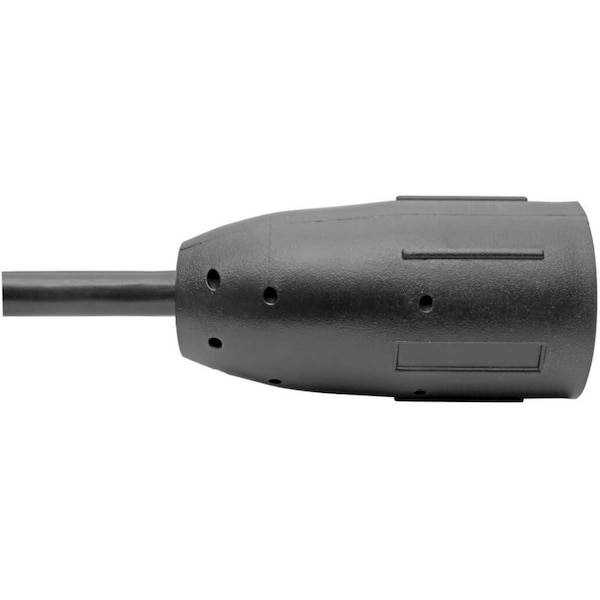

| Second End Connector Detail | 1 x NEMA L5-15R Female |
| Current Rating | 15 A |
| Compatibility | PDU's, UPS's |
| Cable Jacket Rating | FT2 |
| Power Cord Jacket Type | SJT |
| Wire Gauge (AWG) | 14 |
| Cable Length (ft.) | 1 |
| Cable Jacket Color | Black |
| Operating Temperature Range | -4° to 140°F (-20° to 60°C) |
| Maximum Input Amps | 15 |
| Operating Humidity Range | 20% to 80% RH |
| Cable Jacket Material | PVC |
| Cable Outer Diameter (OD) | 9.2 mm |
| Plug Color | Black |
| Device Compatibility | PDU, UPS, Server, Computer, HDTV, Monitor |
| Side B - Connector 1 | NEMA L5-15R |
| Product Certifications | UL Listed, cUL Listed |
| Voltage Compatibility (VAC) | 125 |
| Package Includes | P023-001 Heavy-Duty Extension Cable, L5-15R to 5-15P, 1-ft. (0.31 m), Black |
| Storage Humidity Range | 20% to 80% RH |
| Side A - Connector 1 | NEMA 5-15P |
| High Voltage | Yes |
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Package Quantity | 1 |
