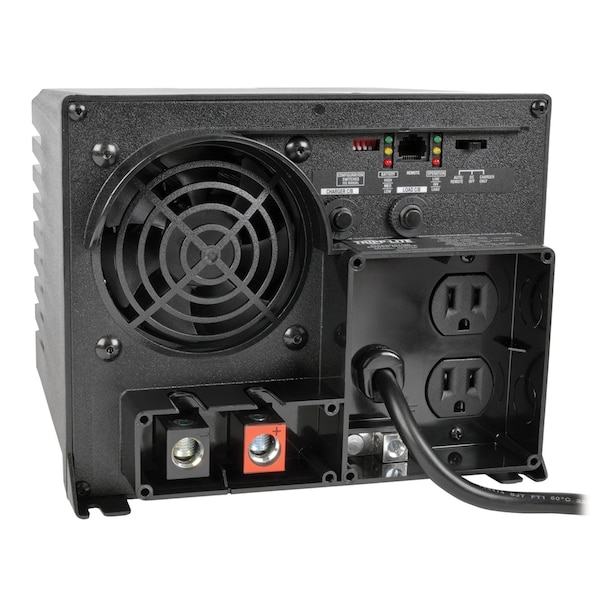

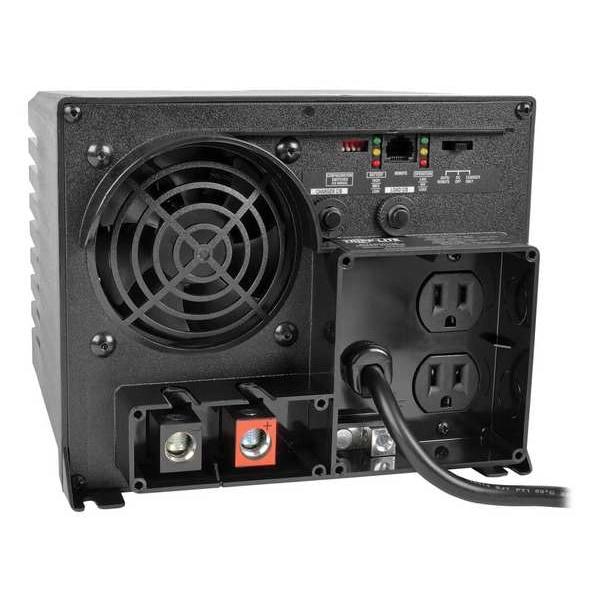

Power Inverter and Battery Charger, Modified Sine Wave, 1,500 W Peak, 750 W Continuous, 2 Outlets
| Item | Power Inverter and Battery Charger |
|---|---|
| Peak Output Power | 1,500 W |
| Continuous Output Power | 750 W |
| Inverter Output Form | Modified Sine Wave |
| Inverter Input Voltage | 12V DC; 120V AC |
| Inverter Output Voltage | 120V AC |
| Outlet Type | Standard 3-Prong Outlet |
| DC Connection | Bolt Down Terminals |
| Number of Outlets | 2 |
| Case Material | Polycarbonate |
| Charger Height | 7 in |
| Height | 8-3/4 in |
| Charger Depth | 9 in |
| Max. Input Current | Full continuous load - 72 A at 12V DC; AC INPUT: 8 A at 120V AC with full inverter and charger load |
| Depth | 7 in |
| Features | Automatic Transfer Switching, Emergency and Remote Sites, Front Panel Leds, Meets Normal and Peak Power Demands, Optional Remote Control Capability, Reliable Power for Mobile, Rugged Polycarbonate Housing |
| Charger Output Voltage | 120V |
| Width | 9 in |
| Inverter Depth | 9 in |
| Charger Output Amps | 20 A |
| Charger Input Voltage | 120 V AC |
| Application | Powering Tools; Saws; Motors; Pumps; Portable Lighting; Appliances and Computer Equipment in Heavy-Load Conditions |
| Inverter Height | 7 in |
| Automatic/Manual | Automatic |
| Length | 12-1/2 in |
| Inverter Width | 8.7 in |
| Charger Width | 8.8 in |
| Nominal Output Power | 750 W |
| Inveter Output Voltage | 120V |
| Output Frequency | 60 Hz |
| Input Voltage | 12VDC |
| Charger Output Current | 20 A |
| Output Voltage | 115VAC |
| Charger DxWxH | 9 in x 8.8 in x 7 in |
| Charger Input Current | 4.2 A |
| Product Series | APS |
| Product Color | Black |
| Input Voltage Range | 10 DC to 15 V DC |
| Protection Type | Overload Protection |
| Additional Information | Frequency control for operating stability, AC surge suppression not included, Material of construction: Polycarbonate, Low voltage transfer to battery power: User configurable to 75V, 85V, 95V & 105V, High voltage transfer to battery power: User configurable to 135V, 145V, Coated internal circuit boards offer continuous operation in humid environments, Advanced 20 amp, 3-stage battery charger and selector switch for gel or wet cell batteries, Functions as an extended run UPS system, standalone power source and automotive inverter, RJ-45 port allows connection of APS/PowerVerter Remote Switch (manuf# APSRM4), Switch allows user to select between off, auto-invert/remote and charge-only settings, Configuration switches to allow the user to select the high and low voltage, Mounting slots enable permanent placement of inverter on any horizontal surface, AC input cord and auto-transfer to enable battery charging and automatic UPS support for blackouts & brownouts |
| Product Line | PowerVerter |
| Maximum Frequency | 60 Hz |
| Package Contents | PowerVerter APS 750W Inverter/Charger, Instruction Manual with Warranty Information |
| Product Name | PowerVerter APS 750W Inverter/Charger |
| Front Panel LEDs | Set of 6 LEDs offer continuous status information on load percentage (6 levels reported) and battery charge level (7 levels reported). See manual for sequences. |
| Material of Construction | Polycarbonate |
| Receptacle Color | Black |
| Battery Charge | 20A |
| Output Frequency Regulation | 60 Hz (+/- 0.3 Hz) |
| Output Receptacles | 5-15R |
| Voltage Compatibility (VAC) | 120 |
| High Voltage Transfer to Battery Power | In AC "auto" mode, inverter/charger switches to battery mode as line voltage increases to 135V (user adjustable to 145 - see manual) |
| Unit Dimensions (hwd / in.) | 7 x 8.75 x 9 |
| Voltage Compatibility (VDC) | 12 |
| Maximum Input Amps / Watts | DC INPUT: Full continuous load - 72A at 12V DC. AC INPUT: 8 amps at 120VAC with full inverter and charger load (4.2A max charger-only) |
| Output Voltage Regulation | LINE POWER (AC): Maintains 120V nominal sine wave output from line power source. INVERTER POWER (AC): Maintains PWM sine wave output voltage of 120 V AC (+/-5%). |
| Relative Humidity | 0%-95% Non-Condensing |
| Nominal Output Voltage(s) Supported | 120 V |
| Switches | 3 position on/off/remote switch enables simple on/off power control plus "auto/remote" setting that enables distant on/off control of the inverter system when used in conjunction with optional APSRM4 accessory when used in inverter mode. In AC uninterrupt |
| Frequency Compatibility | 60 Hz |
| Expandable Runtime | Yes |
| Overload Protection | Includes 6A AC input breaker dedicated to the charging system and 8A output breaker for AC output loads |
| Package Includes | APS750 750W PowerVerter APS 12V DC 120V AC Inverter/Charger;Owner's manual |
| Form Factors Supported | Mounting slots enable permanent placement of inverter on any horizontal surface |
| Low Voltage Transfer to Battery Power | In AC "auto" mode, inverter/charger switches to battery mode as line voltage drops to 75V (user adjustable to 85, 95, 105V - see manual) |
| Transfer Time (Line Power to Battery Mode) | 16.6 milliseconds (typical - compatible with many computers, servers and networking equipment - verify transfer time compatibility of loads for UPS applications) |
| Nominal Input Voltage(s) Supported | 120V AC |
| DC System Voltage (VDC) | 12 |
| Recommended Electrical Service | DC INPUT: Requires 12V DC input source capable of delivering 72A for the required duration (when used at full continuous capacity - DC requirements increase during Over-Power and Double-Boost operation). AC INPUT: 15A 120V AC recommended |
| AC Suppression Joule Rating | 450 |
| Cooling Method | Fan |
| Package Quantity | 1 |
