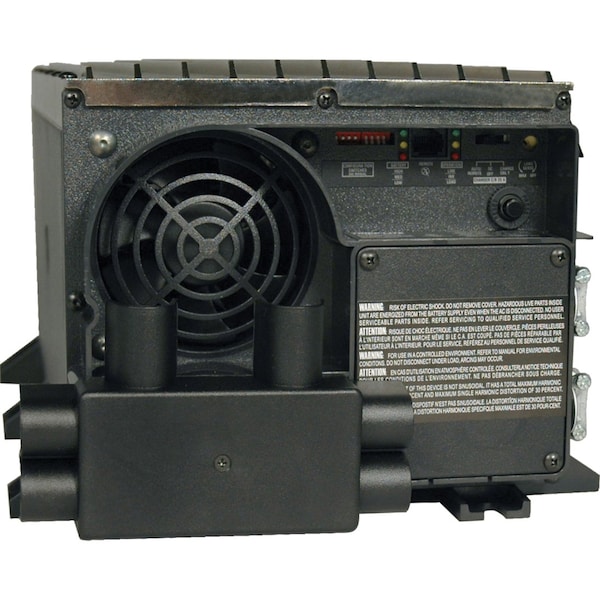

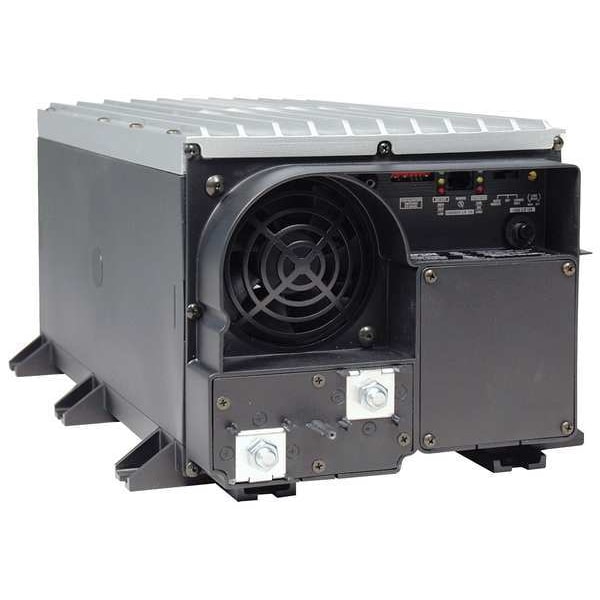

Power Inverter and Battery Charger, Modified Sine Wave, 4,000 W Peak, 2,000 W Continuous, 1 Outlets
| Item | Power Inverter and Battery Charger |
|---|---|
| Peak Output Power | 4,000 W |
| Continuous Output Power | 2,000 W |
| Inverter Output Form | Modified Sine Wave |
| Inverter Input Voltage | 12V DC; 120V AC |
| Inverter Output Voltage | 120V AC |
| Outlet Type | Hardwired |
| DC Connection | Terminal Posts |
| Number of Outlets | 1 |
| Case Material | Aluminum, Polycarbonate |
| Automatic/Manual | Automatic |
| Application | Recreational Applications |
| Inverter Width | 10-1/2 in |
| Charger Output Amps | 100 A |
| Nominal Output Power | 2,000 W |
| Charger Input Voltage | 120 V AC |
| Inverter Height | 8 in |
| Charger Depth | 17-1/2 in |
| Inverter Depth | 17-1/2 in |
| Height | 8 in |
| Charger Height | 8 in |
| Standards | RoHS, UL458 |
| Charger Output Voltage | 120V |
| Features | Display Leds, Moisture-Resistant Construction Enables Vehicular Operation in High-Humidity Environments, Overtemperature Protection |
| Charger Width | 10-1/2 in |
| Depth | 10-1/2 in |
| Width | 17-1/2 in |
| Includes | Battery Temperature Sensor Cable, Conduit hanger |
| Max. Input Current | Full continuous load - 190 A at 12V DC; 38 A at 120V AC with full inverter and charger load |
| Inveter Output Voltage | 120V |
| Output Frequency | 60 Hz |
| Charger DxWxH | 17-1/2 in x 10-1/2 in x 8 in |
| Charger Input Current | 20 A |
| Output Voltage | 115VAC |
| Input Voltage | 12VDC |
| Charger Output Current | 100 A |
| Certifications & Standards | UL 458 (US & Canada) |
| Package Contents | PowerVerter MRV2012UL Inverter, Instruction Manual, Battery Temperature Sensor Cable, Conduit Hanger |
| Maximum Frequency | 60 Hz |
| Product Line | PowerVerter |
| Additional Information | Extra Input: AC In |
| Product Name | PowerVerter MRV2012UL Inverter |
| Product Color | Black |
| Included Accessories | Battery temperature sensor cable; conduit hanger |
| Transfer Time (Line Power to Battery Mode) | 16.6 ms (typical - compatible with many computers - verify transfer time compatibility of loads for UPS applications) |
| LVC (Low Voltage Cut-Off) | 10VDC +/-3% |
| Form Factors Supported | Mounting slots enable secure placement of inverter on any horizontal surface |
| DC System Voltage (VDC) | 12 |
| Nominal Output Voltage(s) Supported | 120 V |
| Voltage Compatibility (VAC) | 120 |
| Switches | 3-position on/off/remote switch enables simple on/off power control plus auto/remote setting that enables distant on/off control of the inverter system when used in conjunction with APSRM4 accessory (sold separately) in inverter mode. In AC uninterruptibl |
| Package Includes | MRV2012UL Inverter/Charger;Instruction manual with warranty information;Battery Temperature Sensor cable;Conduit hanger |
| Output Frequency Regulation | 60 Hz (+/- 0.3 Hz) |
| Nominal Input Voltage(s) Supported | 120V AC |
| Material of Construction | Polycarbonate, Aluminum |
| Front Panel LEDs | 6 LEDs offer continuous status information on load (6 levels reported) and battery charge level (7 levels reported). See manual for sequences. |
| Maximum Input Amps / Watts | DC INPUT: Full continuous load - 190A at 12V DC. AC INPUT: 38 amps at 120V AC with full inverter and charger load (20A max charger-only / combined input load to support charger and AC output is automatically controllable to 66%-33%-0% based on AC output l |
| Frequency Compatibility | 60 Hz |
| Output Voltage Regulation | LINE POWER (AC): Maintains 120V nominal sine wave output from line power source. INVERTER POWER (AC): Maintains PWM sine wave output voltage of 120V AC (+/-5%). |
| Overload Protection | Includes 25A input breaker dedicated to the charging system |
| Voltage Compatibility (VDC) | 12 |
| Expandable Runtime | Yes |
| Output Receptacles | Hardwire |
| High Voltage Transfer to Battery Power | In AC "auto" mode, inverter/charger switches to battery mode as line voltage increases to 145V |
| Load Sensing | Optional load-sense function enables automatic inverter shutoff and startup as connected equipment is powered off and on. Front panel load-sense potentiometer can be set to shutoff or turn on inverter power in response to loads of any level, up to 150 watts. |
| Battery Pack Accessory (Optional) | 98-121 sealed lead acid battery (optional) |
| Recommended Electrical Service | DC INPUT: Requires 12V DC input source capable of delivering 190A for the required duration (when used at full continuous capacity - DC requirements increase during Over-Power and Double-Boost operation). For automotive applications, professional hardwire |
| Battery Charge | 25A / 100A (user-selectable) |
| Low Voltage Transfer to Battery Power | In AC "auto" mode, inverter/charger switches to battery mode as line voltage drops to 75V (user-adjustable to 85, 95, 105V - see manual) |
| Unit Dimensions (hwd / in.) | 8 x 10.5 x 17.5 |
| Relative Humidity | 0%-95% Non-Condensing |
| Product Certifications | UL 458 |
| Cooling Method | Fan |
| Package Quantity | 1 |
