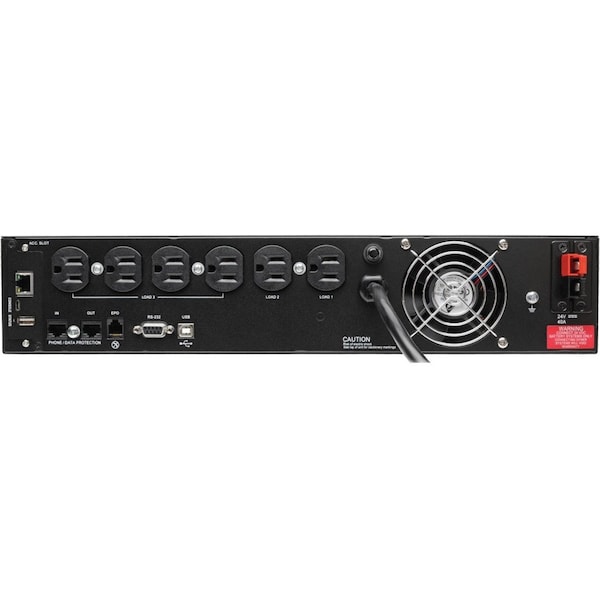

Smart UPS, 750VA, Online, Out: 120/110/100V AC In: 120/110/100V AC
| Item | Smart UPS |
|---|---|
| UPS Type | Online |
| Power Rating | 750 VA |
| Mounting | Rack |
| Wattage | 600 W |
| Input Voltage | 120/110/100V AC |
| Output Voltage | 120/110/100V AC |
| Backup Time (Half/Full Load) | 11 min/4 min |
| Number of Outlets | 6 |
| Width | 13-1/2 in |
| NEMA Plug Configuration | 5-15P |
| Height | 3-1/2 in |
| NEMA Receptacle Configuration | 5-15R |
| Depth | 13-1/2 in |
| Hz | 50/60 Hz |
| Transfer Time | No transfer time (0 ms.) in online, double-conversion mode |
| Housing Material | Steel |
| Battery Type | VRLA |
| Battery Recharge Rate (Included Batteries) | Less than 6 hours from 10% to 80% (typical, full load discharge) |
| Undervoltage Correction | 2% output voltage regulation during undervoltages to 80 |
| Individually Controllable Load Banks | Yes |
| Internal UPS Replacement Battery Cartridge | RBC92-2U |
| Input Phase | Single-Phase |
| UPS AC Suppression Response Time | Instantaneous |
| Voltage Regulation Description | Online, double-conversion power conditioning |
| Nominal Output Voltage(s) Supported | 100 V, 110 V, 120 V |
| Battery Replacement Description | Hot-swappable, user replaceable batteries |
| AC Mode Efficiency Rating (100% Load) | 0.87 |
| UPS AC Suppression Joule Rating | 480 |
| Battery Access | Front panel battery access door |
| Communications Cable | USB and DB9 cabling included |
| UPS Power Module Dimensions (hwd, in.) | 3.5 x 17.5 x 13.5 |
| Cold Start (Startup in Battery Mode During a Power Failure) | Cold-start operation supported |
| Nominal Input Voltage(s) Supported | 100 V AC, 110 V AC, 120 V AC |
| Relative Humidity | 0 to 95%, non-condensing |
| UPS Certifications | Tested to UL1778 (USA); Tested to CSA (Canada); Meets FCC Part 15 Category B (EMI) |
| High Voltage Transfer to Battery Power (Setpoint) | 150 |
| Battery Mode BTU / Hr. (Full Load) | 333 |
| Output Voltage Regulation (Battery Mode) | +/- 2% |
| External Battery Pack Compatibility | BP24V15RT2U (limit 1); BP24V28-2U (limit 1); BP24V70-3U (multi-pack compatible); BP24V36-2US (multi-pack compatible) |
| Operating Temperature Range | +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius |
| WatchDog Compatibility | Supports Watchdog application, OS and hard-reboot restart options for remote applications |
| Crest Factor | 0.125694444444444 |
| Primary UPS Depth (mm) | 343 |
| Audible Alarm | Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions |
| Rack Height | 2 U |
| Half Load Runtime (min.) | 11 min |
| Output Volt Amp Capacity (VA) | 750 |
| Network Monitoring Port Description | Includes pre-installed Network Management Card; DB9 port supports RS232 and contact closure communications; Economy-mode setting option is available using PowerAlert software and DB9 Serial cable connection OR installed Network Management Card |
| Rated input current (Maximum Load) | 8.6A |
| Minimum Required Rack Depth with External Battery Pack (in.) | 16.5 |
| Input Circuit Breakers | 15A |
| Minimum Required Rack Depth without External Battery Pack (in.) | 16.5 |
| Primary UPS Height (mm) | 89 |
| Switches | 2 Switches control off/on power status and alarm-cancel/self-test operation |
| AC Mode BTU / Hr. (Full Load) | 306 |
| UPS Input Cord Length (ft.) | 6 |
| AC Economy Mode Efficiency Rating (100% Load) | 0.97 |
| Storage Temperature Range | +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius |
| Overvoltage Correction | 2% output voltage regulation during overvoltages to 150 |
| Output kVA Capacity (kVA) | 0.75 |
| LED Indicators | 14 LEDs indicate line power, online mode, bypass mode, on-battery, overload, battery low, replace battery and fault status information; 4-LED meter displays load and battery charge levels; LED panel rotates for viewing in rack/tower formats |
| Full Load Runtime (min.) | 4 min |
| PowerAlert Software | For local monitoring via the UPS™s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert |
| Communications Interface | Contact closure; DB9 Serial; EPO (emergency power off); Pre-installed network card; Slot for SNMP/Web interface; USB (HID enabled) |
| Output Watt Capacity (Watts) | 600 |
| Installation Form Factors Supported with Optional Accessories | 2 post rackmount ( 2POSTRMKITWM ); 2-4 post front rail rackmount ( UPSHDEARKIT ); 4 post rackmount short-depth ( 4POSTRAILKITWM ); Tower ( 2-9USTAND ); Wallmount ( 2POSTRMKITWM ) |
| Primary Form Factor | Rackmount |
| Output AC Waveform (Battery Mode) | Pure Sine wave |
| Alarm Cancel Operation | Power-fail alarm can be silenced using alarm-cancel switch |
| Cooling Method | Fan |
| Frequency Compatibility Details | Output frequency matches input nominal on startup, defaults to 60 Hz on cold-start |
| Power Factor | 0.8 |
| EMI / RFI AC Noise Suppression | Yes |
| Load Management Receptacles | Two switchable single-outlet 5-15R load banks |
| Expandable Runtime | Yes |
| Low Voltage Transfer to Battery Power (Setpoint) | 80V (100% load), 65V ( <70% load) |
| Recommended Electrical Service | 15A 120V |
| Severe Undervoltage Correction | 2% output voltage regulation during undervoltages to 65 (under 70% load only) |
| High Availability UPS Features | Automatic inverter bypass; Hot swappable batteries |
| Output Voltage Regulation (Line Mode) | +/- 2% |
| Included Mounting Accessory Description | Included 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to 914mm) |
| Expandable Battery Runtime | Extended runtime supported via optional external battery packs |
| UPS Dataline Suppression | 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet |
| Output Capacity Details | OVERLOAD CAPACITY: Supports inverter operation up to 105% load continuously, 125% load for 3 minutes; 150% load for 30 seconds and >150% load for 0.5 seconds before switching to BYPASS (when bypass input voltage and frequency are WITHIN bypass limits) or SHUTDOWN (when bypass input voltage or frequency are OUTSIDE bypass limits) |
| Installation Form Factors Supported with Included Accessories | 4 post 19 inch rackmount |
| DC System Voltage (VDC) | 24 |
| Load Capacity | 750 VA/600 W |
| Package Contents | SmartOnline SU750RTXL2UN 750VA Tower/Rack Mountable, PowerAlert Software and Cabling, Mounting Hardware for 4-post Rack Enclosures, Instruction Manual |
| Form Factor | Tower, Rack |
| Network Management Cards | WEBCARDLX |
| Output Capacity (Watts) | 600 |
| Product Certifications | CSA (Canada); UL 1778 |
| Product Compliance | FCC Part 15 Class B (USA) |
| UPS Applications | Mission Critical Applications |
| Output Capacity (VA) | 750 |
| Package Includes | SU750RTXL2U with pre-installed WEBCARDLX network interface;USB, DB9 and EPO cabling;Mounting hardware for 4-post rack enclosures;Instruction manual |
| Minimum Required Rack Depth (inches) | 16.5 |
| Package Quantity | 1 |
