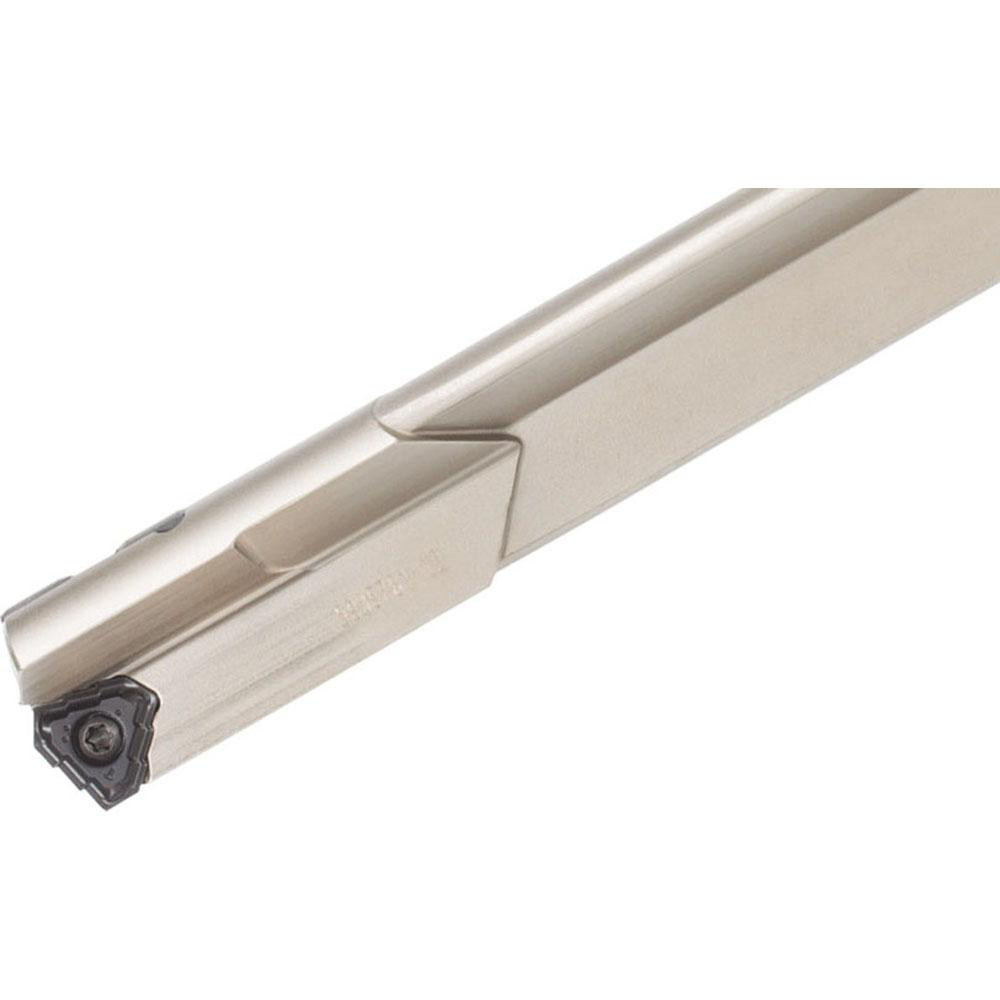

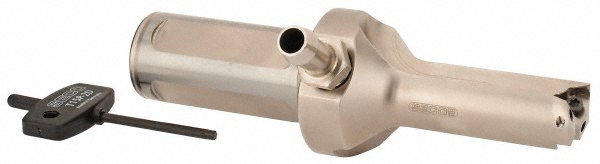

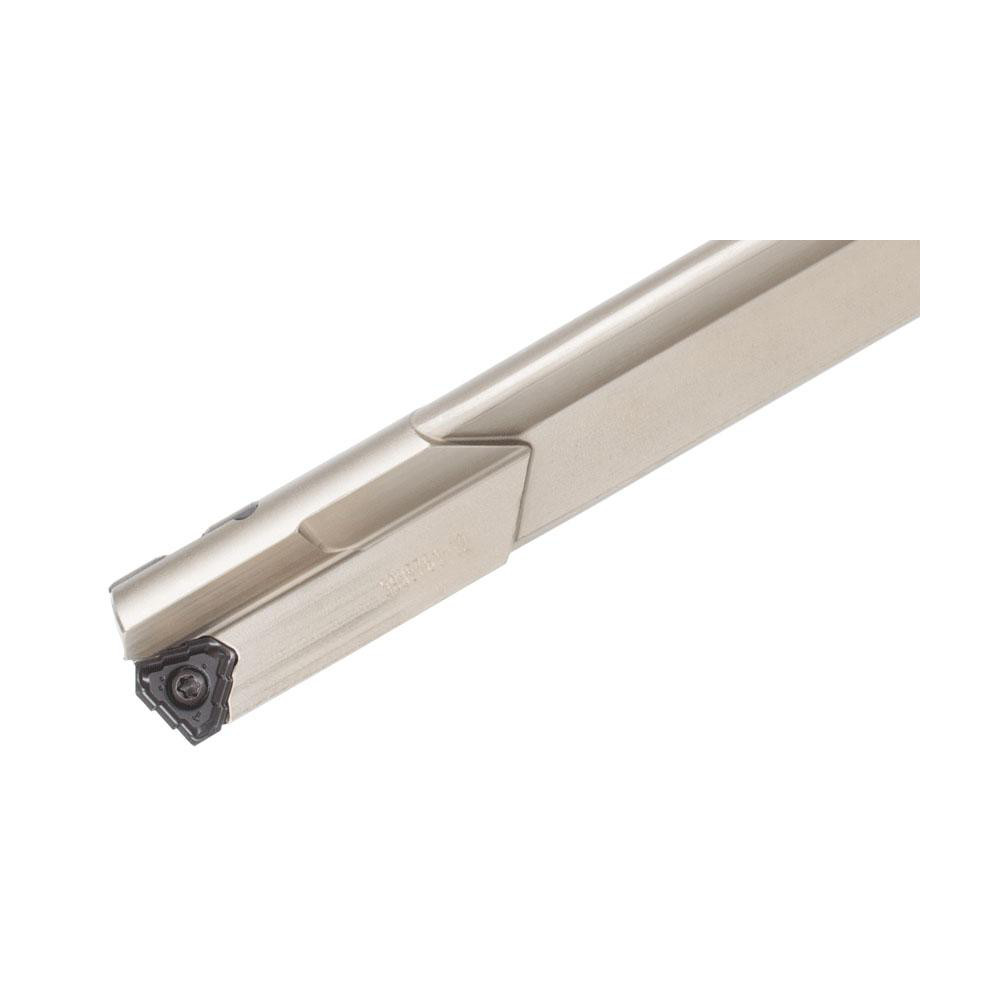

Weldon Flat & Flange Shank, Uses TOHT 120405 Inserts, Series MCTR
| Compatible Drill Style | MCTR |
|---|---|
| Maximum Drill Diameter (mm) | 26.97 |
| Maximum Drill Diameter (Inch) | 1-1/16 |
| Maximum Drill Diameter (Decimal Inch) | 1.0620 |
| Maximum Drill Depth (Decimal Inch) | 11.1690 |
| Maximum Drill Depth (mm) | 283.60 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (mm) | 31.75 |
| Number of Drill Inserts | 1 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 10.0000+ |
| Maximum Drill Depth Range (mm) | 200.00+ |
| Tool Material | Steel |
| Compatible Insert Style | TOHT |
| Compatible Insert Size Code | 120405 |
| Drill Depth by Diameter Ratio | 10xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Series | MCTR |

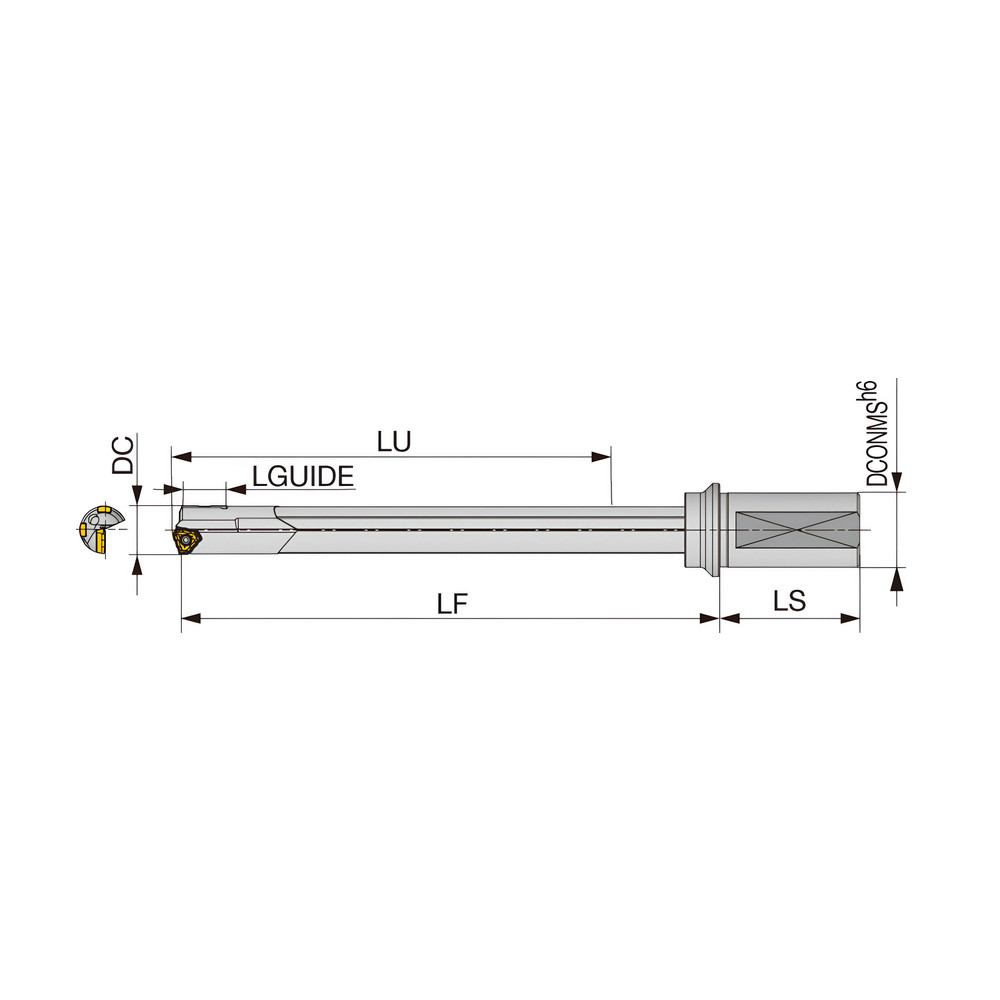

| Flute Length (mm) | 283.60 |
| Body Length (mm) | 335.00 |
| Body Length (Decimal Inch) | 13.1890 |
| Shank Length (Decimal Inch) | 2.3620 |
| Shank Length (mm) | 60.00 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (mm) | 11.59 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | TOHT120405 |
| Insert Lock Screw | SR14-506 |
| Coolant Through | Yes |
| Country of Origin | Japan |
| undefined | undefined |
| MSC Number | MSC# 06405211 |
