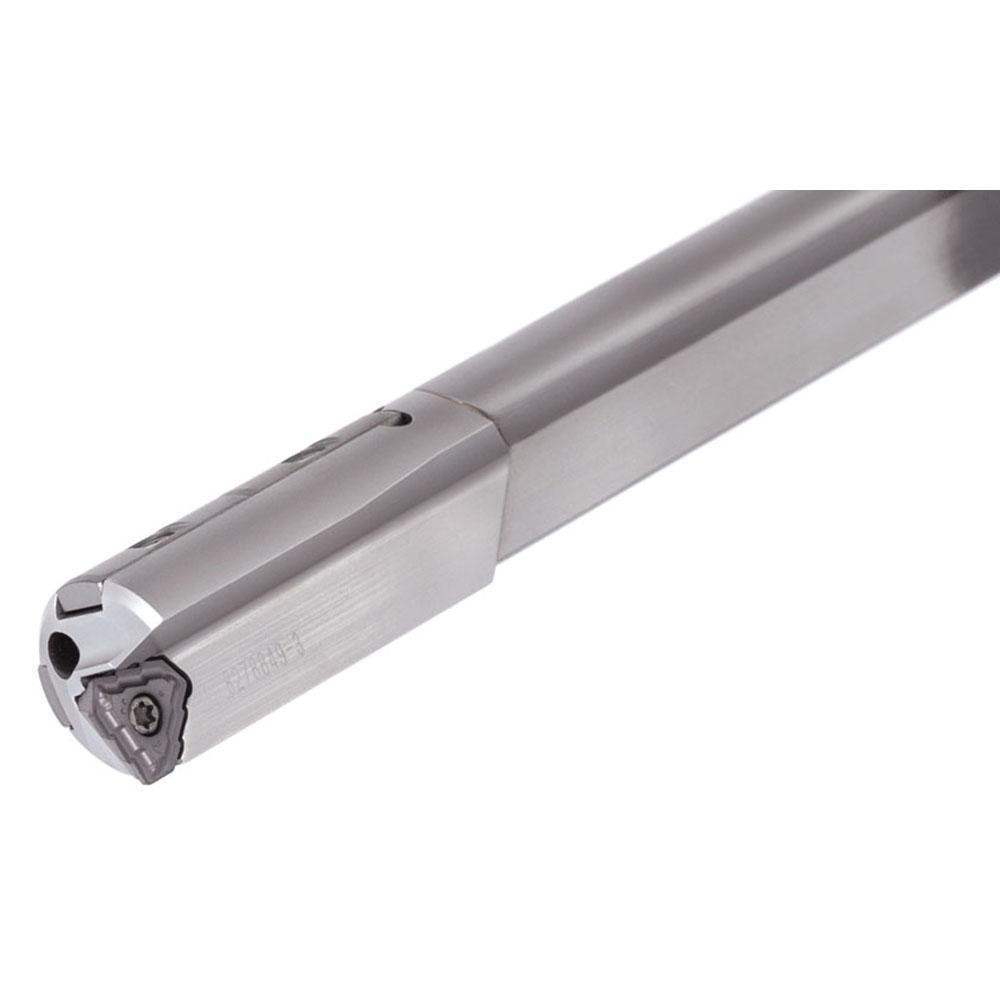

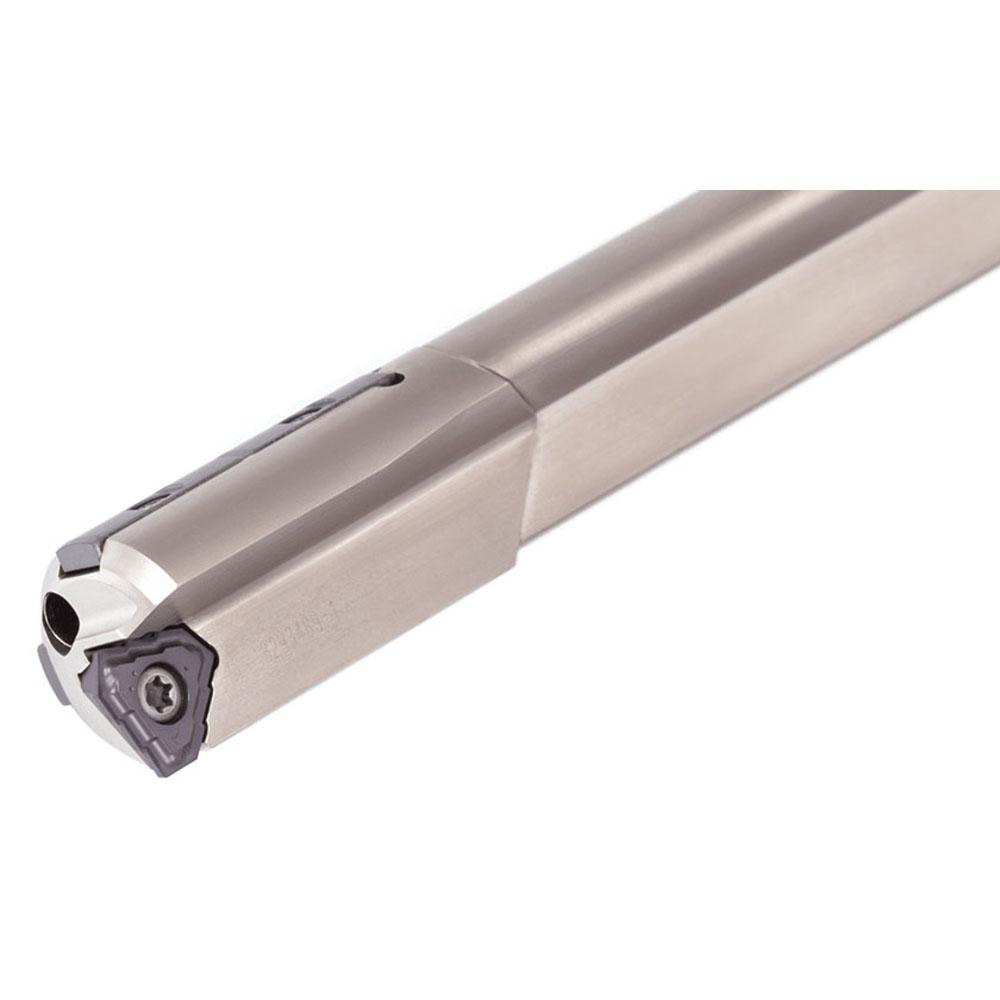

Weldon Flat Shank, Uses TOHT 070304 Inserts, Series TRLGCH
| Compatible Drill Style | TRLGCH |
|---|---|
| Maximum Drill Diameter (mm) | 14.68 |
| Maximum Drill Diameter (Inch) | 37/64 |
| Maximum Drill Diameter (Decimal Inch) | 0.5780 |
| Maximum Drill Depth (Decimal Inch) | 68.5040 |
| Maximum Drill Depth (mm) | 1740.00 |
| Shank Type | Weldon Flat |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (mm) | 31.75 |
| Number of Drill Inserts | 1 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 10.0000+ |
| Maximum Drill Depth Range (mm) | 200.00+ |
| Tool Material | Steel |
| Compatible Insert Style | TOHT |
| Compatible Insert Size Code | 070304 |
| Drill Depth by Diameter Ratio | 118.5xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Series | TRLGCH |
| Flute Length (mm) | 1740.00 |
| Body Length (mm) | 1762.00 |
| Body Length (Decimal Inch) | 72.0470 |
| Shank Length (Decimal Inch) | 2.7560 |
| Shank Length (mm) | 70.00 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (mm) | 7.69 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | TOHT070304 |
| Insert Lock Screw | SR14-560/S |
| Coolant Through | Yes |
| Country of Origin | Japan |
| undefined | undefined |
| MSC Number | MSC# 08027021 |
