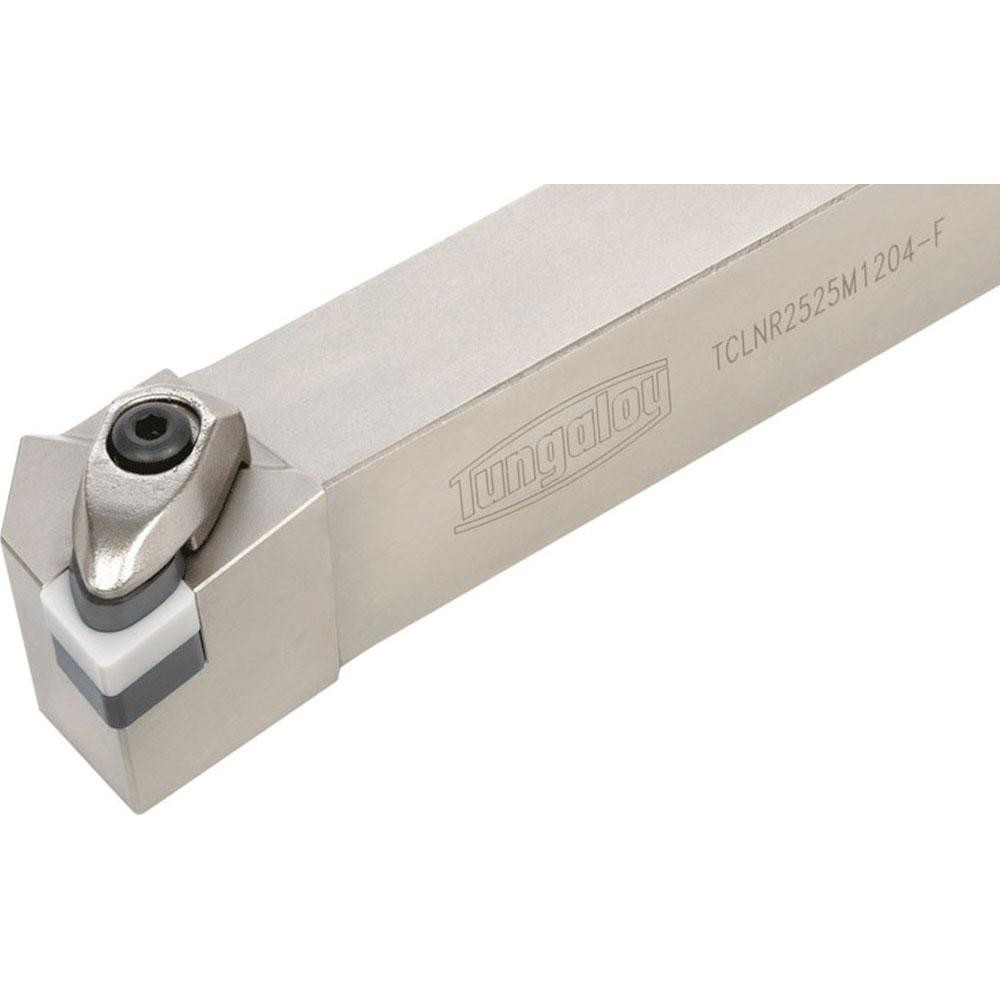

25.00 x 25.00 mm Shank, 150.0000 mm OAL
| Toolholder Style | TCLN |
|---|---|
| Hand of Holder | Right Hand |
| Lead Angle | 95.000 |
| Insert Compatibility | CN..43. |
| Insert Holding Method | Clamp |
| Shank Width (mm) | 25.00 |
| Shank Height (mm) | 25.00 |
| Rake | Negative |
| Cutting Direction | Right Hand |
| Compatible Insert Size Code | CN..43. |
| Multi-use Tool | Yes |
| Series | TCLN |
| Cutting Tool Application | Facing; Turning |
| Head Length (mm) | 32.00 |
| Back of Bar to Cutting Edge (mm) | 32.00 |
| Primary Workpiece Material | Superalloys & Titanium |
| Primary Workpiece Material Code | S |
| Insert Inscribed Circle (Inch) | 1/2 |
| Toolholder Material | Steel |
| UNSPSC Code | 23153308 |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Country of Origin | South Korea |
| MSC Number | MSC# 65191918 |
