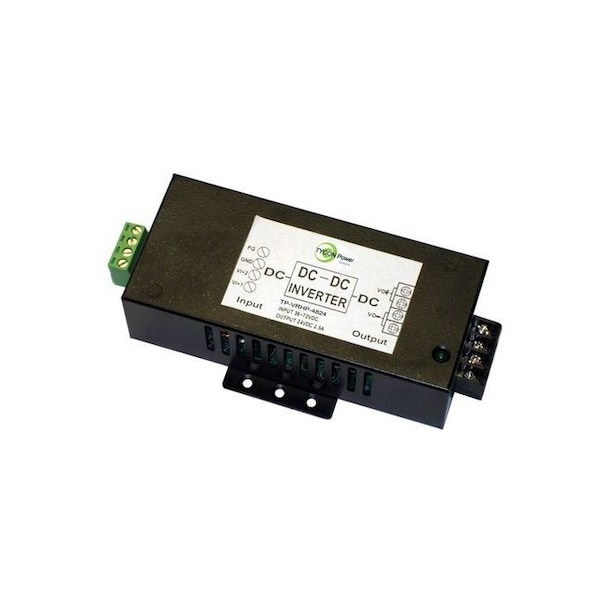

DC to DC Converter, 36-72V DC to 24V DC, 70VA, 0 Hz, DIN Rail, Metal
| Item | DC to DC Converter |
|---|---|
| Converts | 36-72V DC to 24V DC |
| VA Rating | 70 VA |
| Enclosure Material | Metal |
| Mounting | DIN Rail |
| Frequency | 0 Hz |
| Phase | Not Applicable |
| Height | 5.24 in |
| Width | 3 in |
| Depth | 1-1/2 in |
| Isolation Voltage / Ohms | 1500VDC Min. / 100M Ohms Min |
| Operating Humidity | 0 to 90% RH |
| DC Voltage Output | 24 VDC @ 2.5 A |
| Maximum Power | 60 W |
| DC Input Voltage Range | +/ - 36V to 72VDC |
| Efficiency | >85% |
| Wire Gauge | 12AWG Max |
| Protections | Short Circuit, Overvoltage, Overload |
| Ripple / Noise | 2% / 5% |
| Operating temperature | - 22°F to 149°F |
| Load / Line Regulation | 5% / 1% |
| Package Quantity | 1 |
