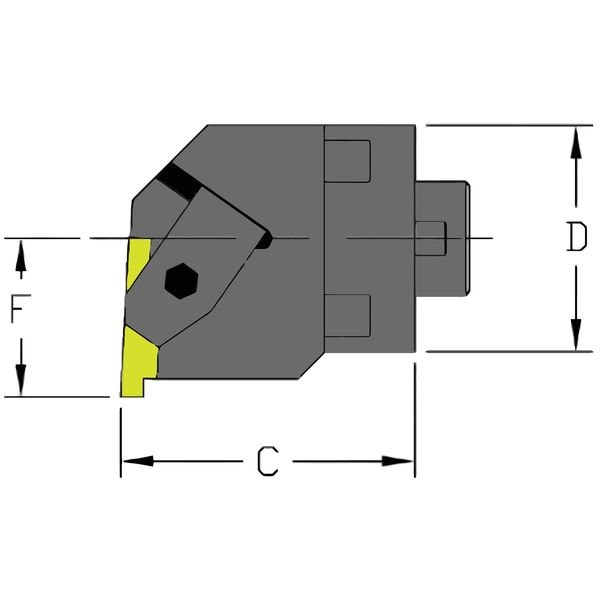

Grooving/Threading Cutting Unit Head, MH24 NER3-CFT, 1-5/8 in L, Steel, Top Notch Insert Shape
| Item | Grooving/Threading Cutting Unit Head |
|---|---|
| Overall Length | 1-5/8 in |
| Shank Material | Steel |
| Insert Shape | Top Notch |
| ANSI Code | MH24 NER3-CFT |
| Style | Chatter-Free |
| Bar Dia. | 1-1/2 in |
| Left/Right Hand | Right Hand |
| Cutting Edge Type | -3 Degrees |
| Type | Turning |
| Lead Angle | -3 Degrees |
| For Use With | NG 3L |
| ANSI Number | MH24 NER3-CFT |
| Mounting Style | Top Notch Clamp |
| Min. Bore | 2 in |
| Rake | Negative |
| Inscribed Circle | 3/8 in |
| Cutting Direction | Right Hand |
| Cutting Location | Internal |
| Min. Bore Dia. | 2 in |
| Seat Size | 3 |
| Coolant Fed | Coolant Through |
| Cutting Application | Threading, Grooving |
| Toolholder Style | MH.. NE |
| Insert Holding Type | Clamp |
| Compatible Hardware | Clamp CM72, Screw 10-32 |
| Product Family | Top Notch Grooving |
| Insert Style | NG 3R |
| Center to Cutting Tip | 1 in |
| ISO Number | MH24 NER3-CFT |
| Connection Size | MH24 |
| Package Quantity | 1 |
