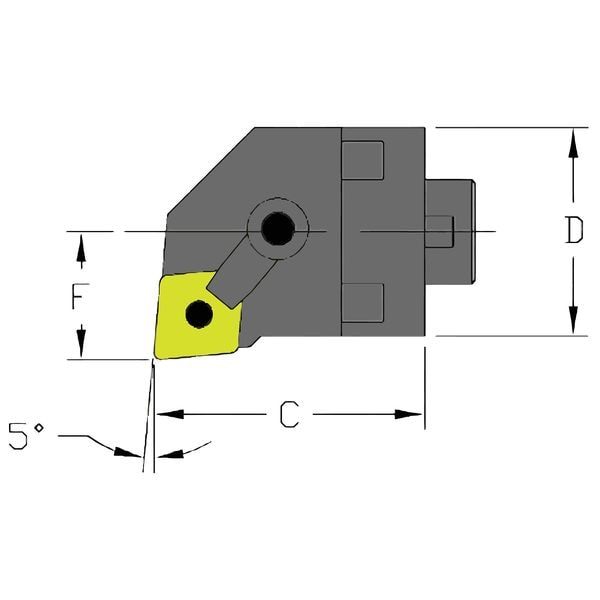

Indexable Cutting Head Unit, MH16 MCLNR4-CFT, 1-5/8 in L, Steel, 80 Degrees Diamond Insert Shape
| Item | Indexable Cutting Head Unit |
|---|---|
| Overall Length | 1-5/8 in |
| Shank Material | Steel |
| Insert Shape | 80 Degrees Diamond |
| ANSI Code | MH16 MCLNR4-CFT |
| Cutting Edge Type | -5 Degrees |
| Insert Thickness | 3/16 in |
| For Use With | CNMG 432 |
| Mounting Style | Clamp And Lock Pin |
| ANSI Number | MH16 MCLNR4-CFT |
| Rake | Negative |
| Style | Chatter-Free |
| Type | Turning |
| Bar Dia. | 1 in |
| Left/Right Hand | Right Hand |
| Inscribed Circle | 1/2 in |
| Lead Angle | -5 Degrees |
| Min. Bore | 1.2 in |
| Insert Size | 432 |
| Cutting Direction | Right Hand |
| Insert Holding Type | Clamp, Lock Pin |
| Insert Style | CNMG |
| Coolant Fed | Coolant Through |
| Insert Clearance Angle | 0 deg |
| Side Cutting Edge Angle | -5 deg |
| Min. Bore Dia. | 1.2 in |
| Hardware Required | Clamp CL-20, Clamp Screw XNS-47, Lock Pin NL-44 |
| Cutting Application | Boring |
| Toolholder Style | MCLN |
| Connection Size | MH16 |
| Compatible Hardware | Clamp CL-20, Clamp Screw XNS-47, Lock Pin NL-44 |
| Insert Inscribed Circle | 1/2 in |
| Center to Cutting Tip | 41/64 in |
| Package Quantity | 1 |
