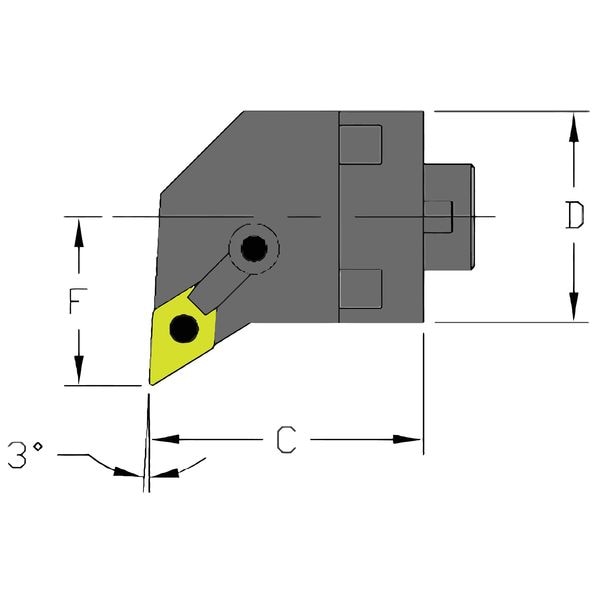

Indexable Cutting Head Unit, MH20 MDUNR3-CFT, 1-5/8 in L, Steel, 55 Degrees Diamond Insert Shape
| Item | Indexable Cutting Head Unit |
|---|---|
| Overall Length | 1-5/8 in |
| Shank Material | Steel |
| Insert Shape | 55 Degrees Diamond |
| ANSI Code | MH20 MDUNR3-CFT |
| Style | Chatter-Free |
| Bar Dia. | 1-1/4 in |
| Type | Turning |
| Cutting Edge Type | -3 Degrees |
| Mounting Style | Clamp And Lock Pin |
| Lead Angle | -3 Degrees |
| Left/Right Hand | Right Hand |
| Rake | Negative |
| Min. Bore | 1.705 in |
| Insert Thickness | 3/16 in |
| ANSI Number | MH20 MDUNR3-CFT |
| For Use With | DNMG 332 |
| Inscribed Circle | 3/8 in |
| Cutting Direction | Right Hand |
| Insert Size | 332 |
| Side Cutting Edge Angle | -3 deg |
| Connection Size | MH20 |
| Toolholder Style | MDUN |
| Insert Holding Type | Clamp, Lock Pin |
| Cutting Application | Boring |
| Min. Bore Dia. | 1.705 in |
| Hardware Required | Clamp CL-7, Clamp Screw XNS-36, Lock Pin NL-34L, Shim IDSN-322 |
| Insert Clearance Angle | 0 deg |
| Center to Cutting Tip | 1 in |
| Insert Style | DNMG |
| Coolant Fed | Coolant Through |
| Compatible Hardware | Clamp CL-7, Clamp Screw XNS-36, Lock Pin NL-34L, Shim IDSN-322 |
| Insert Inscribed Circle | 3/8 in |
| Package Quantity | 1 |
