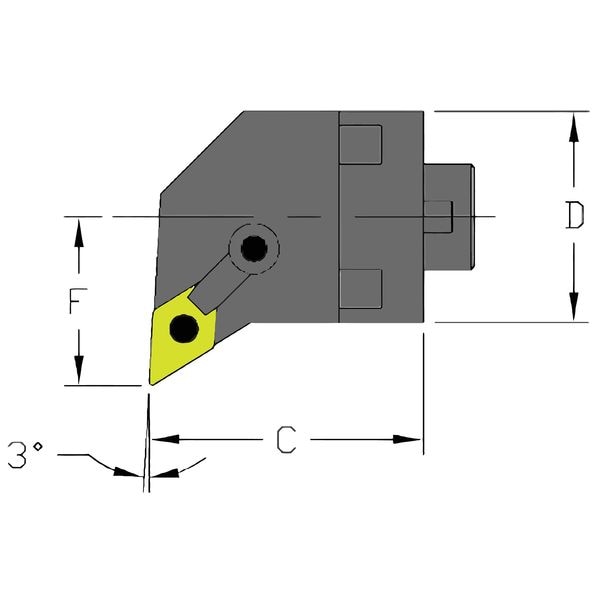

Indexable Cutting Head Unit, MH32 MDUNL4-CFT, 1-5/8 in L, Steel, 55 Degrees Diamond Insert Shape
| Item | Indexable Cutting Head Unit |
|---|---|
| Overall Length | 1-5/8 in |
| Shank Material | Steel |
| Insert Shape | 55 Degrees Diamond |
| ANSI Code | MH32 MDUNL4-CFT |
| Style | Chatter-Free |
| Insert Thickness | 3/16 in |
| ANSI Number | MH32 MDUNL4-CFT |
| Lead Angle | -3 Degrees |
| Min. Bore | 2-1/2 in |
| Mounting Style | Clamp And Lock Pin |
| Bar Dia. | 2 in |
| For Use With | DNMG 432 |
| Cutting Edge Type | -3 Degrees |
| Type | Turning |
| Inscribed Circle | 1/2 in |
| Rake | Negative |
| Left/Right Hand | Left Hand |
| Cutting Direction | Left Hand |
| Insert Size | 432 |
| Insert Clearance Angle | 0 deg |
| Insert Style | DNMG |
| Compatible Hardware | Clamp CL-22, Clamp Screw XNS-48, Lock Pin NL-46, Shim IDSN-433 |
| Cutting Application | Boring |
| Min. Bore Dia. | 2-1/2 in |
| Insert Holding Type | Clamp, Lock Pin |
| Connection Size | MH32 |
| Coolant Fed | Coolant Through |
| Insert Inscribed Circle | 1/2 in |
| Hardware Required | Clamp CL-22, Clamp Screw XNS-48, Lock Pin NL-46, Shim IDSN-433 |
| Side Cutting Edge Angle | -3 deg |
| Toolholder Style | MDUN |
| Center to Cutting Tip | 1-3/8 in |
| Package Quantity | 1 |
