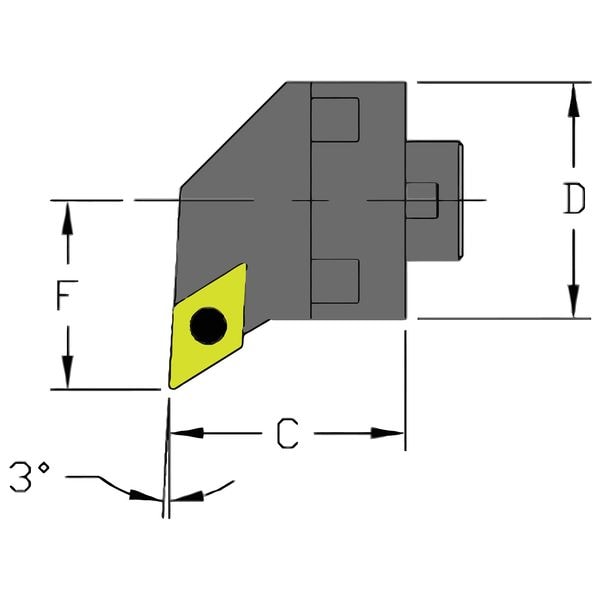

Indexable Cutting Head Unit, MH32 SDUCR3-CFT, 1-5/8 in L, Steel, 55 Degrees Diamond Insert Shape
| Item | Indexable Cutting Head Unit |
|---|---|
| Overall Length | 1-5/8 in |
| Shank Material | Steel |
| Insert Shape | 55 Degrees Diamond |
| ANSI Code | MH32 SDUCR3-CFT |
| Bar Dia. | 2 in |
| For Use With | DCMT 32.51 |
| Lead Angle | -3 Degrees |
| Style | Chatter-Free |
| Left/Right Hand | Right Hand |
| Min. Bore | 2.425 in |
| ANSI Number | MH32 SDUCR3-CFT |
| Cutting Edge Type | -3 Degrees |
| Insert Thickness | 0.1562 in |
| Type | Turning |
| Inscribed Circle | 3/8 in |
| Rake | Positive |
| Mounting Style | Screw Lock |
| Cutting Direction | Right Hand |
| Insert Size | 32.51 |
| Toolholder Style | SDUC |
| Insert Style | DCMT |
| Cutting Application | Boring |
| Side Cutting Edge Angle | -3 deg |
| Insert Clearance Angle | 7 deg |
| Compatible Hardware | Insert Screw MTS-35, Key T-15 |
| Insert Inscribed Circle | 3/8 in |
| Center to Cutting Tip | 1-3/8 in |
| Insert Holding Type | Screw On |
| Connection Size | MH32 |
| Hardware Required | Insert Screw MTS-35, Key T-15 |
| Coolant Fed | Coolant Through |
| Min. Bore Dia. | 2.425 in |
| Package Quantity | 1 |
