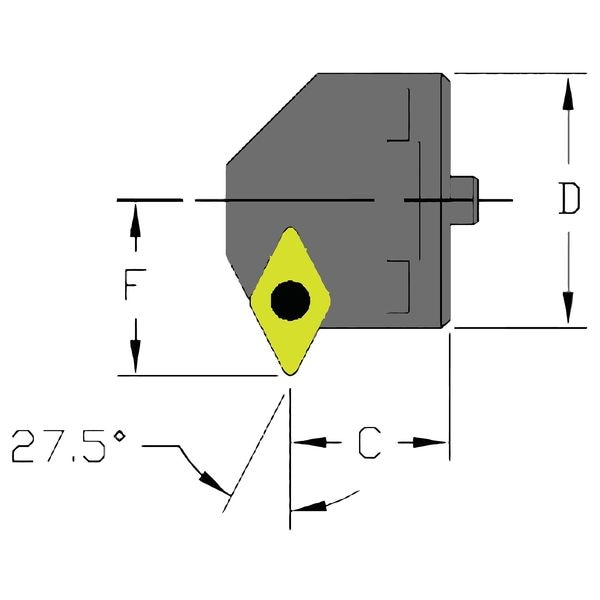

Indexable Cutting Head Unit, SH16 SDNCR2, 0.5910 in L, Steel, 55 Degrees Diamond Insert Shape
| Item | Indexable Cutting Head Unit |
|---|---|
| Overall Length | 0.591 in |
| Shank Material | Steel |
| Insert Shape | 55 Degrees Diamond |
| ANSI Code | SH16 SDNCR2 |
| Type | Turning |
| Inscribed Circle | 1/4 in |
| For Use With | DCMT 21.51 |
| Insert Thickness | 0.1562 in |
| Min. Bore | 1.299 in |
| Style | Chatter-Free |
| Mounting Style | Screw Lock |
| Lead Angle | 27.5 Degrees |
| ANSI Number | SH16 SDNCR2 |
| Rake | Positive |
| Cutting Edge Type | 27.5 Degrees |
| Bar Dia. | 0.984 in |
| Left/Right Hand | Right Hand |
| Cutting Direction | Right Hand |
| Insert Size | 21.51 |
| Center to Cutting Tip | 0.709 in |
| Min. Bore Dia. | 1.299 in |
| Insert Holding Type | Screw On |
| Insert Style | DCMT |
| Side Cutting Edge Angle | 27.5 deg |
| Toolholder Style | SDNC |
| Number of Coolant Holes | 1 |
| Connection Size | 25.00mm |
| Compatible Hardware | Insert Screw MTS-255, Key T-7 |
| Coolant Fed | Coolant Through |
| Insert Inscribed Circle | 1/4 in |
| Insert Clearance Angle | 7 deg |
| Cutting Application | Boring |
| Hardware Required | Insert Screw MTS-255, Key T-7 |
| Package Quantity | 1 |
