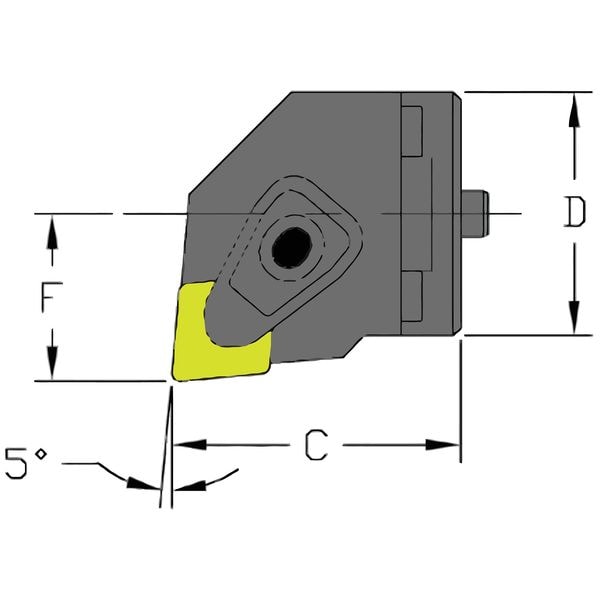

Indexable Cutting Head Unit, SH20 DCLNR4, 1.4960 in L, Steel, 80 Degrees Diamond Insert Shape
| Item | Indexable Cutting Head Unit |
|---|---|
| Overall Length | 1.496 in |
| Shank Material | Steel |
| Insert Shape | 80 Degrees Diamond |
| ANSI Code | SH20 DCLNR4 |
| Lead Angle | -5 Degrees |
| Insert Thickness | 3/16 in |
| Type | Turning |
| Min. Bore | 1.575 in |
| ANSI Number | SH20 DCLNR4 |
| Left/Right Hand | Right Hand |
| Bar Dia. | 1.26 in |
| Mounting Style | Pullback Clamp |
| Inscribed Circle | 1/2 in |
| For Use With | CNMG 432 |
| Rake | Negative |
| Cutting Edge Type | -5 Degrees |
| Style | Chatter-Free |
| Cutting Direction | Right Hand |
| Insert Size | 432 |
| Cutting Application | Boring |
| Insert Inscribed Circle | 1/2 in |
| Center to Cutting Tip | 0.866 in |
| Side Cutting Edge Angle | -5 deg |
| Number of Coolant Holes | 1 |
| Coolant Fed | Coolant Through |
| Min. Bore Dia. | 1.575 in |
| Insert Holding Type | Clamp |
| Insert Style | CNMG |
| Connection Size | 32.00mm |
| Toolholder Style | DCLN |
| Insert Clearance Angle | 0 deg |
| Compatible Hardware | Clamp Assembly PB4-CA, Shim Screw PB4-SS, Shim Seat ICSN-433 |
| Hardware Required | Clamp Assembly PB4-CA, Shim Screw PB4-SS, Shim Seat ICSN-433 |
| Package Quantity | 1 |
