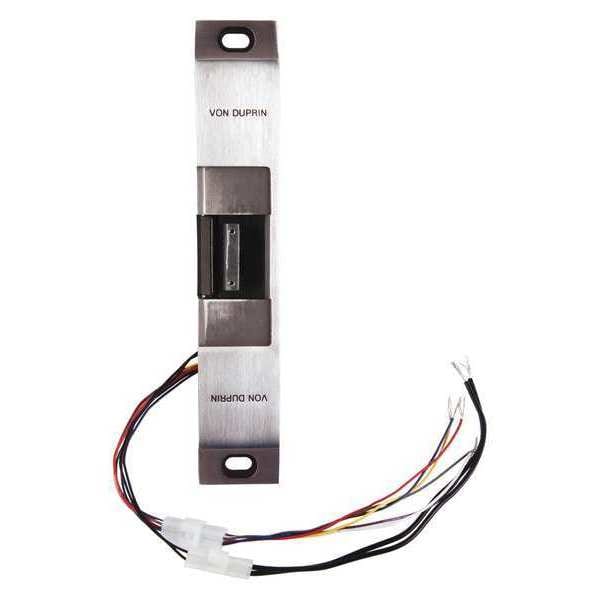

Electric Door Strike, Stainless Steel, Stainless steel, For Use With: Rim Exit Device
| Item | Electric Door Strike |
|---|---|
| Performance | Heavy-Duty |
| Failure Mode | Fail Secure |
| Input Voltage | 24V |
| Door Frame Type | Wood, Hollow Metal, Aluminum |
| Faceplate Depth | 2-7/16 in |
| Faceplate Height | 9 in |
| Faceplate Width | 1-5/8 in |
| Pull Force | 1,500 lb |
| Grade | 1 |
| Finish | Stainless steel |
| Bolt Throw | 3/4 in |
| Fire Rated | No |
| For Use With | Rim Exit Device |
| Strikes | 250,000 Cycles |
| Material | Stainless Steel |
| Features | Adjustable Strike Box, Dual Monitor Switch |
| Standards | UL 1034, UL 294 |
| Includes | (2) Plug Connectors |
| Strike Cycles | 250,000 |
| ANSI/BHMA Finish | Satin Stainless Steel |
| Includes Hardware | Hardware Included |
| Strike Type | Cylindrical, Mortise |
| Performance Grade | 1 |
| For Use with Door Material | Wood, Aluminum, Hollow Metal |
| UL Fire Rating | UL10C |
| Fire Rating | 3 hr |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
