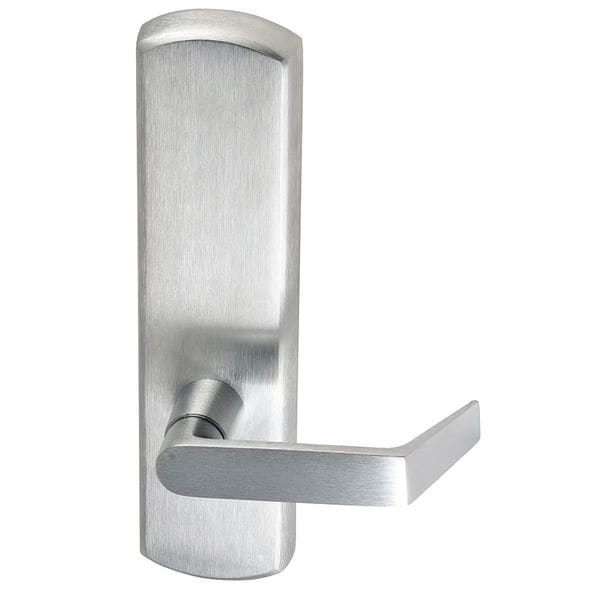

Lever Trim Passage, 98/99, RghtHand Rvrsbl
| Series | 98/99 |
|---|---|
| For Door Thickness | 1-3/4 in to 2-1/4 in |
| Fits Stile Width | 5 in |
| Door Handing | Right Hand Reversible |
| Finish | Satin Chrome |
| Fire Rated | Yes |
| Grade | 1 |
| Item | Mechanical Exit Device Trim |
| Color | Silver |
| Application | Heavy Traffic |
| ADA Compliant | Yes |
| Outside Trim Type | Lever |
| Standards | ANSI |
| Overall Length | 10-3/4 in |
| Max. Door Height | 96 in |
| Features | Always Operable, No Cylinder, ANSI Function 08 |
| Overall Width | 2-3/4 in |
| Performance | Heavy Duty |
| Max. Door Width | 48 in |
| Visual Indicator Message | No Message |
| Product Type | Mechanical Exit Device Trim |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Performance Grade | 1 |
| Exit Device Style | Lever |
| Visual Indicator Location | Not Applicable |
| For Use with Exit Device | Rim |
| Hand Orientation | Right-Handed |
| Door Height - Maximum | 96 in |
| Door Thickness - Maximum | 2-1/4 in |
| Door Thickness - Minimum | 1-3/4 in |
| Door Width - Maximum | 48 in |
| Length - Maximum | 10-3/4 in |
| Length - Minimum | Not Applicable |
| ANSI Grade | 1 |
| Door Width - Minimum | Not Applicable |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
