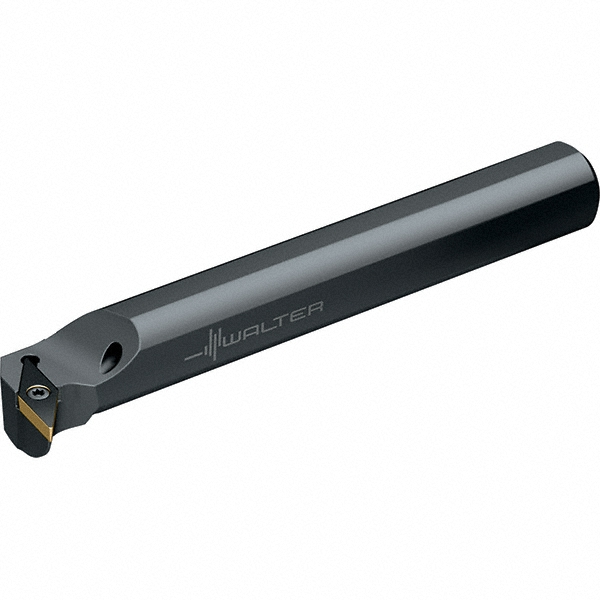

8.0000" OAL, Screw, Uses VB/C.. 1103.. & VB/C.. 22.. Inserts

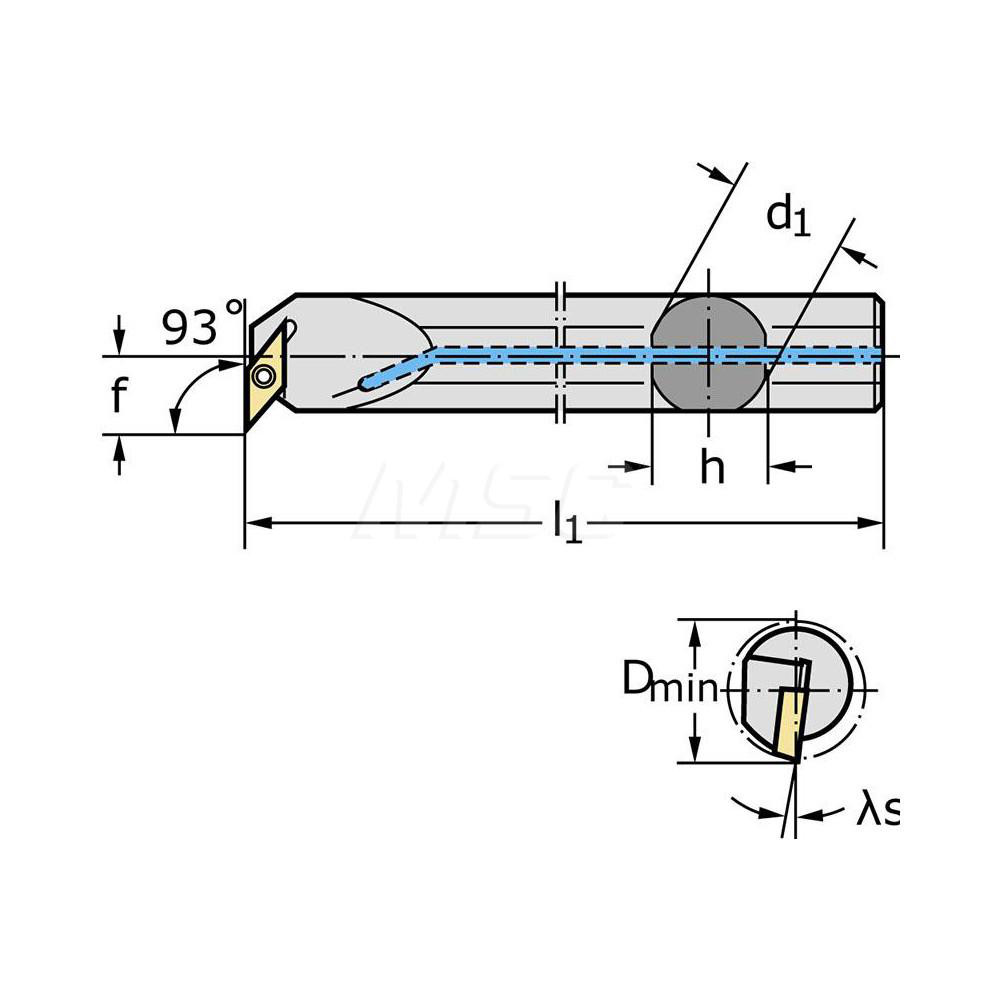

| Minimum Bore Diameter (Decimal Inch) | 0.8500 |
|---|---|
| Toolholder Style | A-SVUB |
| Tool Material | Steel |
| Insert Compatibility | VB/C.. 1103..; VB/C.. 22.. |
| Shank Diameter (mm) | 15.88 |
| Hand of Holder | Left Hand |
| Shank Diameter (Inch) | 5/8 |
| Overall Length (Decimal Inch) | 8.0000 |
| Compatible Insert Size Code | 22; 1103 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Diamond |
| Rake | Neutral |
| Lead Angle | 93 |
| Series | Walter Turn |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Inscribed Circle (mm) | 6.35 |
| Compatible Insert Thickness (mm) | 3.18 |
| Multi-use Tool | No |
| Cutting Tool Application | Boring |
| Center to Cutting Edge (Decimal Inch) | 0.4860 |
| Standards | ISO; ANSI |
| UNSPSC Code | 23241601 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Insert Thickness (Inch) | 1/8 |
| Coolant Through | Yes |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 91051029 |
