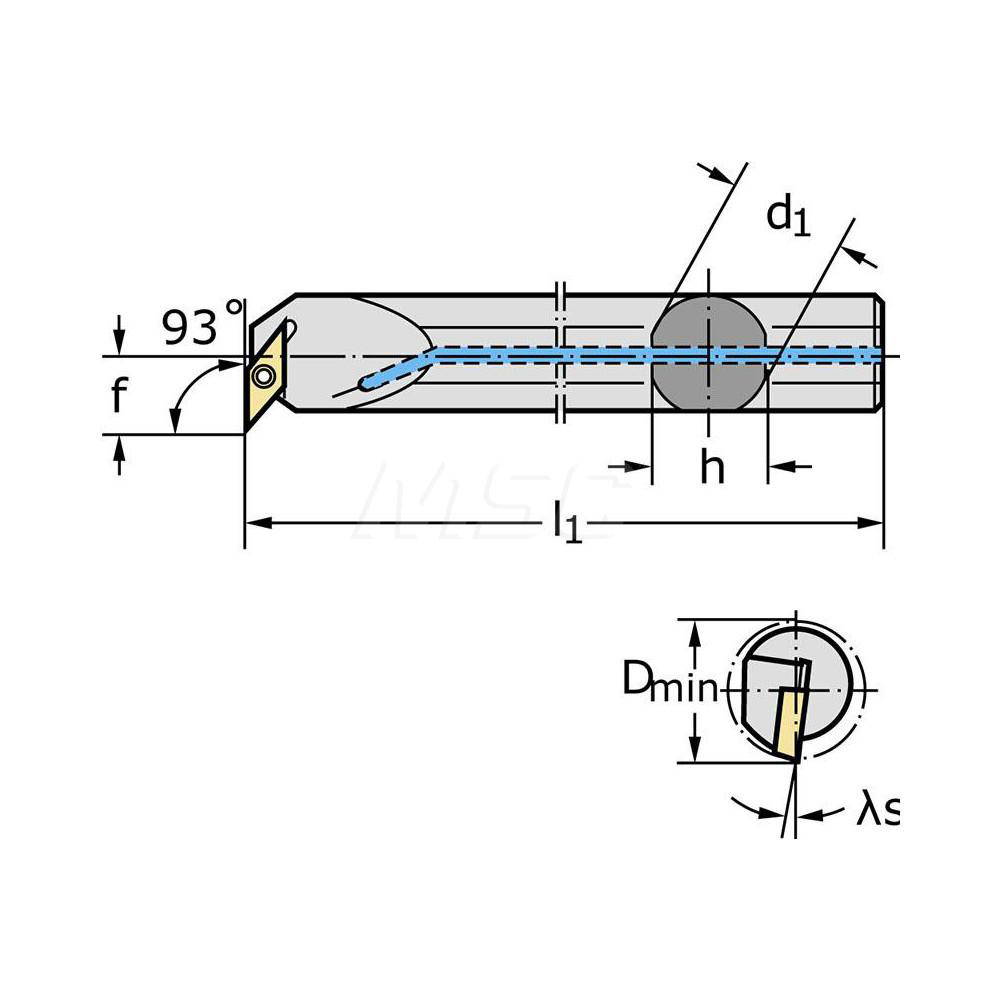

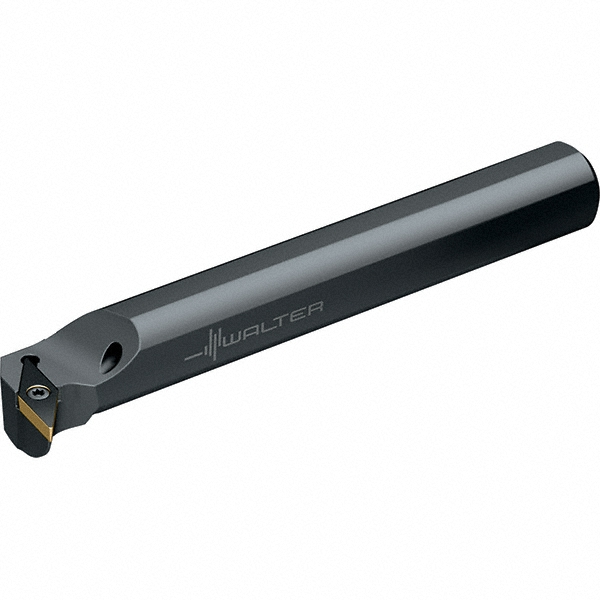

12.0000" OAL, Screw, Uses VB/C.. 1604.. & VB/C.. 33.. Inserts
| Minimum Bore Diameter (Decimal Inch) | 1.7050 |
|---|---|
| Toolholder Style | A-SVUB |
| Tool Material | Steel |
| Insert Compatibility | VB/C.. 1604..; VB/C.. 33.. |
| Hand of Holder | Left Hand |
| Shank Diameter (Inch) | 1-1/4 |
| Overall Length (Decimal Inch) | 12.0000 |
| Compatible Insert Size Code | 33; 1604 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Triangle |
| Rake | Neutral |
| Lead Angle | 93 |
| Series | Walter Turn |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Inscribed Circle (mm) | 9.53 |
| Compatible Insert Thickness (mm) | 4.76 |
| Multi-use Tool | No |
| Cutting Tool Application | Boring |
| Center to Cutting Edge (Decimal Inch) | 1.0000 |
| Standards | ISO; ANSI |
| UNSPSC Code | 23241601 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Thickness (Inch) | 3/16 |
| Coolant Through | Yes |
| Country of Origin | Sweden |
| MSC Number | MSC# 53041372 |
