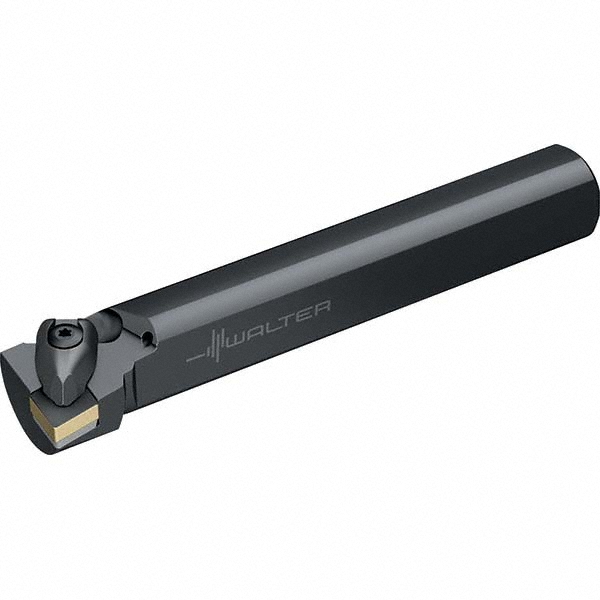

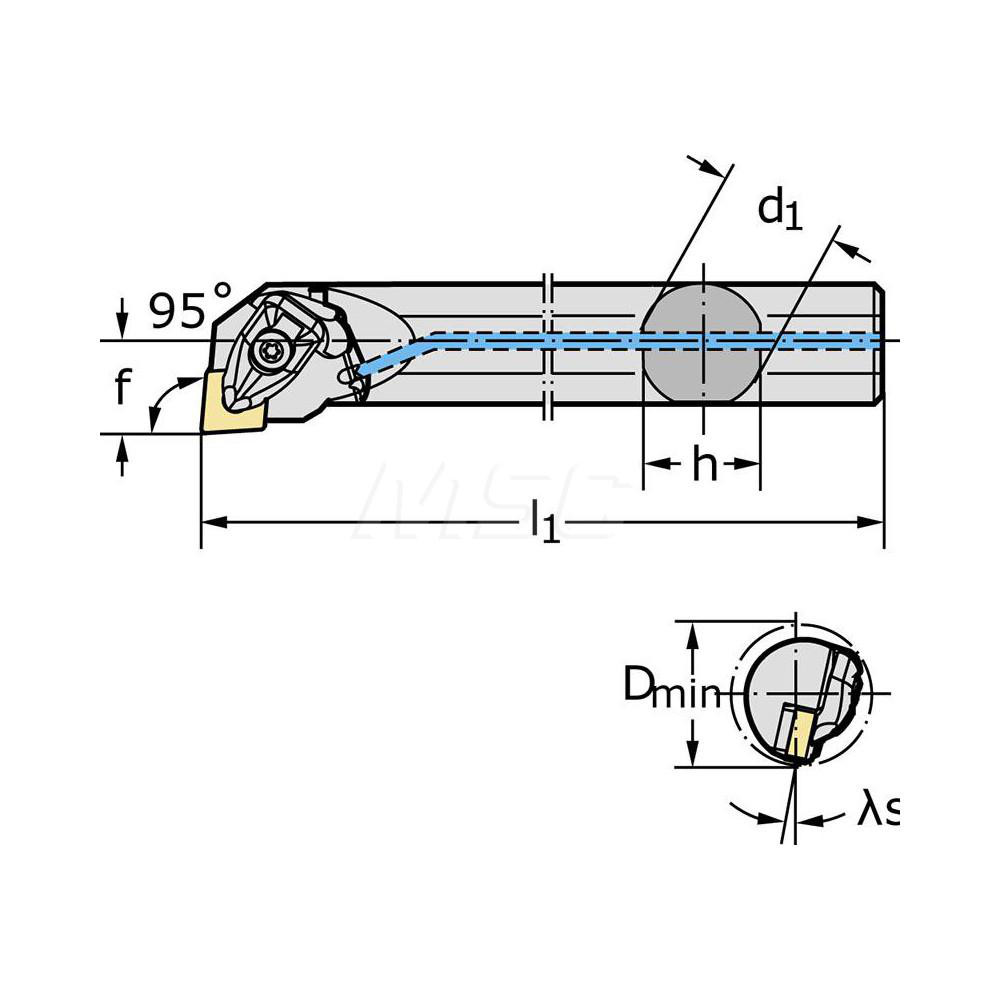

12.0000" OAL, Clamp, Uses CN.. 1606.. & CN.. 54.. Inserts
| Minimum Bore Diameter (Decimal Inch) | 1.7600 |
|---|---|
| Toolholder Style | A-DCLN |
| Tool Material | Steel |
| Insert Compatibility | CN.. 1606..; CN.. 54.. |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 1-1/2 |
| Overall Length (Decimal Inch) | 12.0000 |
| Overall Length (Inch) | 12 |
| Compatible Insert Size Code | 1606; 54 |
| Insert Holding Method | Clamp |
| Compatible Insert Shape | Diamond |
| Rake | Negative |
| Rake Angle | -6.00 |
| Lead Angle | 95 |
| Series | Walter Turn |
| Insert Inscribed Circle (Inch) | 5/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.6250 |
| Insert Inscribed Circle (mm) | 15.88 |
| Compatible Insert Thickness (mm) | 6.35 |
| Multi-use Tool | No |
| Cutting Tool Application | Boring |
| Center to Cutting Edge (Decimal Inch) | 0.8900 |
| Standards | ISO; ANSI |
| UNSPSC Code | 23241601 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Insert Thickness (Inch) | 1/4 |
| Coolant Through | Yes |
| Country of Origin | Sweden |
| MSC Number | MSC# 44656676 |
