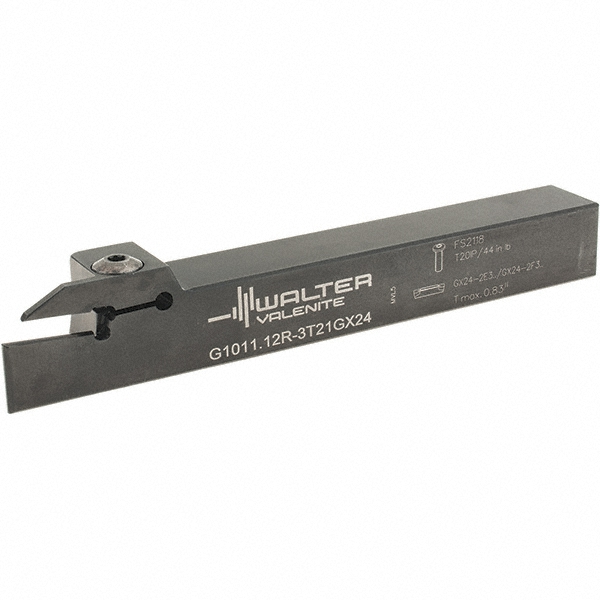

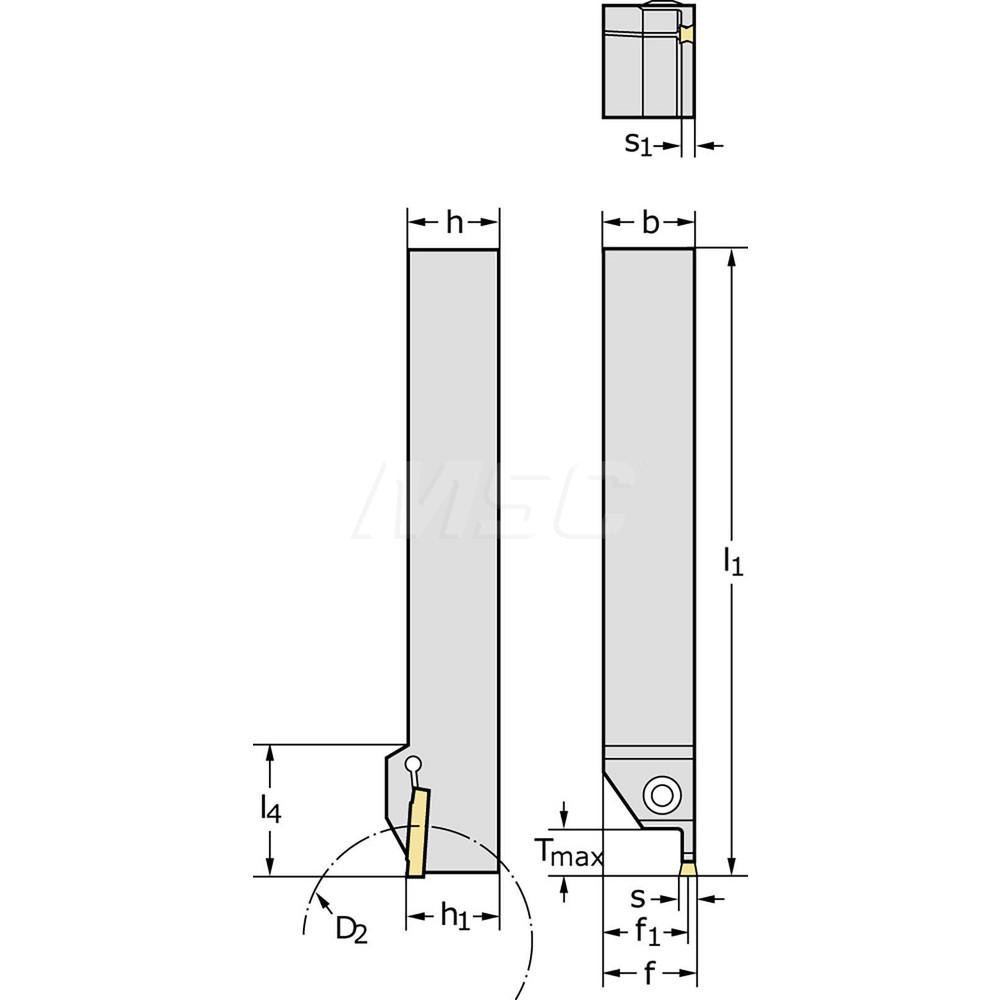

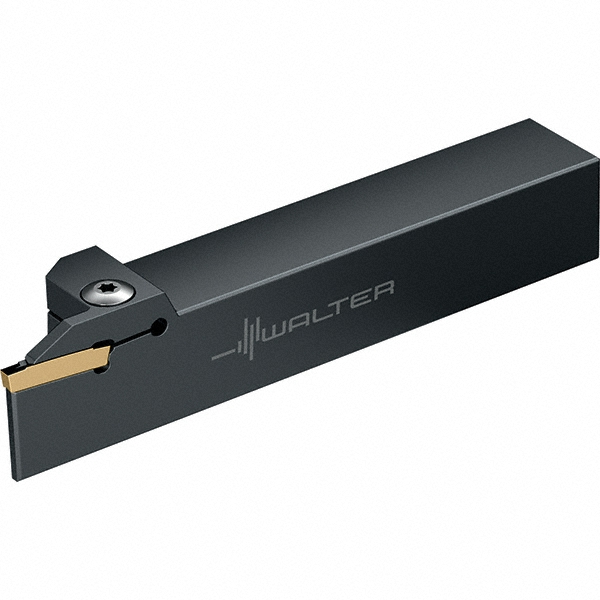

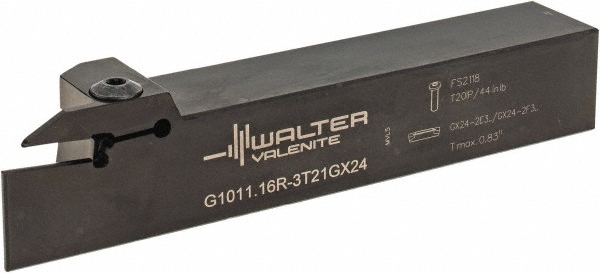

Uses GX16-1E2/F2.. Inserts, 12.7 x 12.7 mm Shank, Series G1011
| Internal or External | External |
|---|---|
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Maximum Depth of Cut (mm) | 12.00 |
| Maximum Groove Width (Decimal Inch) | 0.0787 |
| Maximum Groove Width (mm) | 2.00 |
| Minimum Groove Width (Decimal Inch) | 0.0787 |
| Toolholder Style | G1011 |
| Insert Holding Method | Screw |
| Compatible Insert Size Code | GX16-1E2/F2 |
| Insert Compatibility | GX16-1E2/F2.. |
| Shank Height (mm) | 12.70 |
| Shank Height (Decimal Inch) | 0.5000 |
| Shank Length (mm) | 90.00 |
| Shank Length (Decimal Inch) | 3.5433 |
| Shank Width/Diameter (Decimal Inch) | 0.5000 |
| Shank Width/Diameter (mm) | 12.70 |
| Series | G1011 |
| Overall Length (mm) | 121.50 |
| Overall Length (Decimal Inch) | 4.7835 |
| Cutting Tool Application | Grooving; Cut-Off |
| Full Radius Insert | No |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5079 |
| Head Length (Decimal Inch) | 1.2402 |
| Head Length (mm) | 31.50 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Complete Insert Compatibility | GX16-1E200N10-RD4; GX16-1E200N020-UF4; GX16-1E200N020-GD3; GX16-1E200N02-GD6; GX16-1E200N02-GD3; GX16-1E200N02-CF6; GX16-1E200N02-CE4; GX16-1E200N02-CF5; GX16-1E200N020-CF6; GX16-1E200N020-UA4; GX16-1E200R/L6-CE4; GX16-1E200N02-UD6; GX16-1E200N02-UF4 |
| Insert Corner Radius (Decimal Inch) | 0.0469 |
| Coolant Through | No |
| UNSPSC Code | 23153308 |
| Country of Origin | Romania |
| MSC Number | MSC# 65483703 |
