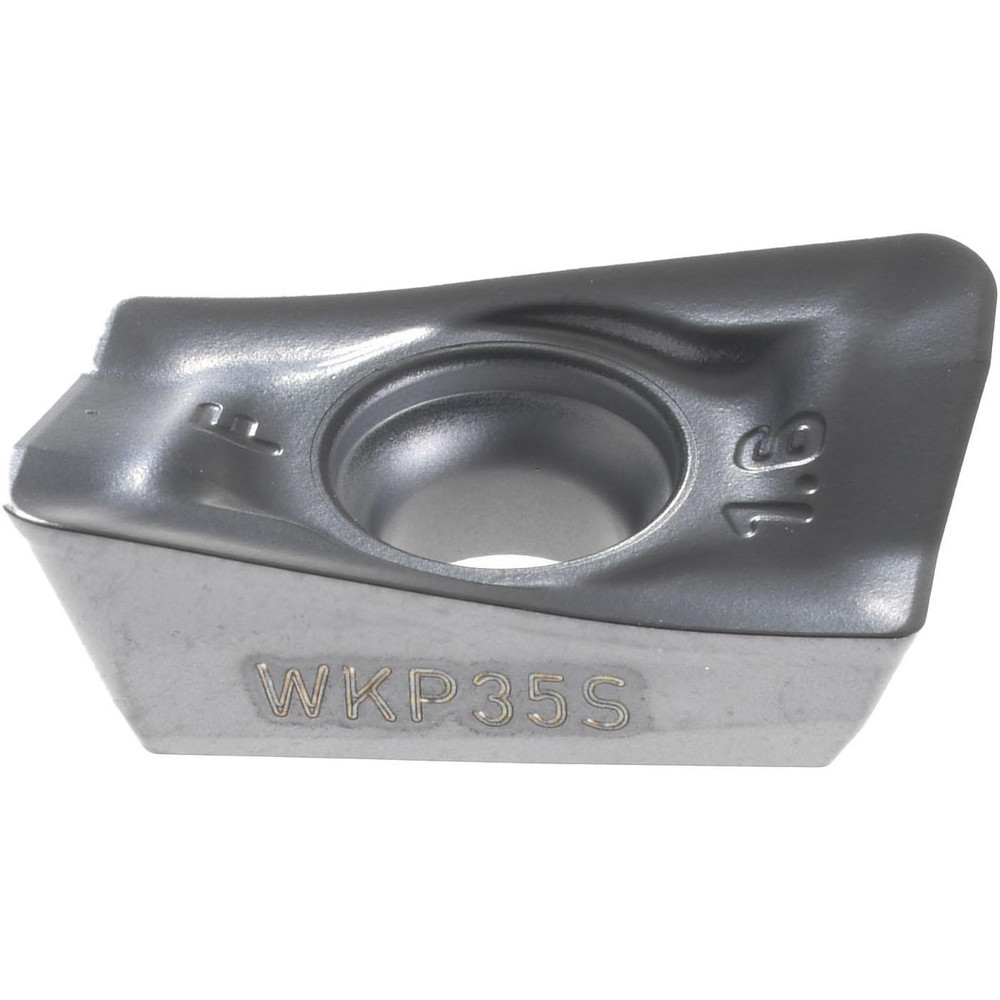

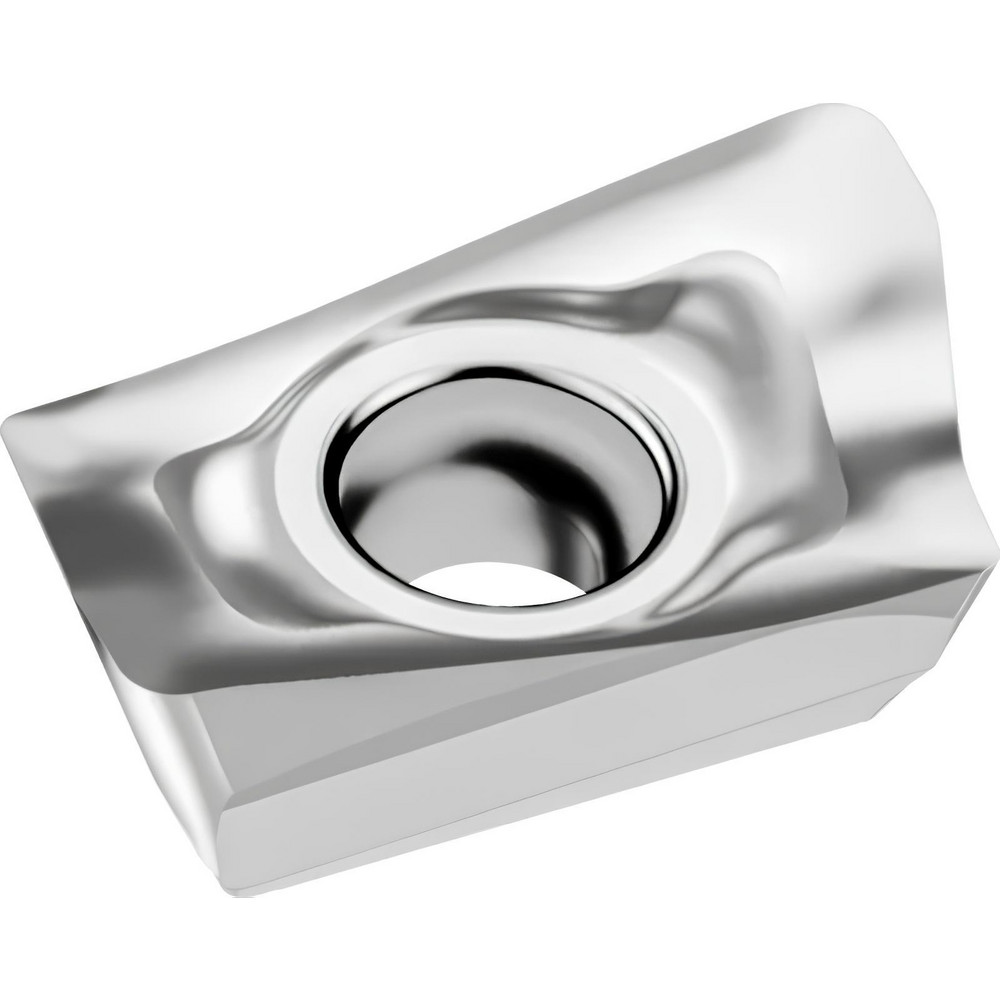

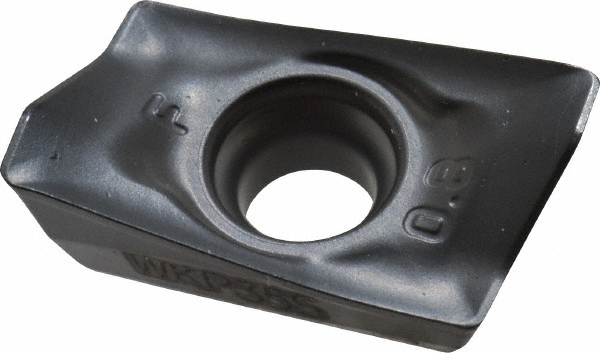

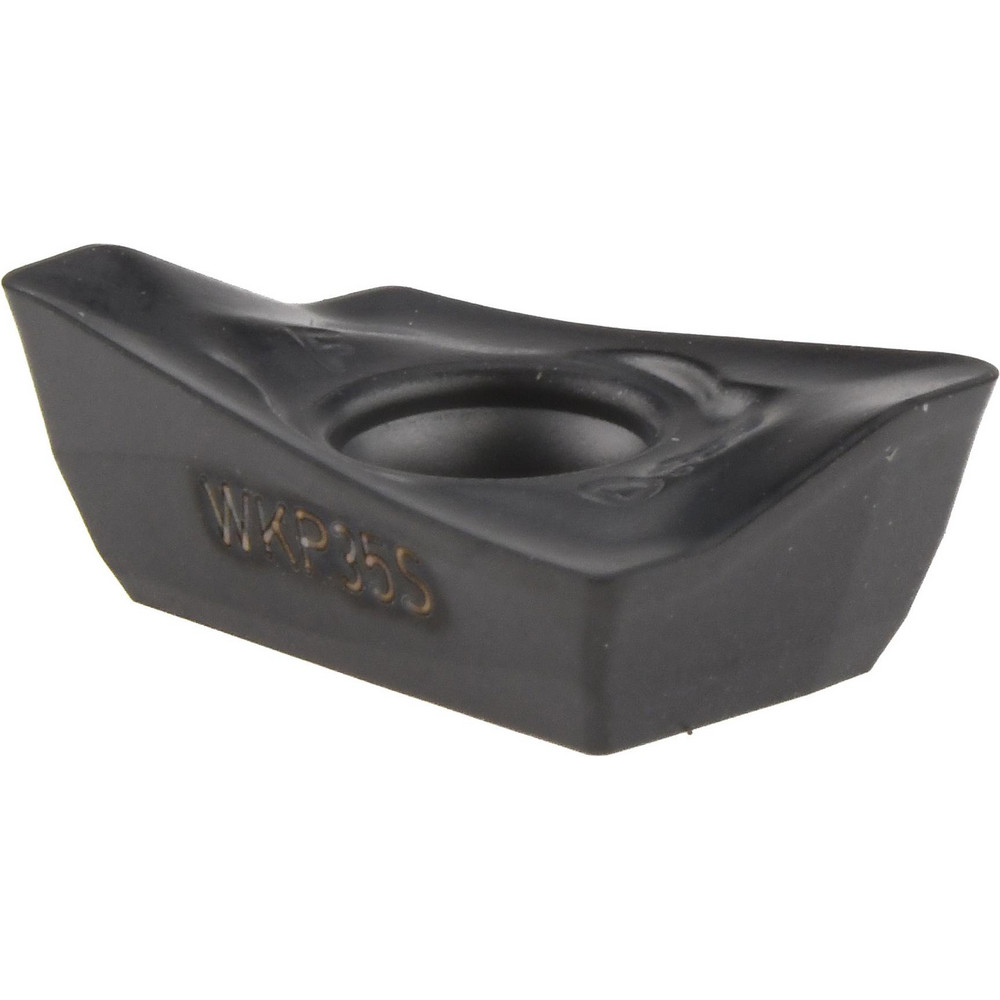

TiCN, Al2O3 & TiCN Finish, 0.2420" Thick, 0.4250" Wide
| Insert Style | ADMT |
|---|---|
| Insert Size | 16 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | WKP35S |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2420 |
| Coating/Finish | TiCN; Al2O3 |
| Relief Angle | 15.00 |
| Insert Size Code | 160608 |
| Material Grade | P35; K35 |
| Inscribed Circle (Decimal Inch) | 0.4250 |
| Thickness Range (Decimal Inch) | 0.2350 to 0.2500 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.4000 to 0.5000 |
| Length Range (Decimal Inch) | 0.6500 to 0.7000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.6890 |
| Series | ADMT |
| Coating Process | CVD |
| Rake | Positive |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Ansi Code | ADMT160608R-D56 WKP35S |
| Iso Code | ADMT160608R-D56 WKP35S |
| Standards | ISO; ANSI |
| Rake Angle | 10 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | ADMT160608R-D56 |
| Cutter Series Compatibility | F2010; F4042; F4238 |
| Chip Breaker | D56 |
| UNSPSC Code | 23291601 |
| Material Application | Cast Iron; Steel |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 85 |
| Width (Decimal Inch - 4 Decimals) | 0.4250 |
| Width (mm - 2 Decimals) | 10.80 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6890 |
| Country of Origin | Germany |
| MSC Number | MSC# 43484252 |
