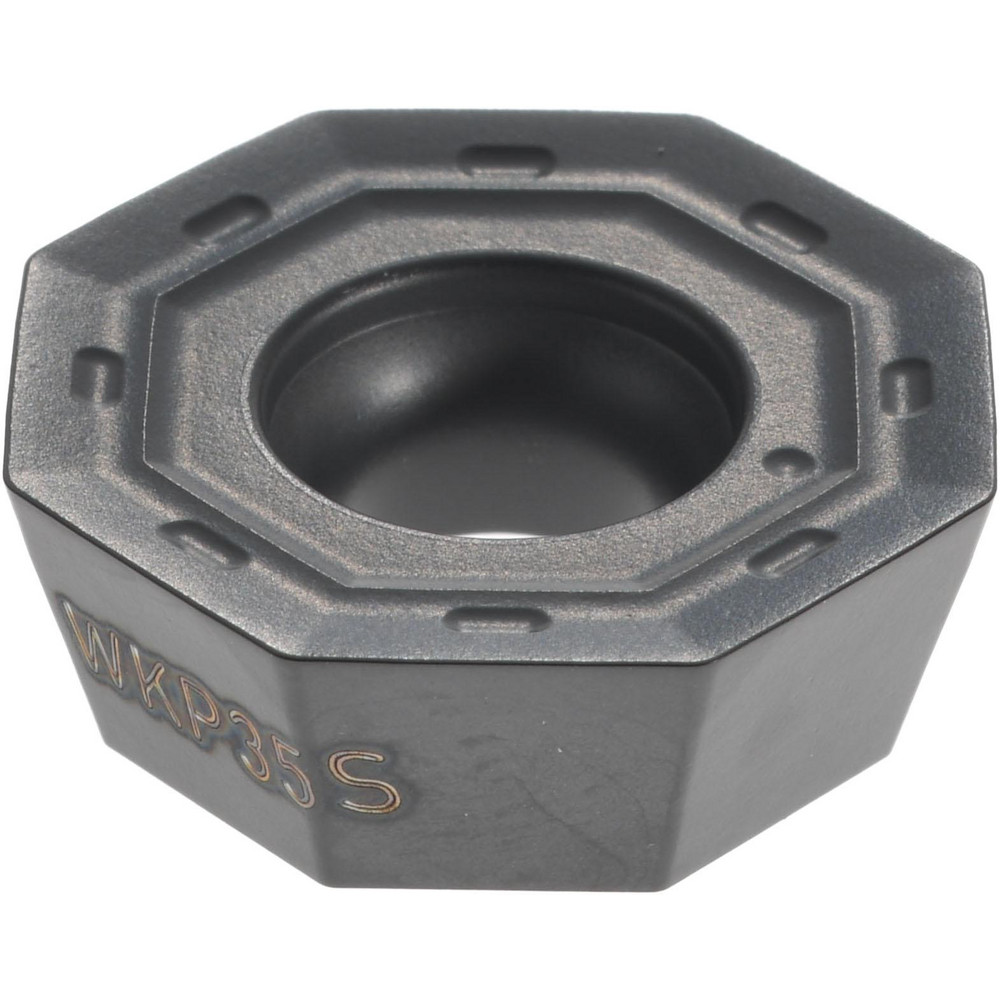

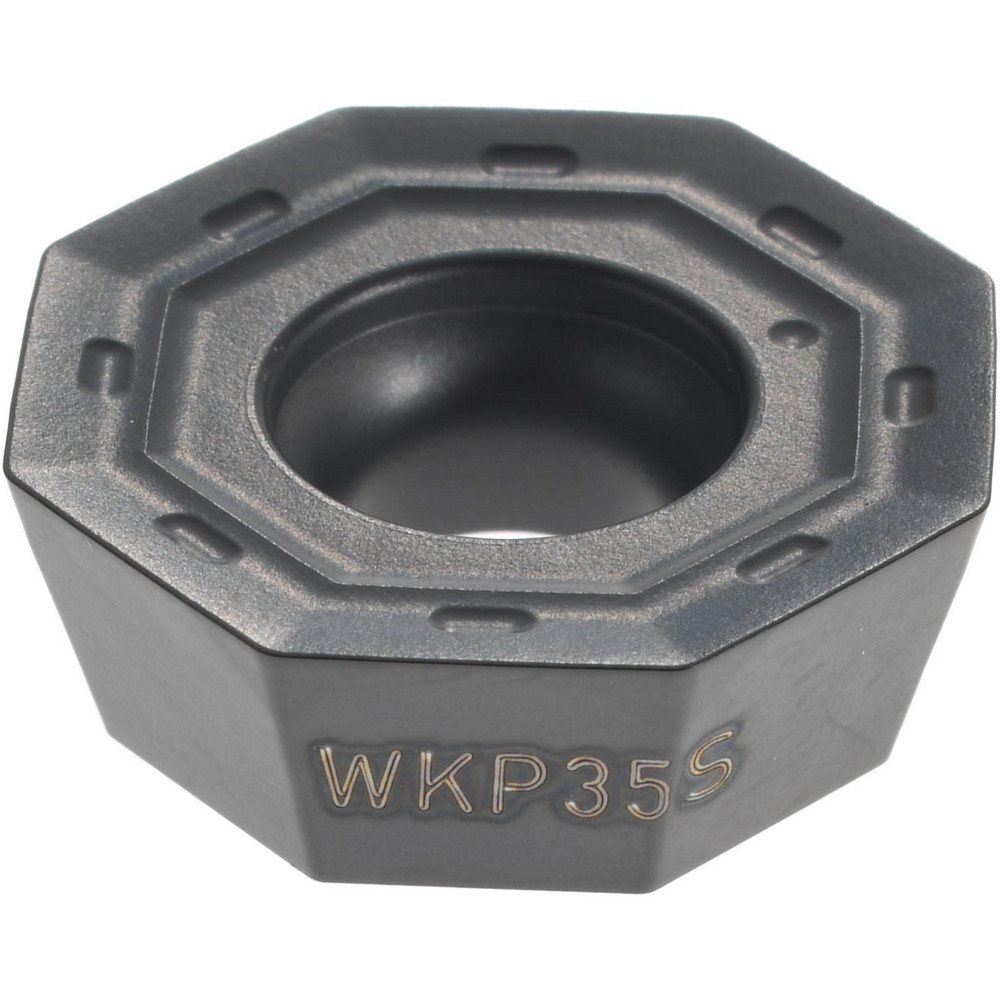

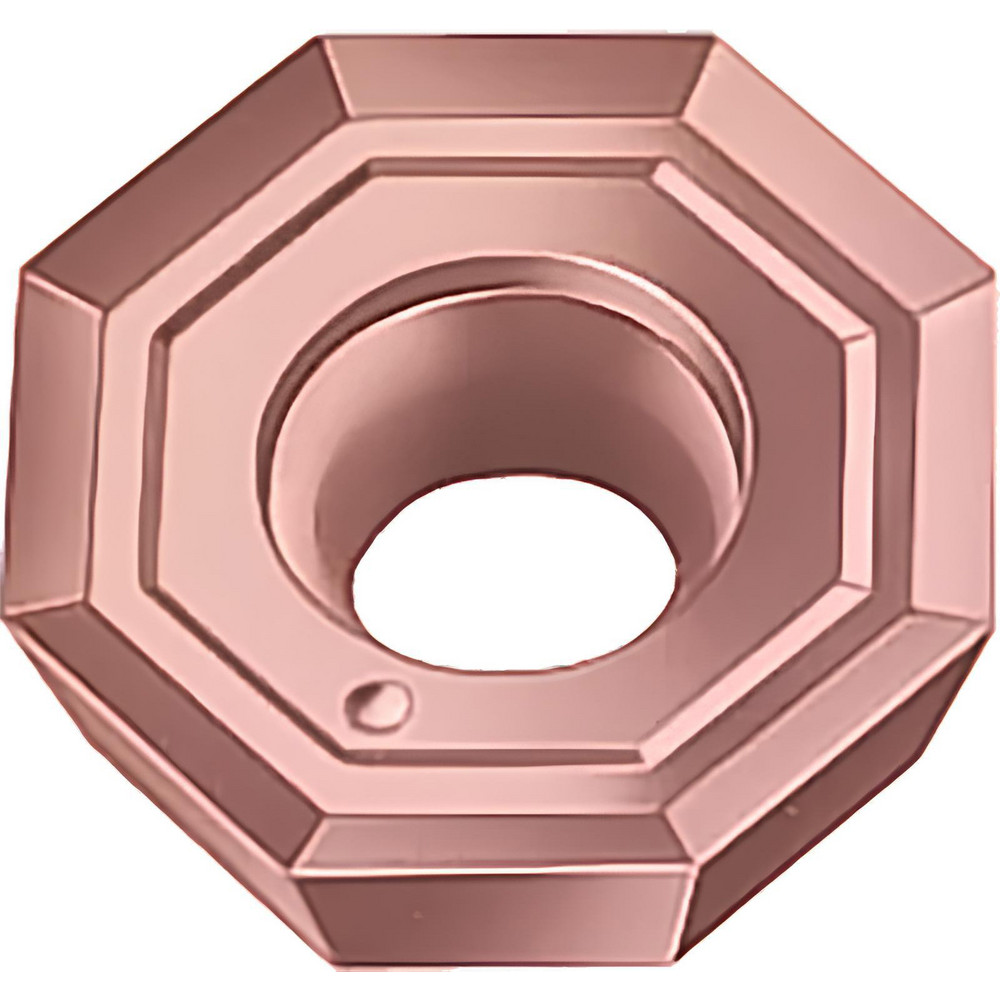

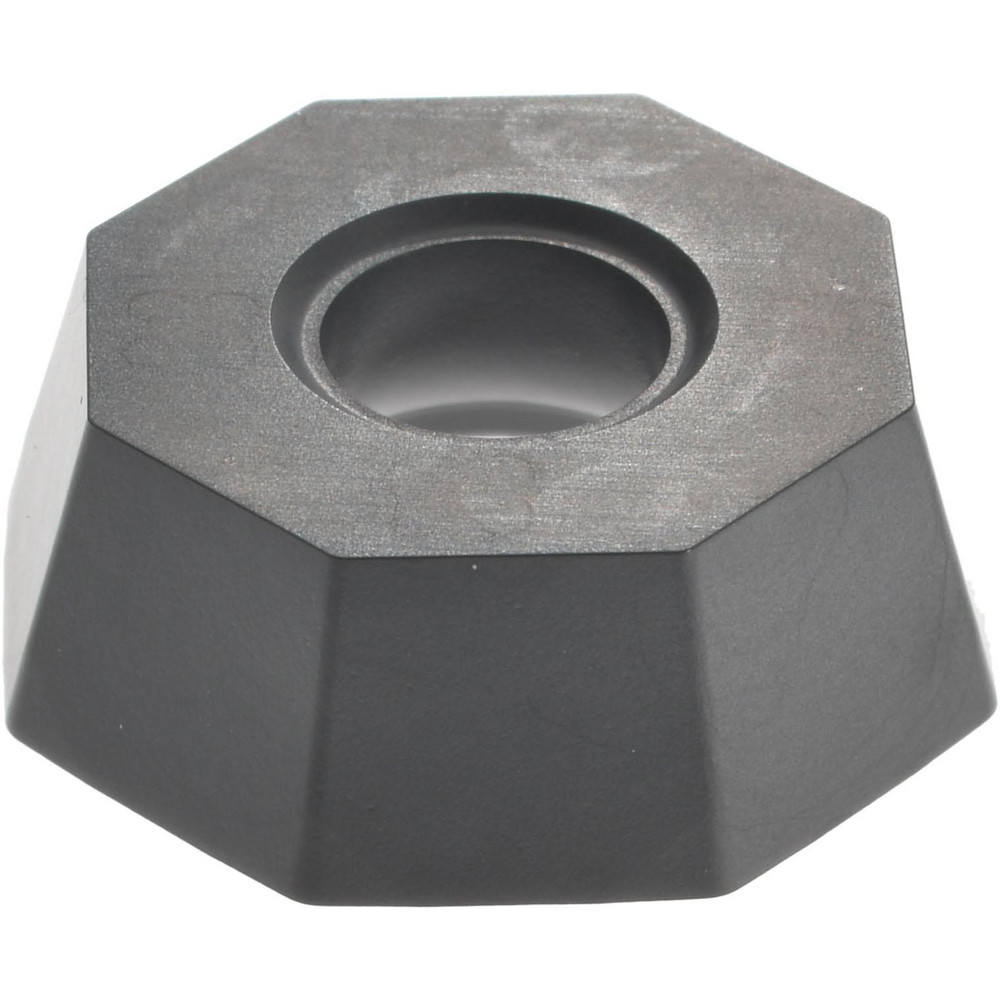

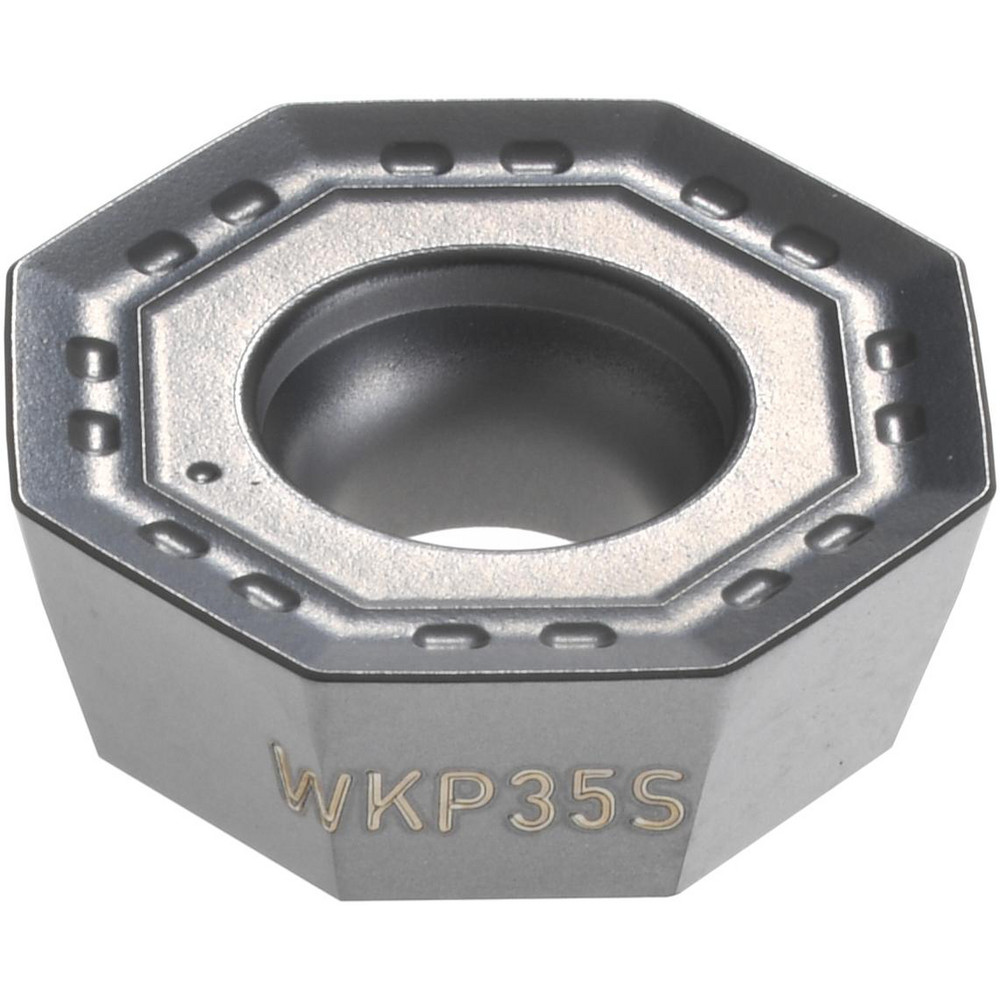

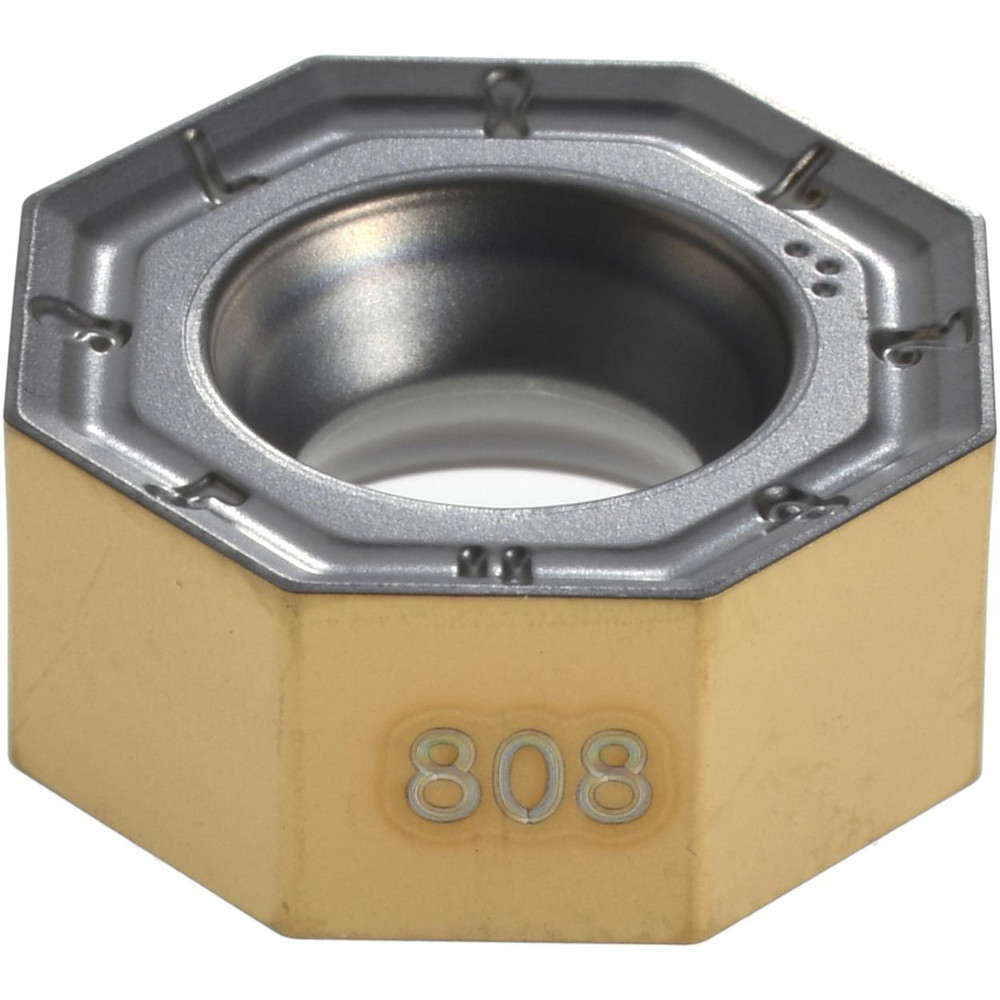

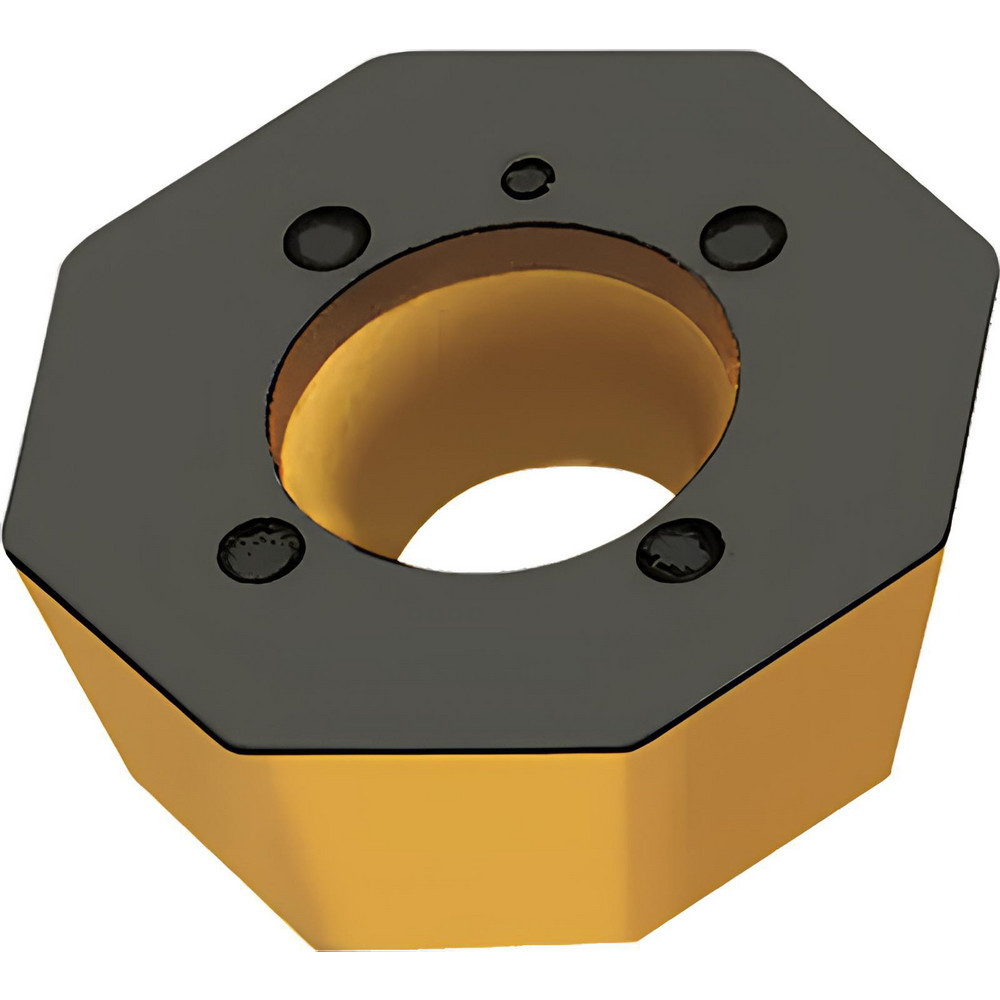

TiCN, Al2O3 & TiCN Finish, 0.2190" Thick, 0.6250" Wide
| Insert Style | ODMT |
|---|---|
| Insert Size | 06 |
| Insert Material | Solid Carbide |
| Insert Shape | Octagon |
| Manufacturer Grade | WKP35S |
| Corner Radius (Decimal Inch) | 0.0310 |
| Number Of Cutting Edges | 8 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2190 |
| Coating/Finish | TiCN; Al2O3 |
| Relief Angle | 15.00 |
| Insert Size Code | 0605 |
| Material Grade | P35; K35 |
| Width (Inch) | 5/8 |
| Length (Inch) | 5/8 |
| Thickness (Inch) | 7/32 |
| Inscribed Circle (Inch) | 5/8 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Thickness Range (Decimal Inch) | 0.2000 to 0.2200 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.6000 to 0.7000 |
| Length Range (Decimal Inch) | 0.6000 to 0.6500 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.2590 |
| Series | ODMT |
| Coating Process | CVD |
| Rake | Positive |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Ansi Code | ODMT0605ZZN-D57 WKP35S |
| Iso Code | ODMT0605ZZN-D57 WKP35S |
| Standards | ISO; ANSI |
| Rake Angle | 10 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | ODMT0605ZZN-D57 |
| Cutter Series Compatibility | F2010; M5004 |
| Chip Breaker | D57 |
| UNSPSC Code | 23291601 |
| Material Application | Cast Iron; Steel |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 135 |
| Width (Decimal Inch - 4 Decimals) | 0.6250 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6250 |
| Country of Origin | Germany |
| MSC Number | MSC# 71723258 |
