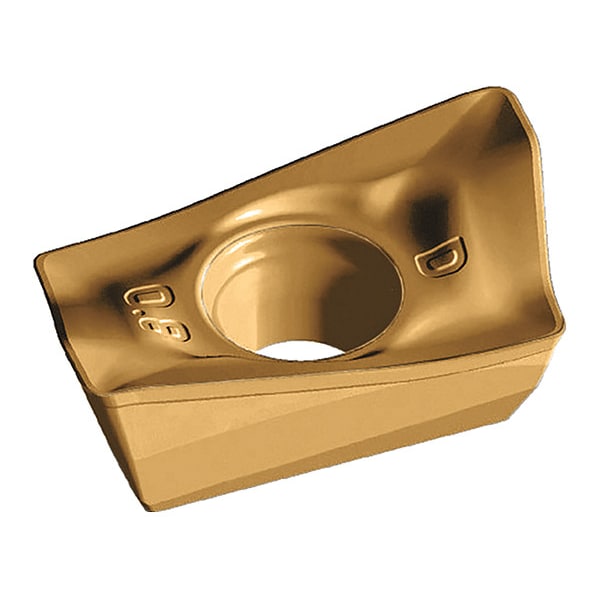

Parallelogram Milling Insert, Rhombic, 0.2850 in, ADMT, 1/32 in
| Item | Parallelogram Milling Insert |
|---|---|
| Insert Shape | Rhombic |
| Insert Style | ADMT |
| Inscribed Circle | 0.285 in |
| Insert Size | 10T308 |
| Chip-Breaker | Yes |
| Corner Radius | 1/32 in |
| Rake | Positive |
| ISO Number | ADMT10T308R-F56 |
| Manufacturer Grade | WSM35S |
| Cutting Edge Length | 11.3 mm |
| Material - Machining | Carbide |
| Coating Process | PVD |
| For Toolholder | Xtra-Tec Milling Cutters |
| Clearance Angle | 15 deg |
| ANSI Code | ADMT10T308R-F56 |
| Thickness | 0.15 in |
| Primary Material Application | High-Temperature Alloys, Stainless Steel |
| Finish - Machining | TiAlN+Al2O3+ |
| Hole Type | With Hole |
| Primary Material Application ISO Code | M, S |
| Shape | Rhombic |
| Included Angle | 85 Degrees |
| Chip-Breaker Code | F56 |
| Package Quantity | 1 |
