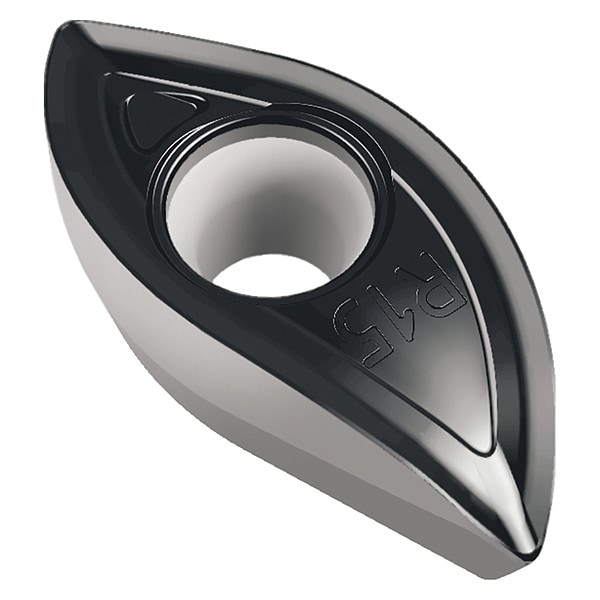

Specialty and Other Milling Insert, 16T3100, XDMT
| Item | Specialty and Other Milling Insert |
|---|---|
| Insert Size | 16T3100 |
| Insert Style | XDMT |
| For Use With | Copy Milling Cutters |
| Rake | Positive |
| Chip-Breaker | Yes |
| ISO Number | XDMT16T3100R-F55 |
| Cutting Direction | Right Hand |
| ANSI Code | XDMT16T3100R-F55 |
| Chip-Breaker Code | F55 |
| Coating Process | CVD |
| Primary Material Application ISO Code | P, K |
| Width | 0.354 in |
| Corner Radius | 0.02 in |
| Finish - Machining | TiCN+Al2O3+ |
| Number of Cutting Edges | 2 |
| Clearance Angle | 15 deg |
| Cutting Edge Length | 15.93 mm |
| Primary Material Application | Cast Iron, Steel |
| Manufacturer Grade | WKP35S |
| Thickness | 0.147 in |
| Material - Machining | Carbide |
| Hole Type | With Hole |
| Package Quantity | 1 |
