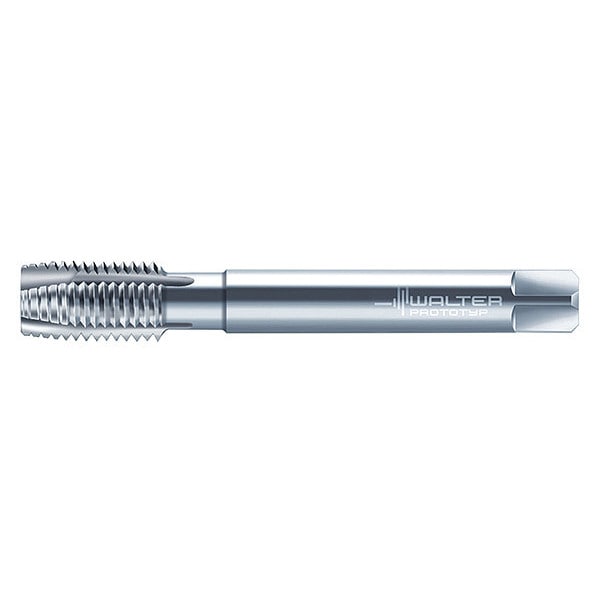

Spiral Point Tap, M18-1, Taper, Metric Fine, 4 Flutes, Uncoated
| Item | Spiral Point Tap |
|---|---|
| Tap Style | Spiral Point |
| Tap Size | M18 |
| Tap Dimension Type | Metric |
| Tap Material | High Speed Steel |
| Tap Chamfer | Taper |
| Overall Length | 110 mm |
| Number of Flutes | 4 |
| Pitch Diameter Limit | 6H |
| Thread Direction | Right Hand |
| Tap Thread Type | Metric Fine |
| List Number | P21360 |
| Thread Length | 24 mm |
| Tap Thread Size | M18-1 |
| Number of Pieces | 1 |
| Shank Dia. | 14 mm |
| Tap Finish | Uncoated |
| Cutting Direction - Machining | Right Hand |
| Drill Bit Size | 17 mm |
| Measurement System | Metric |
| Shank Type - Machining | Straight |
| Extended Neck | Yes |
| Primary Material Application | Steel |
| Secondary Material Application ISO Code | N, O |
| Thread Pitch | 1 mm |
| Spiral Direction | Neutral |
| Thread Limit | 6H |
| Thread Standard | Metric Fine |
| Square Size | 11 mm |
| Primary Material Application ISO Code | P |
| Coolant Fed | Non-Coolant Through |
| Series | Prototex X.Pert P |
| Thread Size | M18x1 |
| Secondary Material Application | Aluminum, Brass, Bronze, Composite, Copper |
| Shank Length | 44 mm |
| Class of Fit | H3 |
| Helix Angle | 0 deg |
| Package Quantity | 1 |
